Switch-Pros RCR-Force 12 Programmable Switch Panel Power System
Switch-Pros RCR-Force 12 Programmable Switch Panel Power System
Switch-Pros RCR-Force 12 Programmable Switch Panel Power System
Switch-Pros RCR-Force 12 Programmable Switch Panel Power System
Switch-Pros RCR-Force 12 Programmable Switch Panel Power System

Switch-Pros RCR-Force 12 Programmable Switch Panel Power System

Switch-Pros RCR-Force 12 Programmable Switch Panel Power System
Switch-Pros RCR-Force 12 Programmable Switch Panel Power System Switch-Pros RCR-Force 12 Programmable Switch Panel Power System Switch-Pros RCR-Force 12 Programmable Switch Panel Power System Switch-Pros RCR-Force 12 Programmable Switch Panel Power System
Write a Review | Q&A
Part # RCR-FORCE12We price match! Call 866-601-5340!
We Price Match
$1,078.00

In stock!
Qualifies for
free shipping!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
Switch-ProsAuthorized
Dealer

Product Resources

Features & Product Details

Features:

  • 12 user-programmable switches
  • RCR-TOUCH® switch cover
  • 150amp capacity with 17 outputs
  • 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
  • 11 rated @ 15A, which can be combined for larger loads
  • 1 Low Side driver switch, rated @ 2A
  • Built-in Bluetooth module
  • Program and operate accessories with phone or tablet
  • System can be used to start vehicle

    •

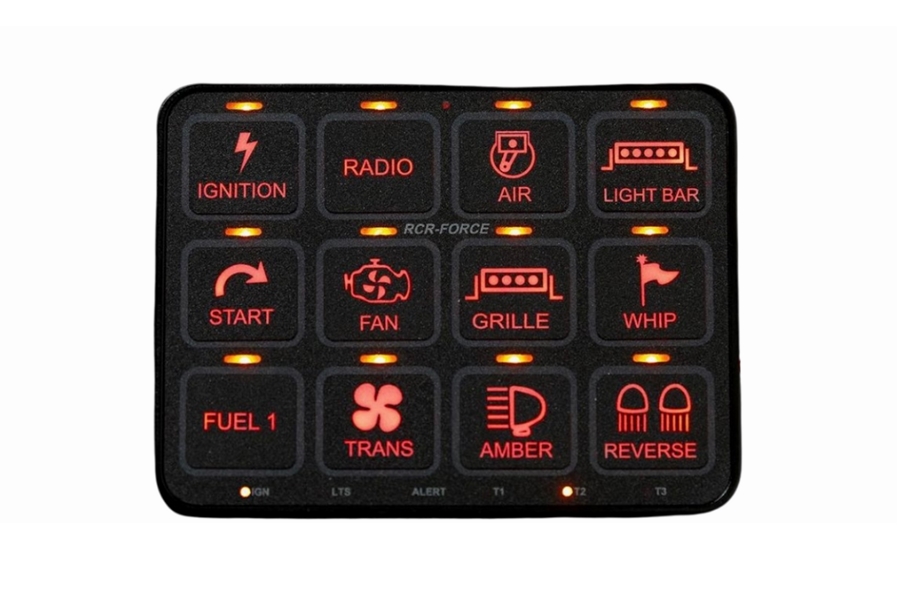

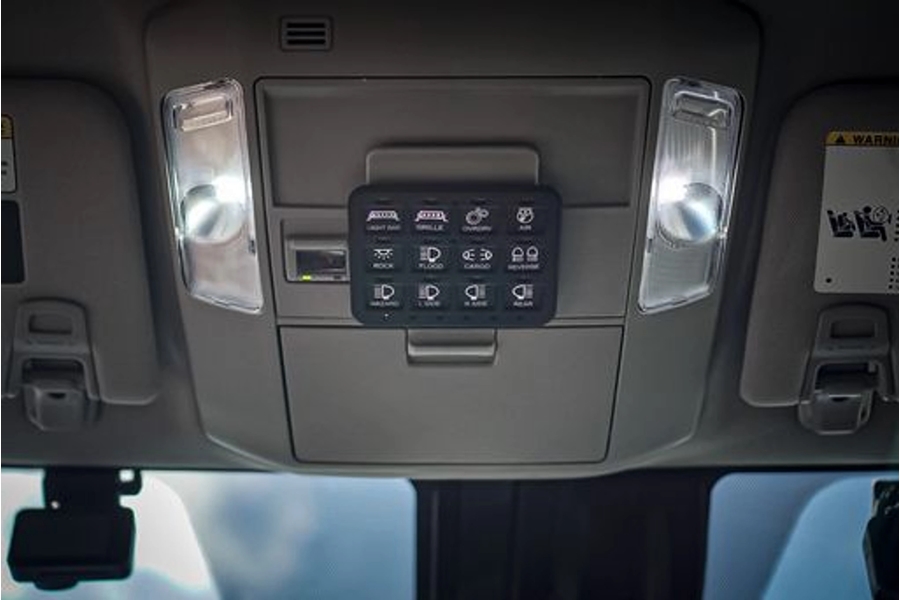

    Switch Panel Specs:

  • RCR-Touch cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
  • Switch Panel enclosure measures 4” L x 3” W x .375” H
  • Splash proof with Polycarbonate overlay faceplate
  • Pre-machined for factory-look installation
  • RGB backlighting
  • Orange LED switch indicators
  • 6 Programmable LED Status indicators

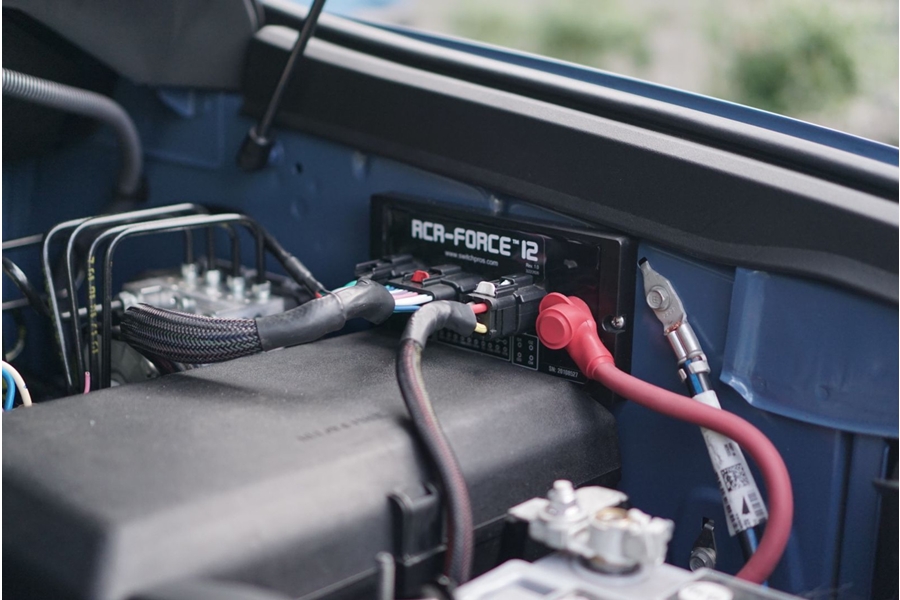

    • Power Module Specs:

  • 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
  • 150A maximum rating
  • 7”L x 3.5”W x .5”H (excluding connectors)
  • Waterproof and Solid State
  • Underhood rated 125° to -40°C
  • LED Ignition Input Status Indicator

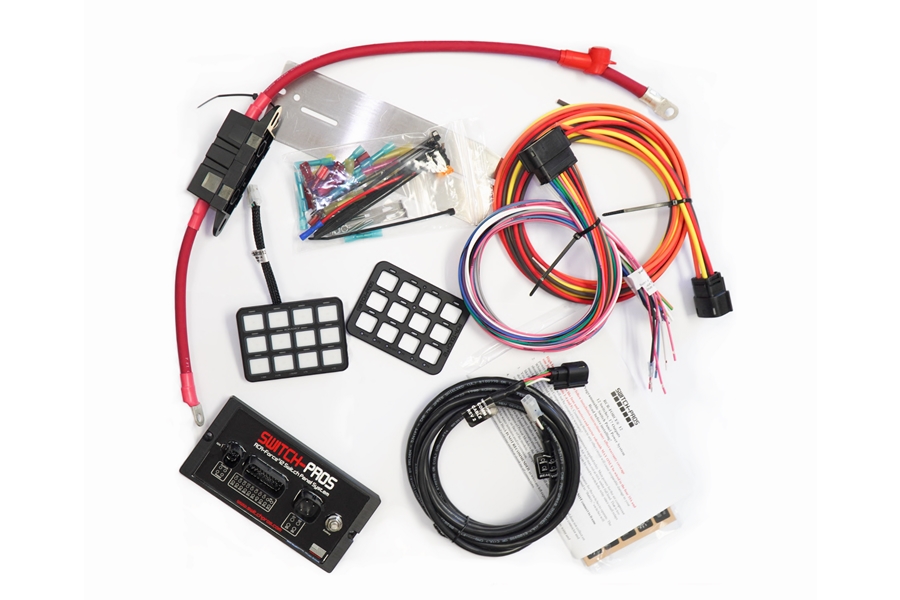

    • Kit Also Includes:

  • 11’ of Communication Cable between Switch Panel and Power Module
  • Power Cable with 150A inline fuse
  • 125 User Selectable Legends included (Horizontal orientation)
  • Installation brackets and hardware
  • Color Coded Output wires
  • Wire harness with waterproof, sealed automotive grade connectors


    • Switches Can Be Programmed For:

  • Preset Dimming function WITH MEMORY (100% to 10% brightness)
  • Master Mode, with ability to turn multiple outputs On AND Off with one touch
  • Every Master Switch can control up to 4 other switch outputs
  • On-On-Off logic
  • Touch Panel lockout
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Automatic Power-Up upon vehicle start up
  • Safety Lockout for specific switches
  • Time Delay off


    • Additional Features:

  • No bulky relay box
  • RGB Backlighting with unlimited color options
  • Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Sleep Mode for minimal power consumption
  • Color coded output wires
  • Daisy Chain up to 3 Switch Panels to One Power Module
  • Free app for iOs and Android platforms
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • LED Input Status Indicators for easy troubleshooting
  • Battery Voltage Readout on App screen

    • Product Video

    Specifications

    Brand: Switch-Pros
    Capacity: 12 Switches
    Color: Black
    Includes Switches: Yes
    Switch Illumination: Orange LED
    Type: Switch Panel
    Mfgr. Warranty: 2 Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
