Rock Jock Currectlync Ram Assist Tie Rod Clamp Bracket - 1.625in
Rock Jock Currectlync Ram Assist Tie Rod Clamp Bracket - 1.625in
Rock Jock Currectlync Ram Assist Tie Rod Clamp Bracket - 1.625in
Rock Jock Currectlync Ram Assist Tie Rod Clamp Bracket - 1.625in

Rock Jock Currectlync Ram Assist Tie Rod Clamp Bracket - 1.625in

Write a Review | Q&A
Part # RJ-441001-101We price match! Call 866-601-5340!
$109.00
+$ Oversize Shipping Surcharge

Out of Stock. Average time to ship: 3-5 business days
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

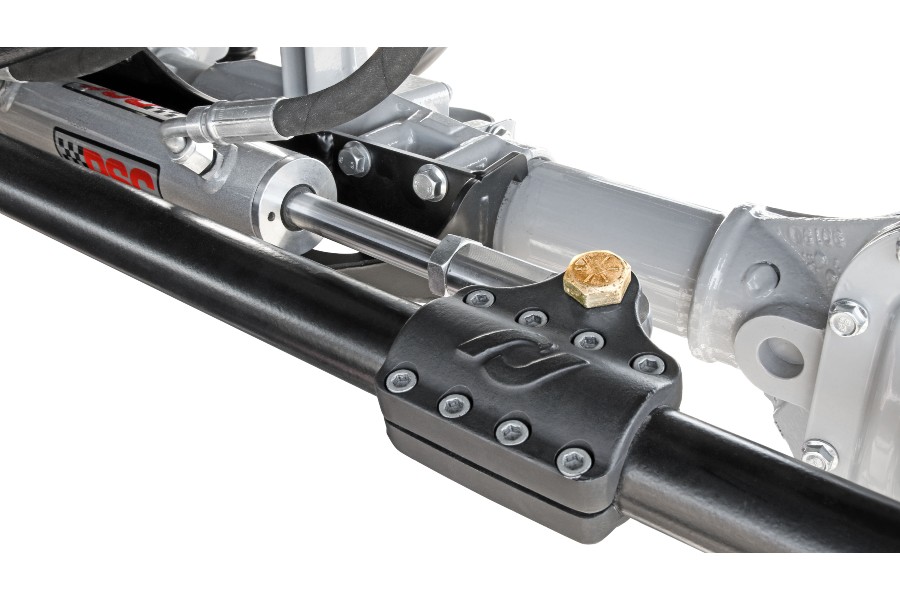

The RockJock Ram Assist Tie Rod Clamp is a trick piece! In our quest to make installing ram assist steering on modern Jeeps easy, we’ve developed several components that provide easy to install solutions to get your ram mounted and get you on the trail!

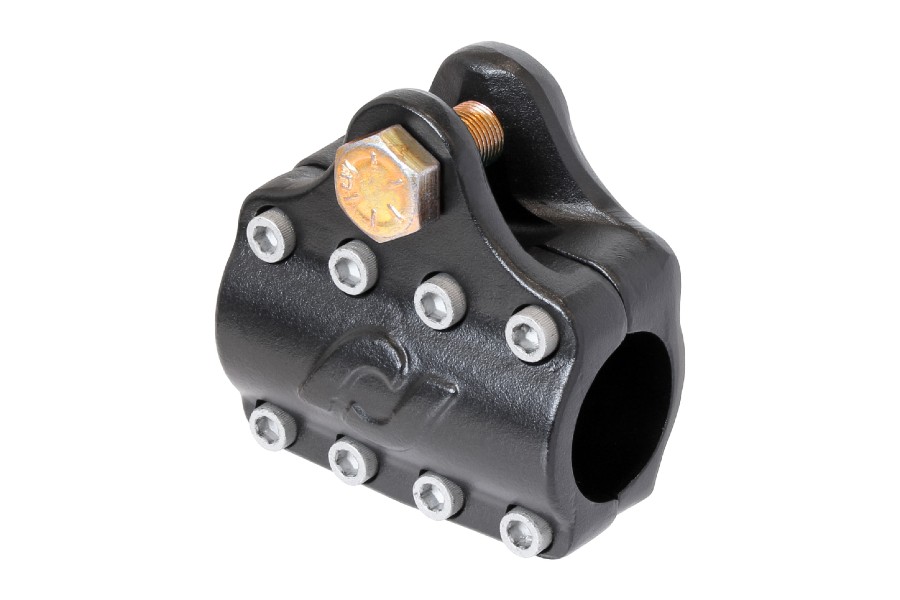

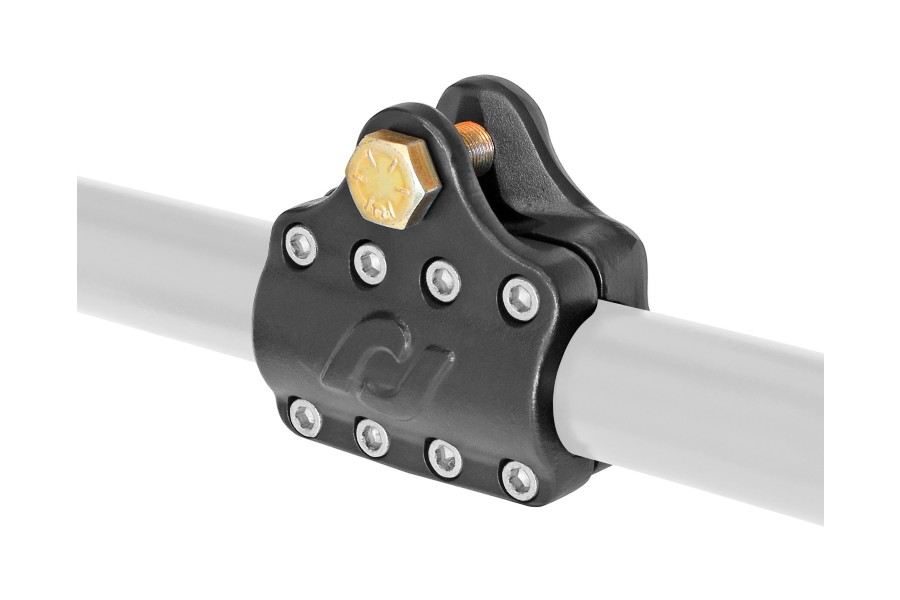

Forged chromoly steel clamp features 2 mating CNC machined halves for ease of installation. Common clamps on the market require you to remove and dismantle your tie rod to allow the clamp to be slid onto the tie rod tube. The 2 halves of the RockJock clamp simply install onto the tie rod in your vehicle as-is, and then the clamping bolts tighten it up!

This clamp is specifically designed to work on common 42mm or 1 5/8” O.D. tie rod tubes and can be used universally in virtually any application (high-steer/low steer, stock height or lifted).
Installation requires no modifications or machining to your existing tie rod. Finish is gloss black powder coat and all necessary hardware is included.



Kit Fits:

  • 42mm Diameter Tie Rod Tubes
  • 1 5/8” Diameter Tie Rod Tubes
  •

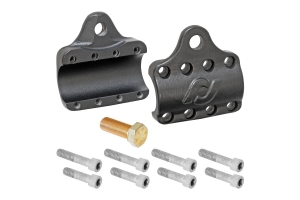

    Kit Includes:

  • (2) Tie Rod Clamp Halves
  • (8) 5/16” Allen Head Clamp Bolts
  • (1) 5/8” Ram Mounting Bolt
  • (1) 2ml Tube of Red Threadlocker
  •

    Fitment Specs.:

  • Clamps to 42mm or 1 5/8” O.D. Tie Rod Tubes
  • Features a machined 3/4" gap at the top where the ram installs into the clamp
  • Ram bolt is 5/8” to accommodate the rod end on common steering rams
  • Use universally with high or low steer configurations and any amount of lift
  •

    Component Specs.:

  • Material = forged chromoly steel
  • Large machined thru-hole = accepts 42mm or 1 5/8” O.D. tie rod tubes
  • Machined ram mounting slot = 3/4”
  • Overall Length = 4”
  • Overall Height = 4 1/8”
  • Overall Width = 2 3/16”
  • Ram bolt CL to Tie Rod tube CL = 1 1/2"
  •

    Notes:

  • Due to clamp’s universal design, it can be installed in a variety of applications. For your own safety, always cycle your steering and then articulate your vehicle’s suspension and cycle your steering again to ensure clamp has ample clearance to move freely and not get caught or bound up on other components that could possibly lock up your steering!
  • Specifications

    Brand: RockJock
    Color: Black
    Install Method: Bolt On
    Material: Steel
    Qty: 1
    Size: 1 5/8 Diameter
    Type: Tie Rod Clamp
    Mfgr. Warranty: 2 Year Warranty
    Condition: New Product
    Return Policy:
    Standard
