RockJock's Pro Edition Johnny Joint Suspension System for JT Gladiators with the EcoDiesel engine provides 3 1/2 inches of lift and allows for efficient clearance of up to 37 in. tall tires (larger tires will require aftermarket fenders and minor trimming). This kit is comprised of only the highest end components in the areas of strength, fit, finish, function, and the engineering to back them, delivering a smooth, comfortable on-road ride with the ultimate in off-road capability – all in a complete, direct bolt-on kit. This kit is designed specifically for the serious off-roader who not only wants to lift their vehicle and install big tires, but also wants to tackle the toughest trails in the country with confidence and ease.
Premium shock packages from Fox and King are offered as options so that you can select the shock brand and performance level that matches your driving style. We always recommend adjustable shocks, as they allow the ride to be tuned to match the terrain and driver’s preference.

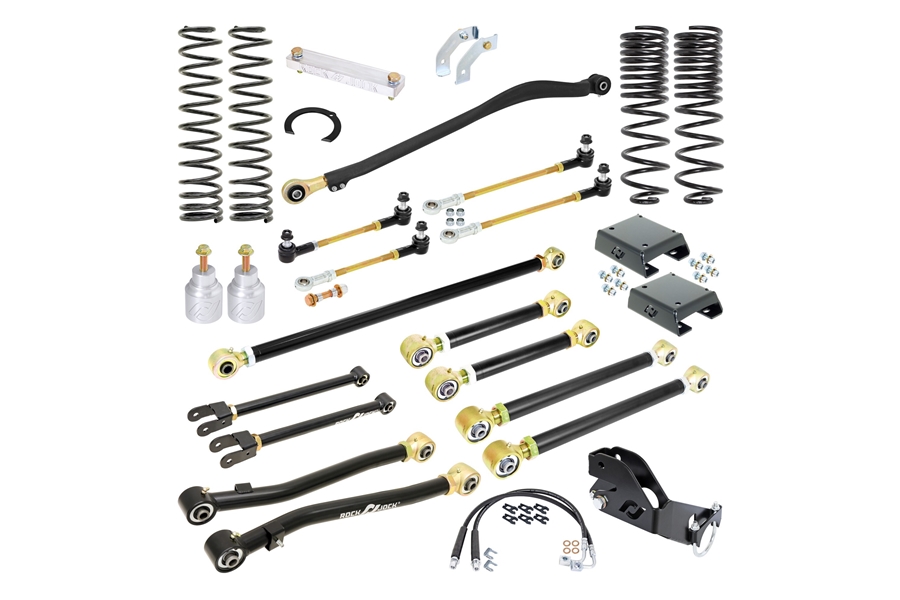

Kit Includes:
3.5 in. Lift Dual-Rate Front And Rear Springs
Front Coil Spring Shim
8 Johnny Joint Adjustable Control Arms
Johnny Joint Adjustable Front and Rear Trac Bars
Front and Rear Bump Stops
Front Brake Line Relocation Brackets
Extended Rear Brake Hose Kit
Driveshaft Carrier Bearing Drop Spacer
All Required Hardware
Kit Features:
RockJock Spec. Dual-Rate Springs - Feature a soft initial rate that absorbs small bumps and trail chop, to deliver a smooth, comfortable ride, while a firmer secondary rate helps soak up larger impacts and reduce bottoming. A key differentiator of RockJock spec. dual-rate springs is the positioning of the crossover point between the initial and secondary spring rates so that a portion of the softer initial rate is available and active at ride height before crossing over to the firmer secondary rate deeper into the travel.
Bump Stop Spacers - Heavy duty bump stop extensions stand up to hard use while keeping the tires off of the shiny new JT fenders! The front bump stops in this kit are unique to the diesel vehicles.
Johnny Joint Control Arms – Heavy duty upper and lower control arms feature RockJock Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems.
Johnny Joint Trac Bars - Heavy duty adjustable length Trac Bars included are our forged chromoly, organically shaped front bar and our chromoly rear bar. Our Trac Bars combine a precise fit with increased strength and adjustable length to perfectly center front and rear axles under the vehicle. High-articulation Johnny Joint ends provide maximum durability and suspension flex.
Lift Details - The RockJock Suspension System provides 3.5 in. of suspension lift.
Actual lift height may vary due to factory build specs. and added equipment and accessories.
Tire Fitment:
37 in. tires – no inner fender modification necessary
38 in. or larger tires – aftermarket high-clearance fenders suggested/required
Wheel Backspace:
4.5 in. wheel backspace is recommended for all tire sizes
