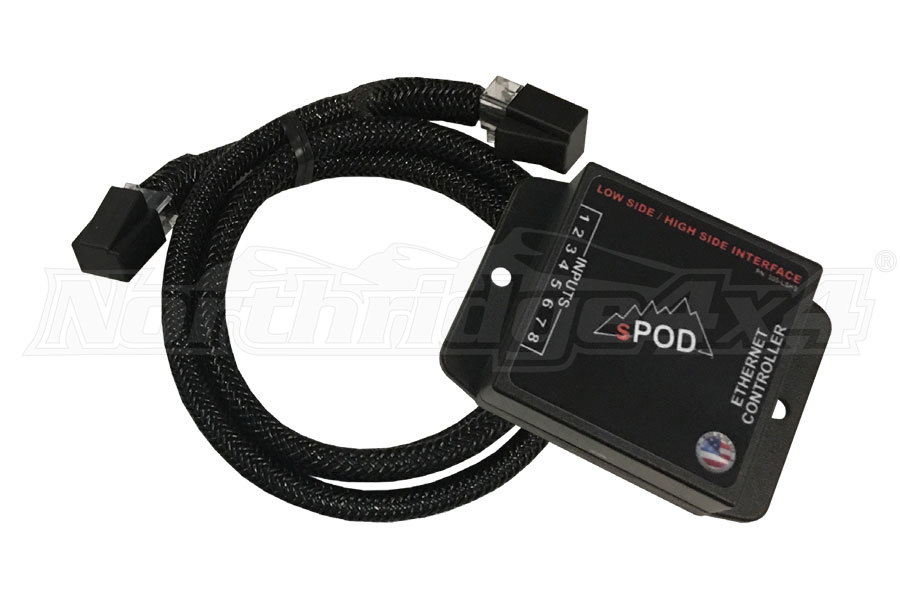

Low Side High Side interface allows our current 8-circuit SE systems the possibility of being controlled by external switches. This expands the control and capabilities of the Source SE’s operations. The LSHS simplifies the installation of remote switches. Inaddition, the LSHS reduces the installation and labor time when installing systems such as an Alpine head unit (KAC-001).

The LSHS must be used in conjunction with our SourceSE and one ofour 8-circuit controllers (Touchscreen, HD or switch panel).

• Removable dust cover with port idenitifications

• Universal mount

• Two ethernet ports for daisy-chaining multiple LSHS or controllers together

• Selectable low side or high side inputs (ground or positive) with a simple, 2-pin jumper

• 8-position input terminal block used for easy connectivity

• 10’ Ethernet cable (additional optional lengths: 3’, 15’ and 25’)

• Your own Ethernet cable may be used - must be a straight through cable, not a crossover cable

• Dimensions: 1.920” L x 2.696” W x 1.065” H

EXTERNAL CONTROLLER OPTIONS

• Third party switches

• Computers, Arduino, Raspberry Pi

• Alpine Audio system’s KAC-001 head unit controller

• Alarm systems, sending units, sensors, thermostats, fan controllers

• Plus many more devices that utilize ground or positive triggers ranging from 3.3VDC to 24VDC
