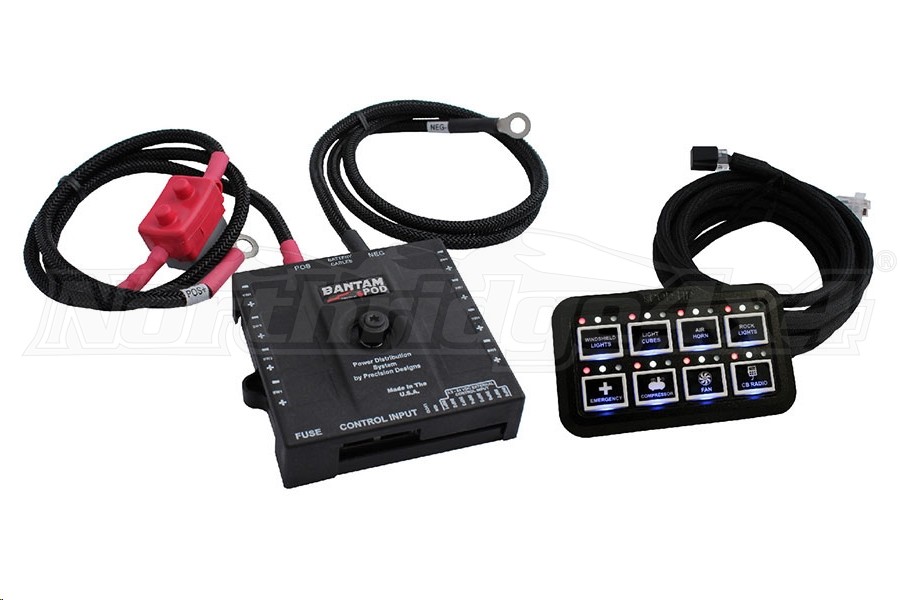

sPOD Bantam w/HD Panel and 36in Battery Cables
This item is no longer available.
Universal part

Product Resources

Features & Product Details

Check out the Northridge Nation Article: sPOD Bantam for your Jeep JL

The Bantam™ will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the Bantam™’s small footprint, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.

Features:

• High current capabilities (30 amps per circuit) with a maximum 100 amp capacity.

• Operates on 12VDC or 24VDC.

• Small footprint: 4.0”W x 4.0”L x 1.125”T (See side by side comparison to our Original 8-circuit system).

• Programmable functions for: Dimming, Strobe, Flash & Momentary.

• Switch linking (create a master switch to control other switches within the same panel).

• Flexibility to add multiple controller types such as: Touchscren, HD smart controller, hard rocker switches and wirelessly using the Bantam™ app on a smart phone, tablet or any Bluetooth LE enabled device.

• Expandable up to 32 circuits that can be controlled with single touchscreen, or infinite number of circuits with use of additional controllers, limited only by the supplied power source.

• Ethernet cable interconnect with a 25’ foot distance limitation.

• Fully programmable via free Bantam™ app.

• Current monitoring (via touchscreen and app).

• Protection against: Over current, over heat, short, reverse polarity protection, and field collapse.

• Low voltage detection circuit that will monitor battery voltage and shut system, and all accessories attached to it, off when battery voltage drops below 11.2VDC.

• Ignition control for two circuits (switches 1 and 2).

• Safety lock-out for two circuits (switches 1 and 2).

• 16-position terminal block for end user connections (both ground and power).

• Removable dust cover with spots for legends and port identifications.

• Universal mount.

• 8-position input terminal block for controlling outputs (3.3VDC – 24VDC inputs).

External Controller Options:

• Third party switches

• Computers

• Arduino

• Raspberry Pi

• Alpine Audio systems KAC-001 head unit controller

• Sensors, thermostats, pressure switches, fan controllers & more

Specifications

Brand: sPOD
Color: Black
Type: Switch Power Distribution
Wiring Included: Yes
Mfgr. Warranty: 1 Year Limited
Condition: New Product
Return Policy:
Standard
