3-3.5in Lifts >BDS Suspension 3in Lift Kit w/ NX2 Shocks and Fixed Links - JK 2012+ 4Dr Rubicon

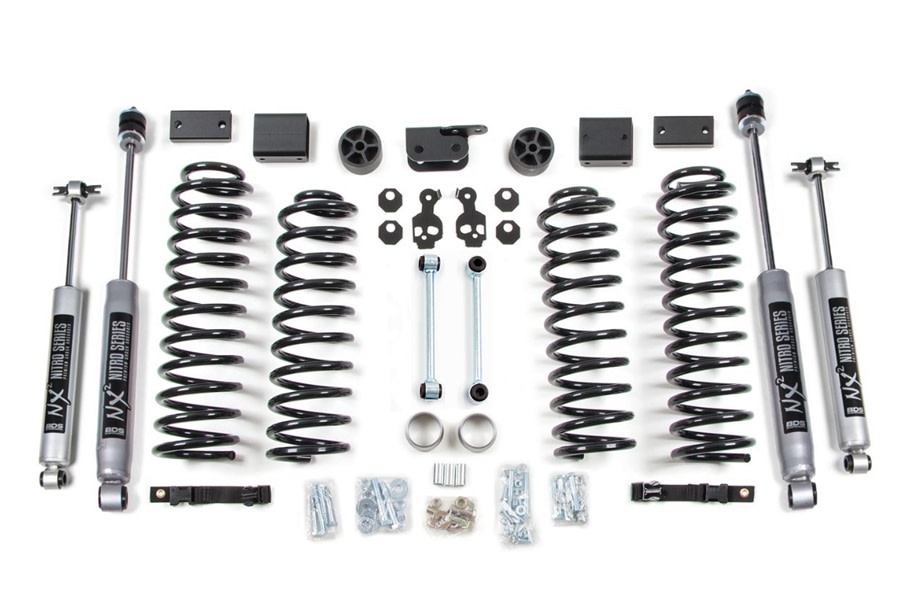

BDS Suspension 3in Lift Kit w/ NX2 Shocks and Fixed Links

JK 2012+ 4Dr Rubicon

INCLUDED IN PRICE

Box Kit $181.95

1 x BDS Suspension 3in Component Box Kit - JK Rubicon
BDS014311

Out of Stock. Average time to ship: 1-3 business days
Front Coil Springs $152.95

1 x BDS Suspension Front Coil Springs, Pair - JK
BDS034311

Out of Stock. Average time to ship: 1-3 business days
Rear Coil Springs $143.95

1 x BDS Suspension Rear Coil Springs, Pair - JK 2dr 4in JK 4dr 3in
BDS034319

Out of Stock. Average time to ship: 1-3 business days
Exhaust Extension Kit $57.95

1 x BDS Suspension Exhaust Extension Kit - JK 2012+
BDS124314

Only 3 left!
Front Shocks $99.90

2x BDS Suspension NX2 Nitro Series Premium Front Shock Absorber, Single 3-4.5in Lift - JK
BDS85700

In stock!
Rear Shocks $99.90

2x BDS Suspension NX2 Nitro Series Premium Rear Shock Absorber, 2-3in Lift - JK
BDS85951

Only 2 left!

$736.60

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # 1404H

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

Upgrade the ride and style of your 2012-2018 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes 3" Pro-Ride coil springs capable of full coil bind and 2" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3" lift kit with your specially tuned NX2 nitro series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Features & Benefits

ProRide coil springs offer improved ride quality and more articulation

Sway bar quicker disconnects and extended rear link for improved offroad flex

Rear track bar bracket repositions rear axle under vehicle

Lower cam locks to correct caster for alignment

NX2 gas shocks for improved damping

Allows clearance for 35" tires

Recommended Tires & Wheels

35 x 12.5 with 16 x 8 and 4.5 in. Backspace

Shocks

NX2 Nitro Series

Nitrogen-charged

Twin-tube design

10-stage velocity-sensitive valving

Dual-welded ends for increased strength

1-3/8-inch high-flow piston

Self-lubricating seals

Silver powder coat finish

Sway Bar Links

Fixed Links

Required for use on Rubicon models with electronic disconnect.

Improves handling with proper sway bar operating angle

Heavy-duty steel construction with zinc finish

Polyurethane hourglass bushings for long life and quiet operation

Notes

Exhaust modification may be required.

This kit is FMVSS No.126 Compliant

This kit is right-hand drive compatible. Follow right-hand drive installation instructions when installing this kit on a right-hand drive vehicle.

If using these rear sway bar links, the sway bar drop will not need to be installed. This also requires a wheel with 4.5" backspacing or less for tire clearance.
