Clayton Offroad 2.5in Overland Plus Lift Kit  - JL 392
Clayton Offroad 2.5in Overland Plus Lift Kit  - JL 392
Clayton Offroad 2.5in Overland Plus Lift Kit  - JL 392
Clayton Offroad 2.5in Overland Plus Lift Kit  - JL 392
Clayton Offroad 2.5in Overland Plus Lift Kit  - JL 392
Clayton Offroad 2.5in Overland Plus Lift Kit  - JL 392

Clayton Offroad 2.5in Overland Plus Lift Kit

JL 392

INCLUDED IN PRICE
You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # 3009325We price match! Call 866-601-5340!
We Price Match
ANY QUESTIONS?

Features & Product Details

Upgrade your Jeep Wrangler JL with our Overland+ Short Arm Lift Kit. Designed to deliver a smooth on-road ride while enhancing off-road performance, this complete suspension system includes 8 fully adjustable control arms featuring GIIRO Joint bushings for maximum comfort and articulation.

Whether hitting the highway or the trails, this short arm suspension kit provides a smooth and quiet ride plus all the adjustability needed for proper alignment and axle positioning.

Why Choose This Kit?

  • Smooth, Quiet Ride with Extreme Flex: GIIRO joints isolate road noise and vibrations while providing superior off-road articulation.
  • Maintenance-Free Design: GIIRO joints are self-lubricating, self-centering, and maintenance-free, eliminating the need for greasing.
  • Premium Performance: Built for Jeep owners who want a suspension system that performs both on and off the trail without sacrificing comfort.

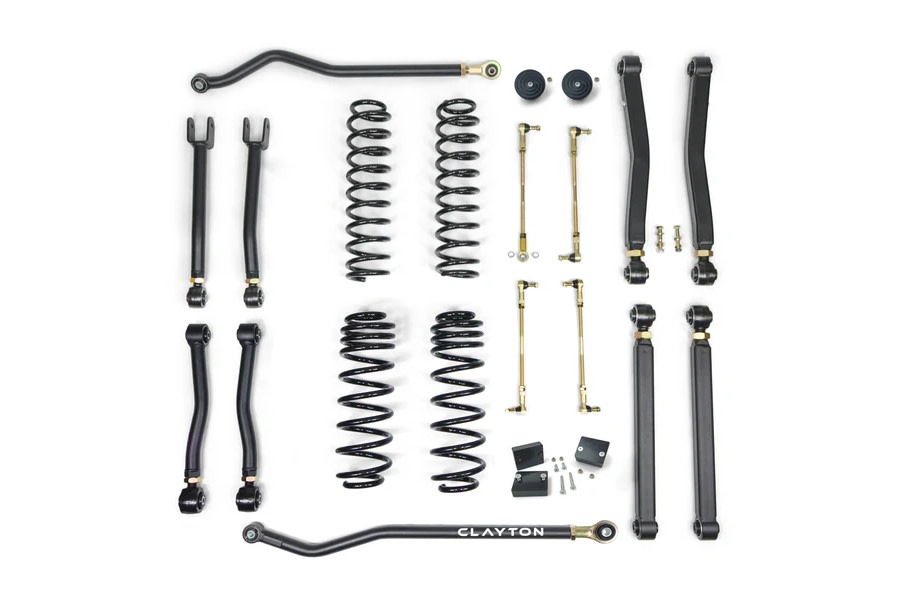

  • What’s Included:

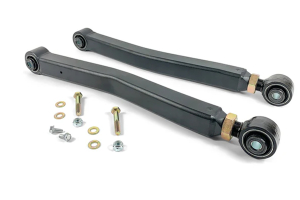

  • 8 Fully Adjustable Control Arms – Featuring dual-durometer GIIRO bushings.

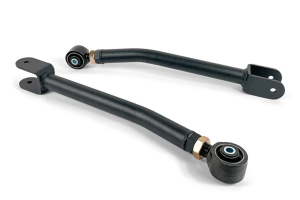

  • Premium Adjustable Front and Rear Track Bars – Crafted from 1 3/8” x 5/16” DOM tubing for added strength and stability.

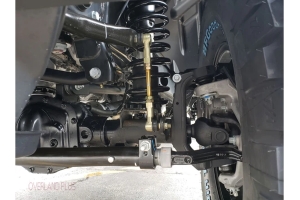

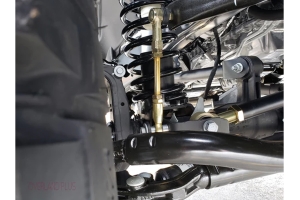

  • Adjustable Front and Rear Sway Bar Links – Optimized for articulation and handling.
  • Coil Springs – Powder-coated with SealKor zinc-rich finish to help prevent rust and corrosion.
  • Fitment Notes:

  • 1.5” Lift: Ideal for fitting 35” tires on a Rubicon.
  • 2.5” Lift: Ideal for fitting 37” tires on a Rubicon.
  • 3.5” Lift: Ideal for fitting 39” tires on a Rubicon.
  • Important 392 Lift Height Notes:

  • 392 XR models come equipped from the factory with a 1.5" lift, while standard 392 models come equipped with a 2" lift.
  • The recommended tire sizes mentioned above still stand; however, see notes below for the amount of height gained for both versions:
  • 1.5" Lift: Will net approximately 1/2" of lift on an XR, and approximately no net gain on a standard 392
  • 2.5" Lift: Will net approximately 1.5" of lift on an XR, and approximately 1" of lift on a standard 392
  • 3.5" Lift: Will net approximately 2.5" of lift on an XR, and approximately 2" of lift on a standard 392
  • Optional HD Rear Coil Springs are available for anybody running over 300 lbs of weight from gear and accessories. HD rear springs will accommodate approximately 500-600 lbs of gear before sitting below level.

    *The amount of height gained can vary from vehicle to vehicle due to factors like vehicle weight or after-market accessories, so fitment notes are meant to act as a guideline rather than provide absolute values.

    MADE IN THE USA and backed by a Lifetime Warranty*, this kit provides everything you need for exceptional on-road comfort and extreme off-road performance.

    Upgrade your Jeep today and enjoy the best of both worlds!

    Specifications

    Brand: Clayton
    Kit Package: Yes
    Mfgr. Warranty: Lifetime Warranty
    Condition: New Product
    Return Policy:
    Standard
