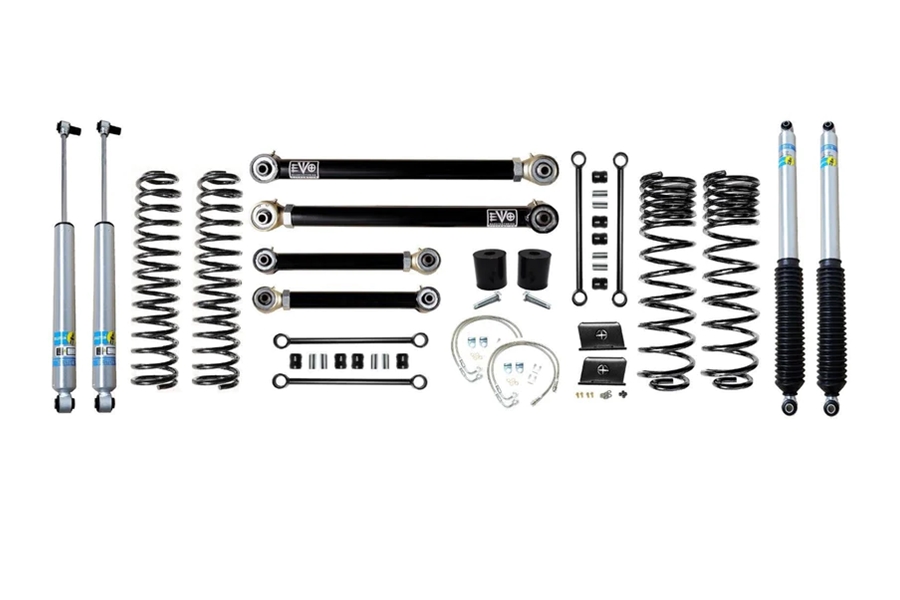

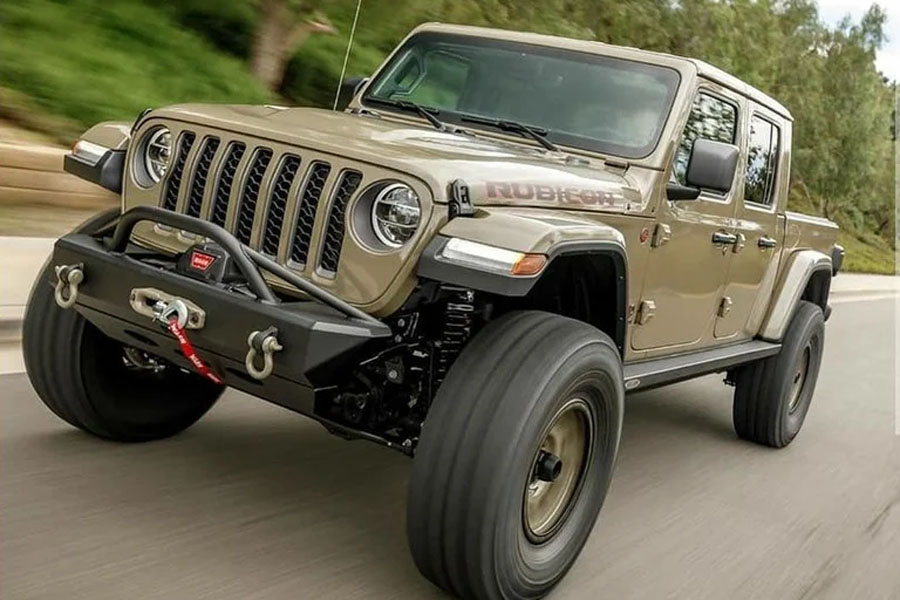

Evo Manufacturing 2.5in Enforcer Stage 3 Lift Kit w/ Bilstein Shocks
JT Diesel
Product Resources
Features & Product Details
The EVO MFG 2.5” Jeep Gladiator JT Diesel Enforcer Suspension Systems lift and level your 2020+ Jeep Gladiator JT 2.5”s. The JT Enforcer kits are specifically designed and engineered to lift your Gladiator and maintain a performance spring rate, smooth ride quality all while retaining tow capacities. These kits allow for use of your choice of any aftermarket 2.5-5” lift shock or use of our EVO SPEC tuned 2.5” Remote Reservoir King Shocks. These kits come with a set of 2.5” lift springs specific to the Jeep Gladiator Diesel and will remove most of the factory rake making you stock truck level.
Overland System:
The difference with EVO MFG Enforcer Overland systems vs EVO MFG Enforcer systems is the use of front Overland Control Arm Brackets. When lifting your vehicle your control arms at ride height have a steeper angle towards the floor which can have some negative effect/chop in ride quality. With the use of the included Overland Control Arm brackets we relocate the front control arm mounting locations at the frame. In doing this when lifted we maintain factory flatter control arm angles and while minimal, we alleviate much of the chop associated with lifting a Jeep giving even better and more improved ride quality. Also, in the use of Overland Drop Brackets we are able to engineer more performance into the front suspension to improve braking and driveline angles through suspension cycle. Both kits drive very well, the Overland Kits are better suited for less hard off-road crawling and more light off road and on road use.
Installation
The EVO MFG 2.5" JT Enforcer Kits are easy to install using normal tools. No drilling or cutting. They require no driveshaft or exhaust modifications. Simple Bolt on installation. EVO MFG JT Enforcer kits are available in multiple configurations to suit your needs and budget and are upgradable down the road.
Stage 1 Kits
includes all the foundational parts to lift your JT 2.5”s.
Stage 2 Kits
includes Stage 1 components as well as EVO MFG Enforcer Front Lower Adjustable Control Arms to allow for caster adjustments. Stage 1 Overland or Stage 2 is the recommended minimum kit for all currently unmodified/stock suspension JLUs.
Stage 3 Kits
includes stage 2 components as well as EVO MFG Enforcer rear upper adjustable control arms for rear pinion angle adjustment.
Stage 4 Kits
includes stages 1 components with all 8 EVO MFG Enforcer control arms for full front and rear axle adjustments.
All included Enforcer Arms use only rebuildable free articulating spherical bearings on all ends of each arm giving restriction free travel and articulation. The included Enforcer arms are manufactured from large diameter, thick DOM Steel Tubing for ultimate in strength and longevity both on and off the trail. These kits require wheel spacers or aftermarket wheels with smaller backspacing.
Note: Mojave - Bilstein Shocks not compatible. King Shocks will work.
