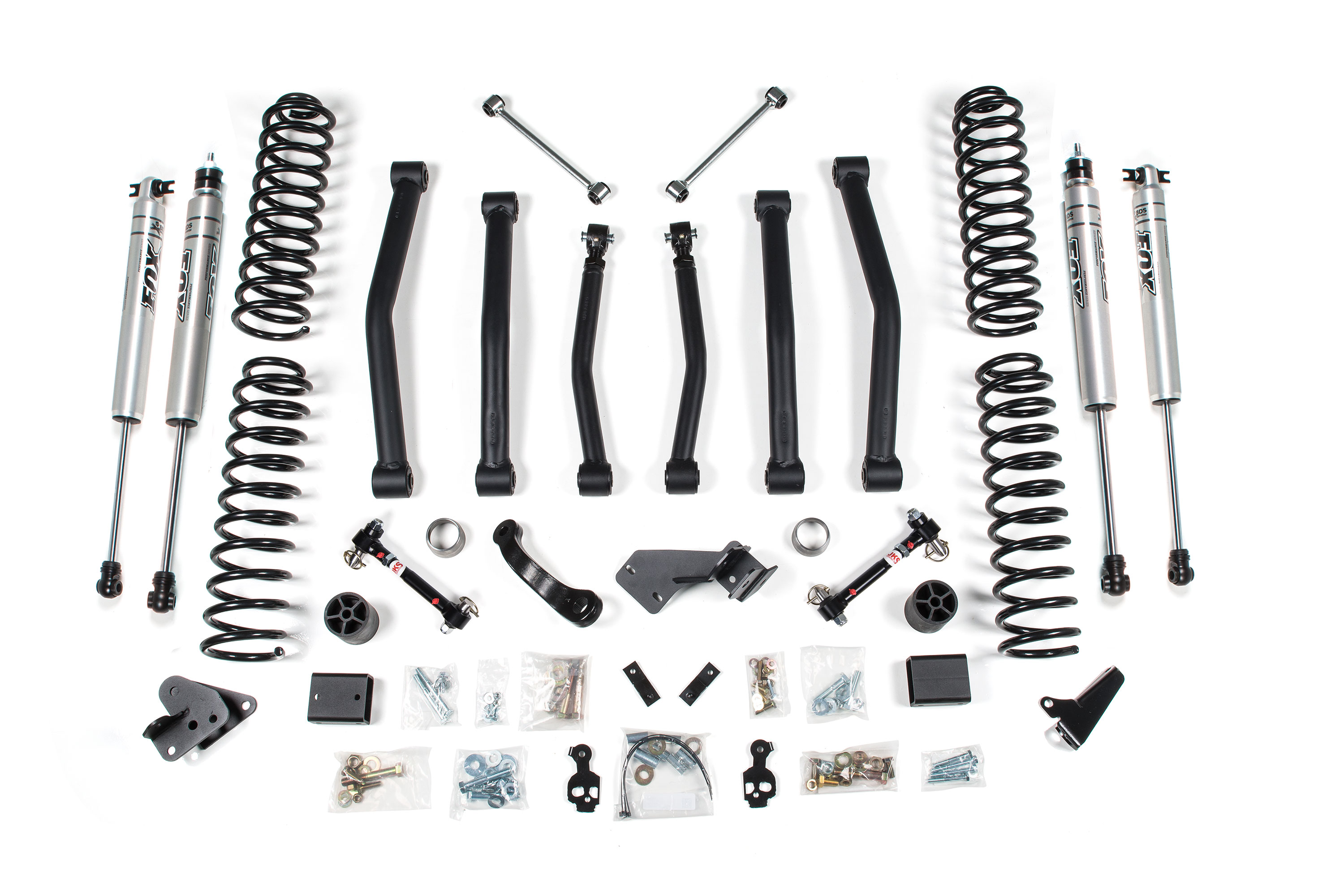

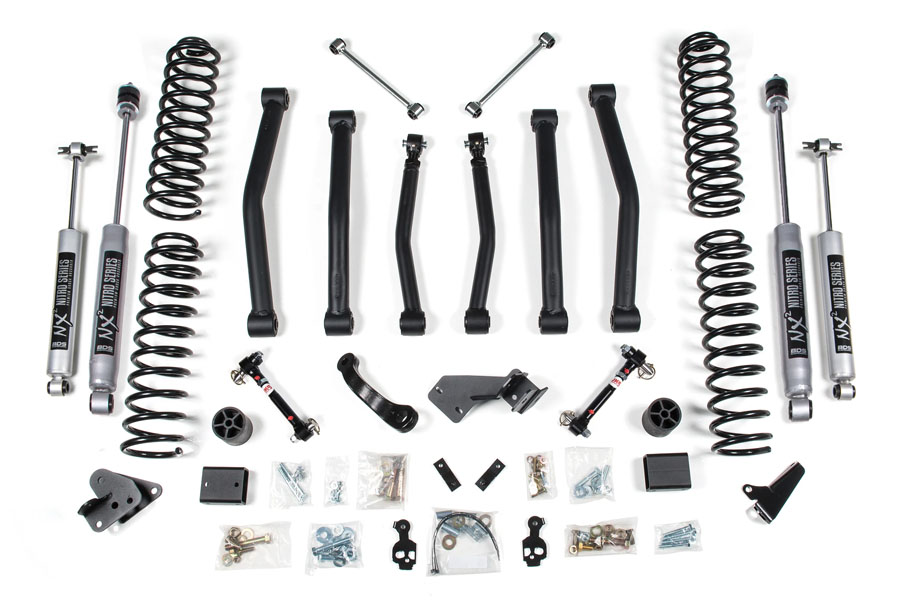

BDS Suspension 4in Suspension Lift Kit

When it's time to really improve the off-road capabilities in your vehicle, then you will be pleased with the BDS 4"Suspension Lift Kit. This suspension kit has been designed to be capable of full coil bind with 3" bump stop extensions to help control compression travel. Because of the added wheel travel, there are brake line relocation brackets that will be included.

Also included are front and rear fixed length lower control arms, and rear upper adjustable control arms which will properly control the front and rear axle positions. These control arms will come standard with OE grade rubber bushings.

To correct the steering geometry, a BDS front track bar relocation bracket is included with a dropped pitman arm. Fixed sway bar links are included for those equipped with the factory disconnect system. For those who are equipped with the factory disconnect system you can choose from the BDS Ultimate Sway Bar Disconnects or the JKS Quicker Disconnects. Other components include the BDS exhaust extensions to provide proper clearance of the front driveshaft at full droop.

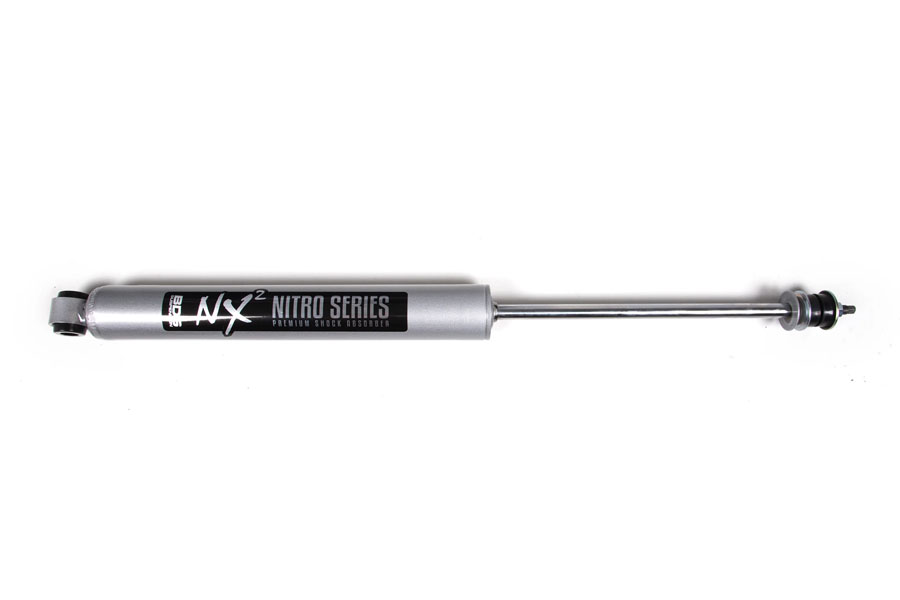

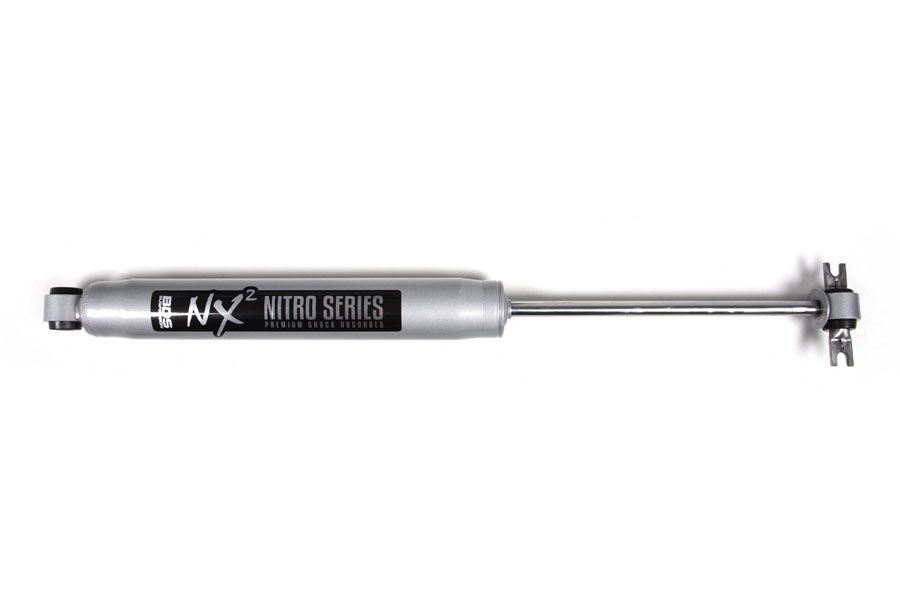

For the rear, an axle mounted rear track bar relocation bracket that has a built-in support gusset that ties into the bump stop pad. This is a reinforced design that promoted better strength and longevity when compared to the OE unit. The shock absorbers will also be included to make this a complete kit.

Once installed, users will be able to run a 37" X 12.50" on a 16 X 8" wheel with a 4-1/2" backspacing.
