sPOD Add-On HD Switch Panel For 8 Circuit Systems
sPOD Add-On HD Switch Panel For 8 Circuit Systems
sPOD Add-On HD Switch Panel For 8 Circuit Systems
sPOD Add-On HD Switch Panel For 8 Circuit Systems
sPOD Add-On HD Switch Panel For 8 Circuit Systems

sPOD Add-On HD Switch Panel For 8 Circuit Systems

sPOD Add-On HD Switch Panel For 8 Circuit Systems
sPOD Add-On HD Switch Panel For 8 Circuit Systems sPOD Add-On HD Switch Panel For 8 Circuit Systems sPOD Add-On HD Switch Panel For 8 Circuit Systems sPOD Add-On HD Switch Panel For 8 Circuit Systems sPOD Add-On HD Switch Panel For 8 Circuit Systems
sPOD Add-On HD Switch Panel For 8 Circuit Systems
Write a Review | Q&A
Part # 8800HDADDWe price match! Call 866-601-5340!
We Price Match
$350.00

Ships from Mfg. Available to ship: 3-5 business days
Qualifies for
free shipping!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
sPODAuthorized
Dealer

Product Resources

 Installation Instructions

Features & Product Details

Add-On HD Switch Panel For 8 Circuit Systems.

What's Included?

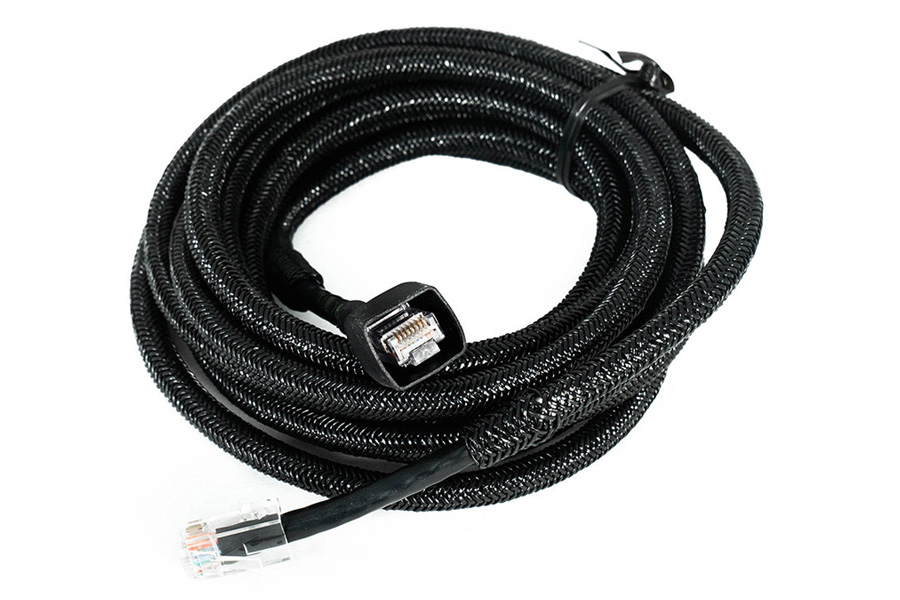

  • 10 Foot Ethernet control cable
  • HD Switch Panel w/ mounting bracket (see picture) and necessary hardware (other universal mounting options are available)
  • Legends (sheet of 72 standard switch reusable labels)
  • Installation Instructions

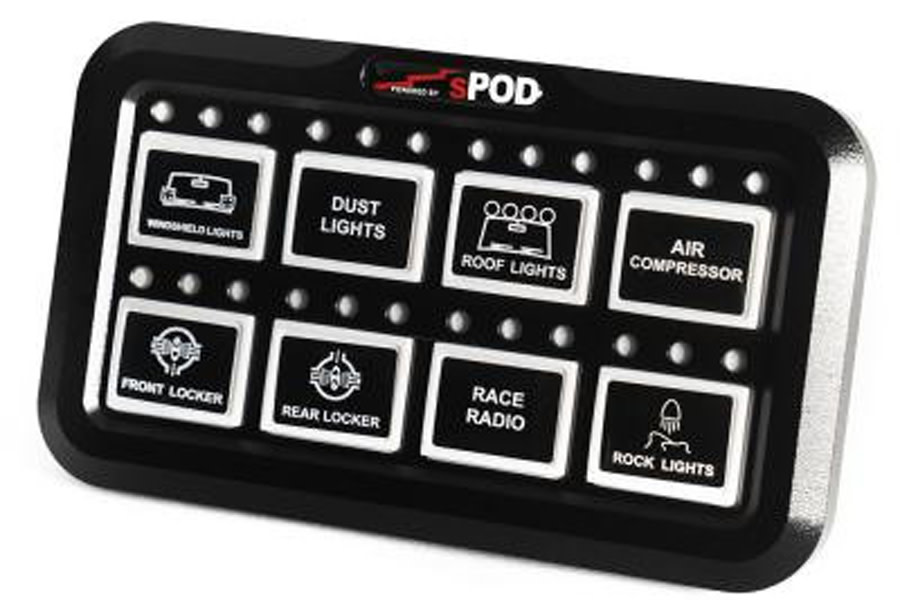

    • HD Switch Panel Features:

  • Encased in an aluminum billet machined housing, powdercoated black, utilizing tactile switches encapsulated in silicone.
  • Silicone Buttons with positive touch feedback.
  • Bluetooth LE
  • Panel is designed to withstand the harshest environments with all weather conditions taken into account.
  • Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).
  • Universal back with two pressed-in 1/4-20 studs x 5/8 inches long for flat mounting.
  • Standard universal articulating mount for a multitude of mounting options.
  • One standard RJ45 jack on back for communication cable between HD panel and the Source.
  • HD can be located up to 25 feet from the Source using standard CAT-6 Ethernet cable.
  • Built in Bluetooth LE allows you to program and control our system with iPhones, iPad, iPad Mini, sPOD HD app. (free download)
  • Each switch programmable for dimming, flash, momentary, strobe, and switch linking (program any switch to be a master to control other switches).
  • All 8 switches are RGB backlit.
  • Adjustable timer to turn backlight off and a simple touch on any switch to reactivate.
  • Quickly turn backlight off by holding 2 designated buttons.
  • Backlight color and intensity can be changed to any color to match vehicle interior dash lighting.
  • Legends can be applied (comes standard with one sheet of 72 legends).
  • Each switch has 3 status lights: Red (left) = On, White (center) = Flash/Strobe active, Blue (right) = Active visual feedback when button is pushed.
  • Status lights can be dimmed.
  • Additional HD smart controller can be added for different locations.
  • HD can run in conjunction with our SE Touchscreen, Bluetooth and SE 8 Switch panel.

    • Bluetooth Requiments:

  • Download sPOD Bantam app from iTunes or Google Play Store
  • Bluetooth 4.0 compatible
  • Compatible with Android devices
  • iPhone 4s or newer, iPad 2 or newer, iPad mini iOS 7 or newer
  • Existing sPOD system
  • Access to iTunes App Store or Google Play Store

    • NOTE The HD will go into “Deep Sleep” after 6 hours of inactivity (ie: no usage of the HD or not running the engine). Once in deep sleep, the HD will turn off any accessories that were left on (including refrigerators!).

    The primary reason for the Bluetooth integrated into the HD panel is for programming purposes, and not for remote control due to the limited range.

    HD housings are precision machined billet aluminum which contribute to the distance limitations.

    Ranges may vary from 5 feet up to 15 feet depending on location of the HD, the surroundings, phone type, phone cover and many other variables.



    Specifications

    Brand: sPOD
    Capacity: 8 Switches
    Hardware Included: Yes
    Includes Switches: Yes
    Type: Switch Panel
    Wiring Included: Yes
    Mfgr. Warranty: 1 Year
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
