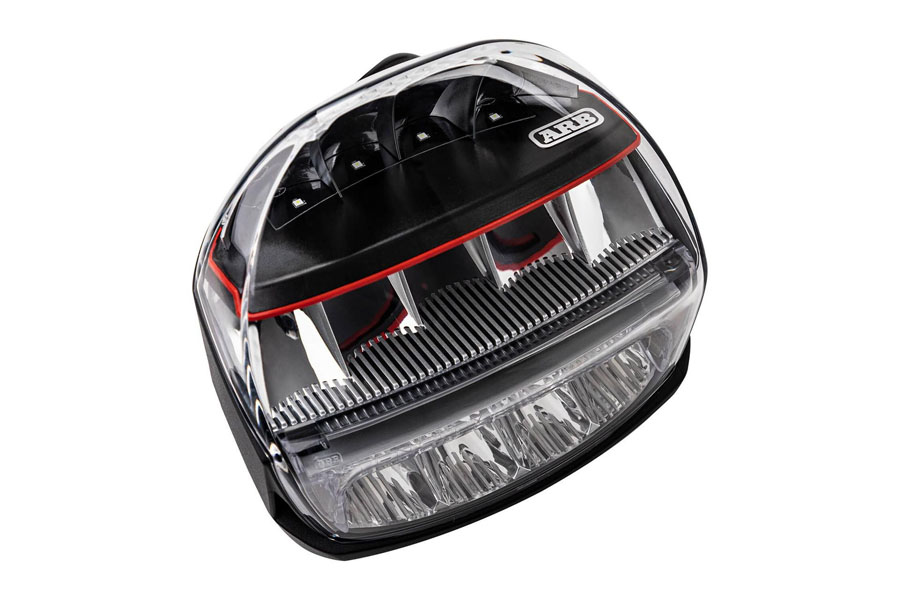

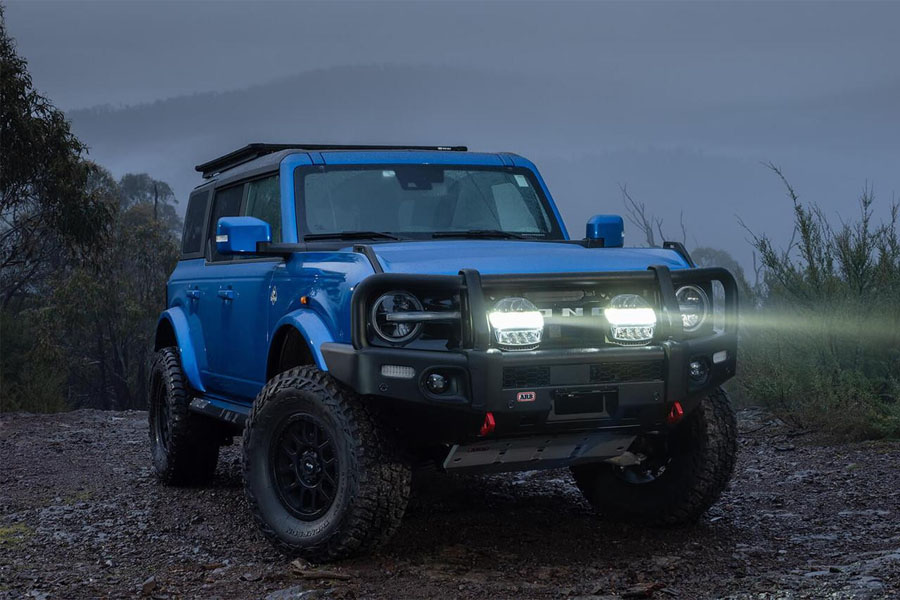

ARB Intensity IQ LED Driving Light
ARB Intensity IQ LED Driving Light
ARB Intensity IQ LED Driving Light
ARB Intensity IQ LED Driving Light
ARB Intensity IQ LED Driving Light

ARB Intensity IQ LED Driving Light

Write a Review | Q&A
Part # ARBVX17We price match! Call 866-601-5340!
We Price Match
$1,850.00

Ships from Mfg. Available to ship: 7-10 business days
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

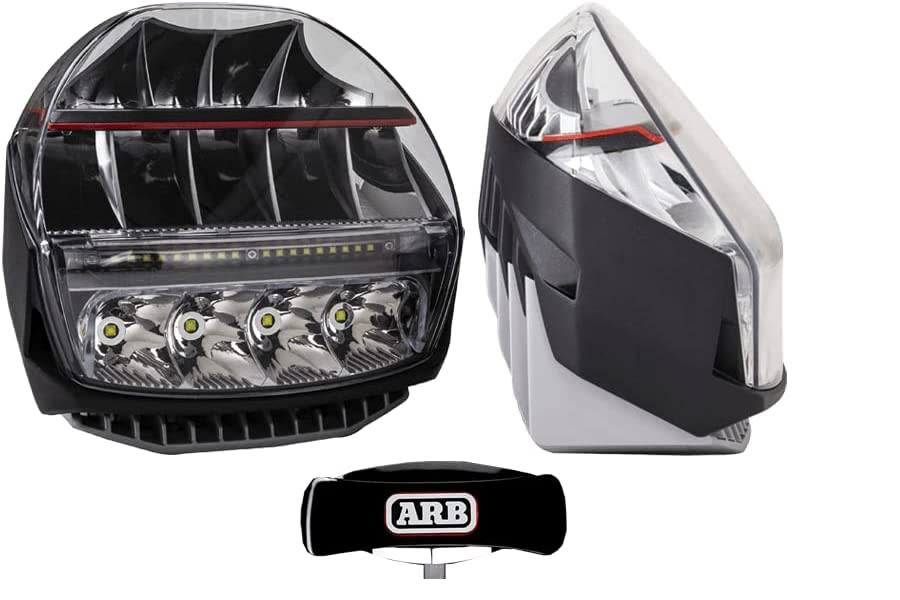

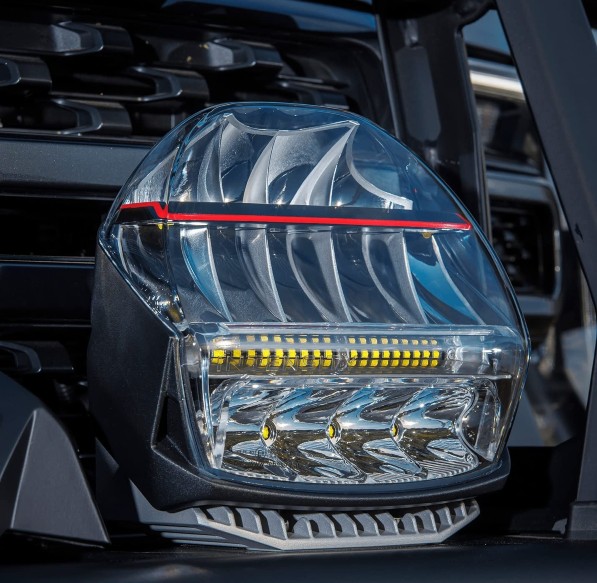

The ARB Intensity IQ driving lights have been developed from the ground up, with performance front of mind, while delivering a design that complements modern vehicle styling and bumper designs. With a subtle introduction of ARB red within the light, the free-form clear front lens, bezel-less design and CNC machined ARB logo provide a modern, classy and premium new look. Packed with unique features, the Intensity IQ sets a new level of driving light design and usability.

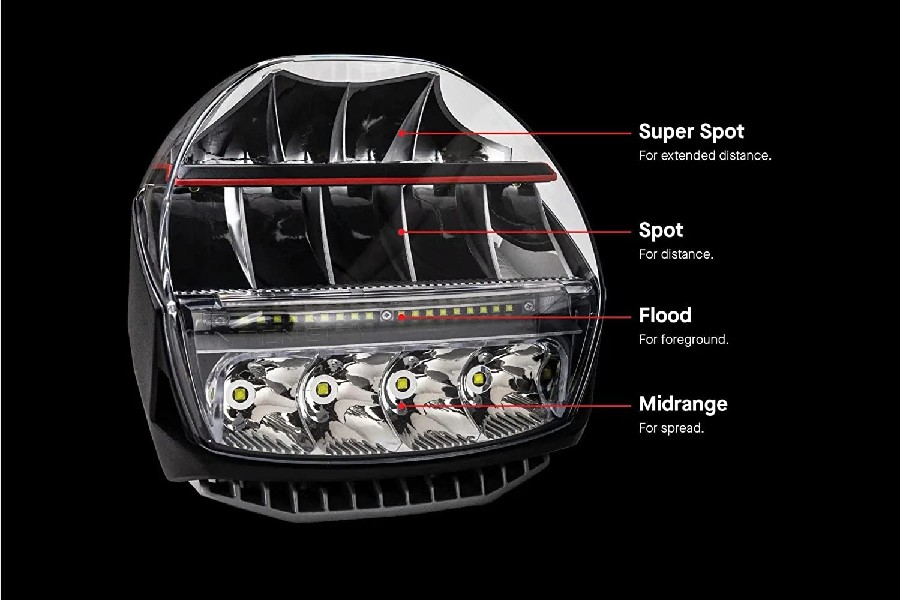

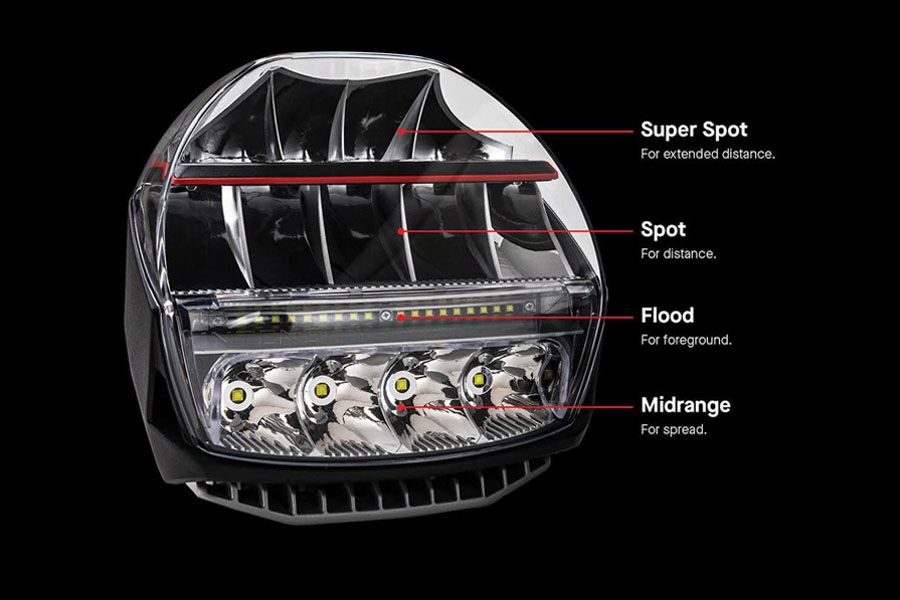

A unique four-optic design (Super Spot, Spot, Flood and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition.

The Super Spot and Spot optic, based on free-form reflector technology, produce an even spot beam for extended distance illumination. The Flood optic has a specially designed lens to maximize the light spread for excellent foreground visibility.

The Midrange optic employs a conventional parabolic reflector to illuminate the midrange area.

Protected by the purpose-driven, virtually indestructible polycarbonate lens, the IQ is contained by a high quality material that will protect your driving light investment.

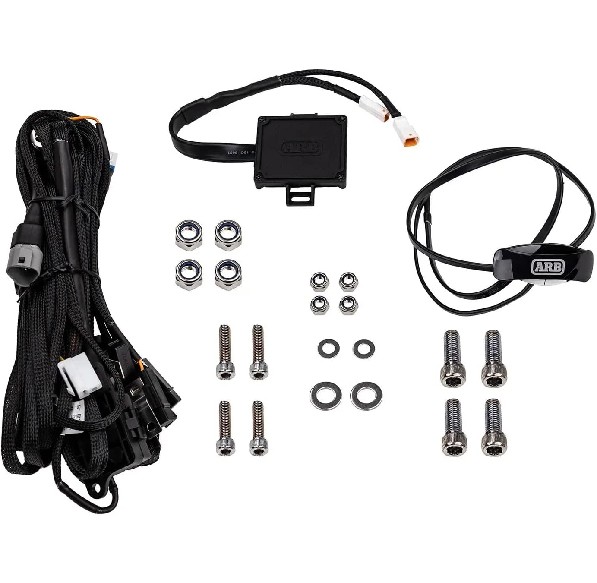

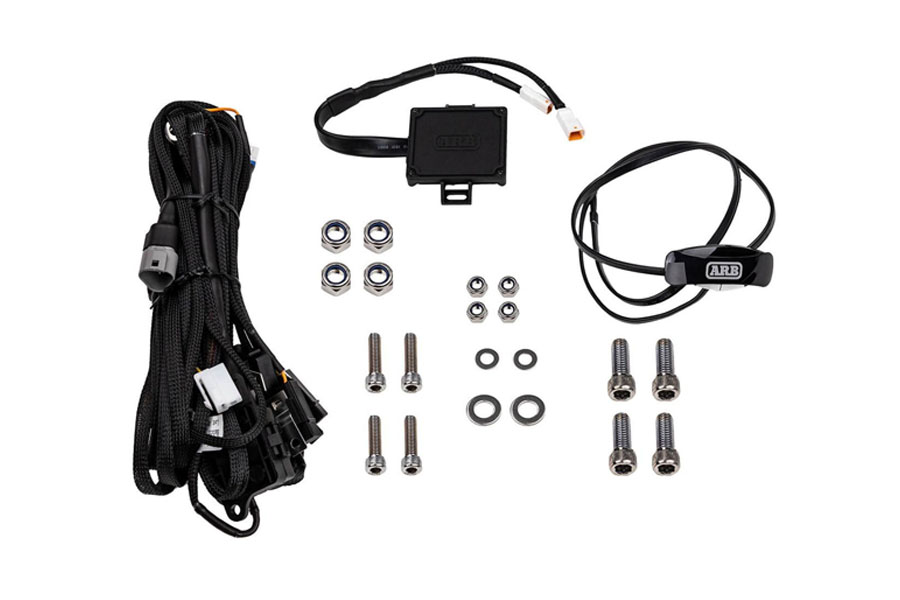

A physical switch controller that is equally as intuitive accompanies the revolutionary Intensity IQ lights.

Access up to eight different preset configurations at the click of a button, instantly changing the Intensity IQ lights to your needs. The Intensity IQ controller sports a design that is both ergonomic and practical, with users being able to feel and adjust rather than relying on seeing the device itself.

Features:

  • Durable, UV-resistant powder coat
  • Multiple control options; touchpad, ARB LINX, or smartphone app. Compatible with iOS and Android
  • Onboard switch with up to eight customizable presets
  • Work light and courtesy light functionality
  • Pressure equalization breather
  • Connect four Intensity IQ lights on one switch
  • Up to 50,000+ LED lifespan
  • Specifications:

    Input 11 – 32V

    Power 170 W @ 13.2V

    Current Draw 12.9A @ 13.2V

    Output – Raw Max Spot 7,070 lumens Max Flood 14,060 lumens

    Output – Effective Max Flood 6,666 lumens Max Combo 6,265 lumens Max Spot 6,613 lumens

    Distance @ 1 Lux (1 Pair) Max Spot 1350m / 4429ft Max Combo 1105m / 3625ft Max Flood 900m / 2953ft

    Operating Temperature (°C) -40°C to +80°C

    Operating Temperature (°F) -40°F to +176°F

    Color Temperature 5700 – 6200 Kelvin

    Weight 3.8kg (8.4lbs)

    Dimensions (inches) 8.7″ (w) x 8.5″ (h) x 5.6″ (d)



    Specifications

    Brand: ARB
    Mfgr. Warranty: 3-year limited
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
