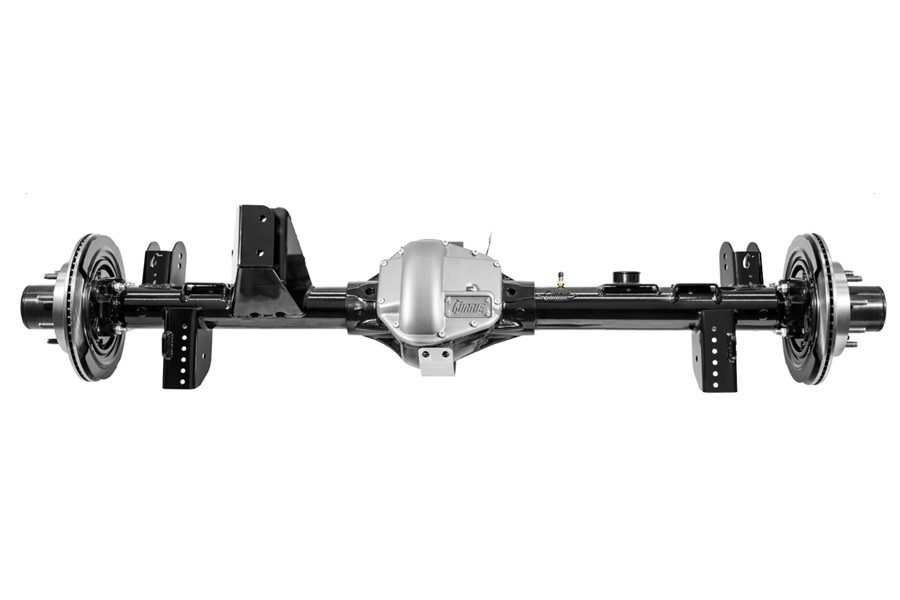

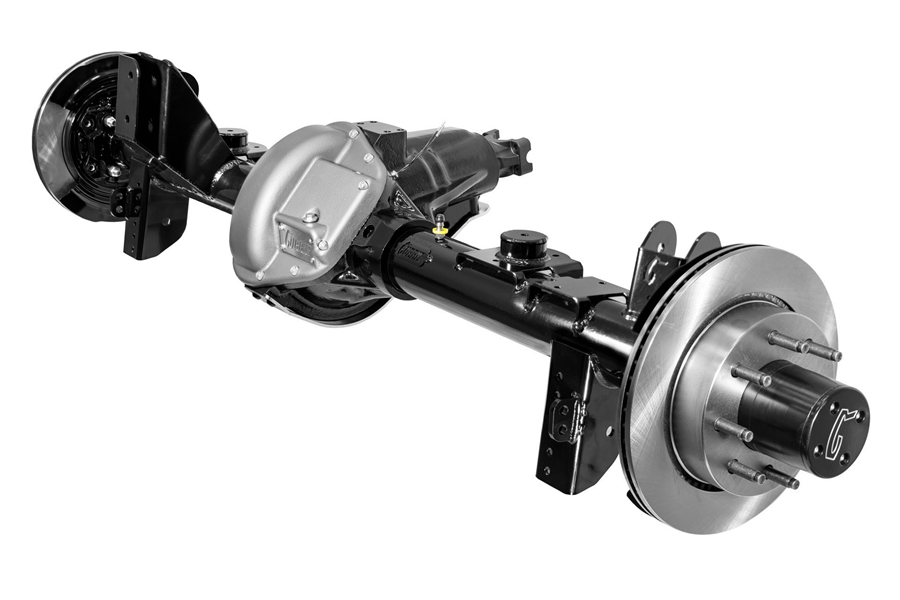

Currie Enterprises 70 Platinum Rear Axle w/ 4.88 Gears and ARB Air Locker - JL 392 Only
Currie Enterprises 70 Platinum Rear Axle w/ 4.88 Gears and ARB Air Locker - JL 392 Only

Currie Enterprises 70 Platinum Rear Axle w/ 4.88 Gears and ARB Air Locker

JL 392 Only

Currie Enterprises 70 Platinum Rear Axle w/ 4.88 Gears and ARB Air Locker - JL 392 Only
Currie Enterprises 70 Platinum Rear Axle w/ 4.88 Gears and ARB Air Locker - JL 392 Only Currie Enterprises 70 Platinum Rear Axle w/ 4.88 Gears and ARB Air Locker - JL 392 Only
Write a Review | Q&A
Part # CE-LR7003A48We price match! Call 866-601-5340!
We Price Match
$10,327.50
msrp: $12,150.00

Ships from Mfg. Available to ship: 7-14 business days
Qualifies for
free shipping!
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
Currie EnterprisesAuthorized
Dealer

Product Resources

Features & Product Details

The Currie 70 Platinum rear axle for the JL Rubicon 392 is designed for the demands of all-wheel-drive and Hemi torque. Out back, the 70 Platinum features 4” axle tubes and full-float 40-spline chromoly axles to handle the massive power of the 392 Hemi. If you seek out the most challenging routes and toughest obstacles to conquer, the 70 Platinum axle is a natural choice.



Currie 70 Platinum Axle Details:

  • Currie Exclusive High-Pinion 70 Rear Axle
  • Competition-Grade 10.5 in. Polished Gears with 35-Spline Pinion Shafts Rear
  • 40-spline Full-Float Rear Axles Deliver Ultimate Reliability
  • 13.75” Rear Vented Rotors Provide Abundant Stopping Power
  • 70-Inch Width Provides Improved Clearance for Large Tires
  • 8-Lug Bolt Pattern Expands Wheel Options

    •

    Currie 70 Platinum Features:

  • High-Clearance Center Section with Rotated Cover Improves Obstacle Slide-Over
  • High-Pinion Design Raises the Driveshaft By 2” for Additional Clearance
  • Ring Gear Load Bolt Prevents Gear Deflection to Deliver Maximum High-Pinion Strength
  • High-Volume Flow-Thru Pinion Oiling System Keeps Bearings Bathed in Cool Oil
  • Rock Slider Low-Friction Skid Plate Sides Over Trail Obstacles with Ease
  • Platinum Finished Diff Covers and Gloss Black Powder Coat Housing are Exclusive to the Platinum Series

    • Specifications

    Brand: Currie Enterprises
    Axle Style: Full Float
    Axle Type: Dana 70
    Bolt Pattern: 8x6.5
    Brakes: 13.75in
    Ratio: 4.88
    Spline Count: 40
    Width: 70in
    Mfgr. Warranty: 2 Year Warranty
    Condition: New Product
