Hydraulic Steering Kits >PSC Cylinder Assist Steering Package for Aftermarket D44/D60 Axles - JL 3.6 Non-ETorque

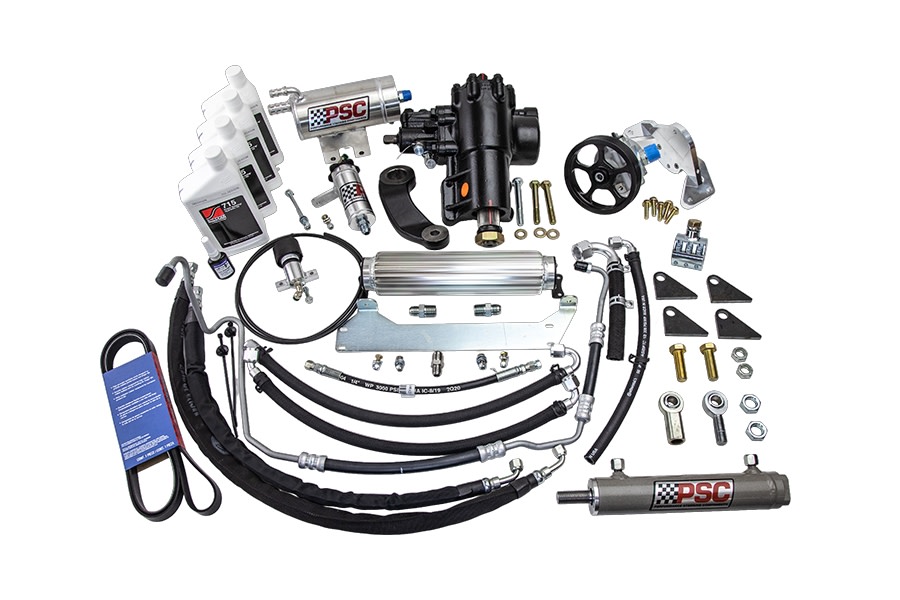

PSC Cylinder Assist Steering Package for Aftermarket D44/D60 Axles

JL 3.6 Non-ETorque

INCLUDED IN PRICE

Big Bore Steering Gear $1,449.54

1 x PSC Big Bore Steering Gear Box - JT/JL
PSCSG689R

In stock!
Steering Pump and Reservoir Kit $1,594.45

1 x PSC Steering Pump and Reservoir Kit - JL 2018-2020 3.6L
PSCPK36JP2

Only 1 left!
Cylinder Assist Kit $499.51

1 x PSC Weld-On Cylinder Assist Kit w/ Aftermarket 44/60 Axles - JT/JL
PSCCAK689R-6.75W

Only 2 left!

BUNDLE ASSEMBLY OPTIONS

Choose Tie Rod Clamp

$3,543.50

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # SK689R36JP2-6.75WPKG

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The New Jeep JL is equipped with new computer controlled electro-hydraulic steering (EHPS), electronic stability control (ESC), electronic roll mitigation (ERM), and a weight saving aluminum housing steering gearbox.

PSC has taken the Jeep JL steering system back to the drawing board and engineered our exclusive Big Bore XD-JL Steering Gearbox and a traditional belt-driven High Flow Mechanical Power Steering Pump Conversion, producing an essential upgrade to solve the undesirable factory steering performance while able to efficiently handle the increased torque loads due to larger tire sizes and installing aftermarket axle assemblies.

Features:

Eliminates excessive on-center steering wheel "play"

Eliminates electro-hydraulic pump overheating

Increased Torque Output turns tire sizes over 35"

Improved turning capability when locking differentials are engaged

WARNING!

Use HWK-689-PP hardware kit when installing the Synergy MFG Track Bar and Sector Shaft Brace with this product.

Using the SHORTER OEM or the standard 100MM bolts supplied with the XD-JL Steering Gearbox could result in steering gearbox case failure.

The larger size of the BIG BORE XD2 Steering Gearbox may prohibit the use of some aftermarket track bars.

TECH:

A Tazer JL Programmer (Tazer JL & Tazer JL MINI) will need to be purchased to override the OEM electro-hydraulic pump functions when installing the PSC High Flow Mechanical Pump Conversion Kit

Positive caster increases align torque, aka the force that straightens the steering wheel when you go forward, which improves straight line stability of the car. Due to the geometry of positive caster this will also increase negative camber gain when turning, which will enable a wider tire contact patch. The caster angle is a major contributor to directional control. An insufficient amount of positive caster angle will decrease driver effort at the steering wheel, but may make the vehicle too sensitive and twitchy, especially as speed increases. To achieve the best on-the-road driving experience, recommended front axle caster setting is 7 degrees positive.
