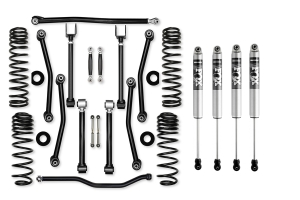

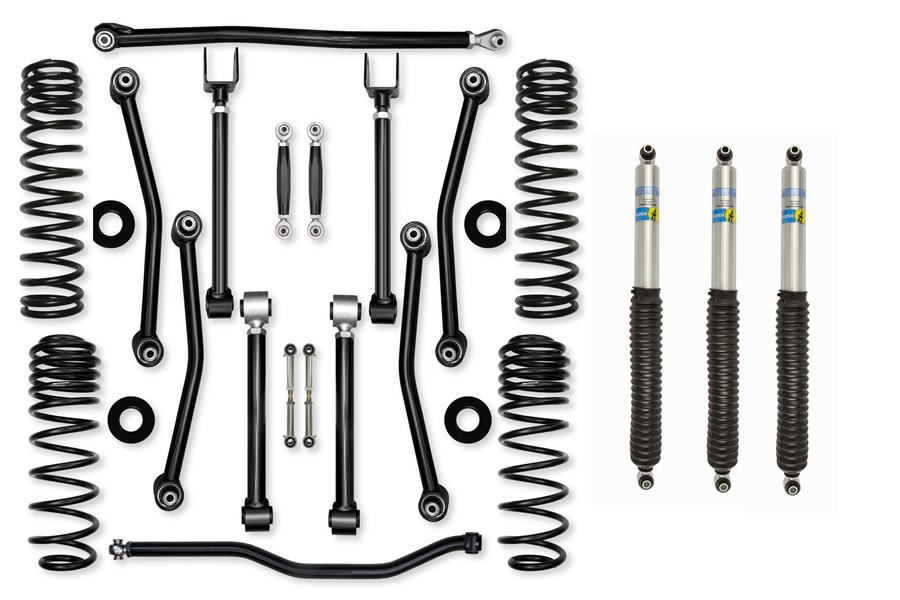

The Rock Krawler JL 2.5 Ultimate Adventure Mid Arm System was designed with the 392 in mind and for those who want an easy bolt-in installation, excellent on-road ride and the durability and the off-road performance you expect from Rock Krawler Suspension. This kit features Rock Krawler’s proven, service free control arm joints. These joints are the industry leader in service free control arm joints using innovative technology to provide the best possible ride in your Wrangler. The Adventure Series fixed lower control arms offer a total of 70 degrees of misalignment that greatly reduces the bind inherent in JL factory lowers, while high misalignment adjustable upper control arms let you precision tune your JL’s caster in the front and pinion angle in the rear.
Rock Krawler’s industry leading triple rate coils give you 2.5 inches of lift to clear up to 38-inch tires, depending on model, and improve the on-road ride over the factory linear rate springs. This platform allows us to include our "No-Limits" style front sway-bar links with the adjustable extended rear links. The No Limits front sway bar links allow Rubicon 392 owners to use the factory sway bar disconnect function and still achieve maximum articulation. All Rock Krawler JL systems include correction pads that help minimize the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in handling.
System Benefits:
Complete Bolt in System
Excellent Highway Ride
Improved Off-Road Ability
Triple Rate Coil Springs
Front & Rear Spring Leveling Pads
Lifetime Warranty on All Hard Parts
Upgradeable to Rock Krawler JL Long Arm
Service Free Control Arm Joint Package
Jeep remains level on all 4 corners
Tire Fitment:
Rubicon with Full OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
Wheel Fitment:
Rubicon Fitment Recommendations
37” Tall Tires – Recommend 4.5” of Back Spacing
38"/40" Tall Tires – Recommend 3.5” of Back Spacing
General Notes:
*All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).
*If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.
*If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Fox 2.0 Performance Series IFP Shock Front - 2-3in Lift Features:
2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Clear-anodized for a durable finish
Internal IFP mono-tube reservoir design
Black-anodized, CNC-machined 6061-T6 billet aluminum components
5/8" hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application specific valving to maximize performance
Redundant sealing pack system main seal, wiper seal, scraper seal
Quiet nitrile rubber allows for increased suspension articulation
The Fox 2.0 Performance Series IFP Shock Front Greatly Improves Suspension Performance while Dramatically Reducing Fade
The standard shocks that come on your Jeep Wrangler JL or Jeep Gladiator JT are not going to cut it for extremely aggressive
off-roading, which makes the extra ground clearance from big tires worthless. Well, our friends over at Fox Shocks have a
solution for you with Fox 2.0 Performance Series IFP Shock Front for Wranglers and Gladiators with 2" to 3" of lift. This shock
is a leaps and bounds improvement over typical white-body shocks, and even performance shocks that are included in some lifts.
The Fox 2.0 features an internal IFP mono-tube reservoir design that separates shock oil from the high-pressure nitrogen.
2" Diameter Aluminum-Body Shock
The Fox 2.0 Performance Series IFP Shock Front bolt onto your Jeep Wrangler JL or Jeep Gladiator JT. The shock itself is 2" in
diameter with an aluminum body that improves cooling capability over the majority of steel-body shock on the market. Each shock
has a 5/8" chrome-hardened shaft and valving that's been finely tuned to offer your truck excellent off-road performance with
making your street ride too harsh. The shock mounts are made out of CNC machined billet aluminum and come standard with nitrile
rubber bushings that resist more deflection than stock, but are still extremely quiet.
Fitment:
Jeep Wrangler JL
Jeep Gladiator JT
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Fox Performance Series 2.0 IFP Shock Rear 2-3in Lift Features:
2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Clear-anodized for a durable finish
Internal IFP mono-tube reservoir design
Black-anodized, CNC-machined 6061-T6 billet aluminum components
5/8" hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application specific valving to maximize performance
Redundant sealing pack system main seal, wiper seal, scraper seal
Quiet nitrile rubber allows for increased suspension articulation
The Fox Performance Series 2.0 IFP Shock Rear 2-3in Lift Greatly Improves Suspension Performance while Dramatically Reducing Fade
The standard shocks that come on your Jeep Wrangler JK are not going to cut it for extremely aggressive
off-roading, which makes the extra ground clearance from big tires worthless. Well, our friends over at Fox Shocks have a
solution for you with Fox 2.0 Performance Series IFP Shock Front for Wranglers with 2" to 3" of lift. This shock
is a leaps and bounds improvement over typical white-body shocks, and even performance shocks that are included in some lifts.
The Fox 2.0 features an internal IFP mono-tube reservoir design that separates shock oil from the high-pressure nitrogen.
2" Diameter Aluminum-Body Shock
The Fox Performance Series 2.0 IFP Shock Rear 2-3in Lift bolts onto your Jeep Wrangler JK. The shock itself is 2" in
diameter with an aluminum body that improves cooling capability over the majority of steel-body shock on the market. Each shock
has a 5/8" chrome-hardened shaft and valving that's been finely tuned to offer your truck excellent off-road performance with
making your street ride too harsh. The shock mounts are made out of CNC machined billet aluminum and come standard with nitrile
rubber bushings that resist more deflection than stock, but are still extremely quiet.
Fitment: Jeep Wrangler JL
