Rock Krawler 3.5in X-Factor Coilover 'No Limits' Mid-Arm Lift Kit - Stage 1
JL Diesel
Product Resources
Features & Product Details

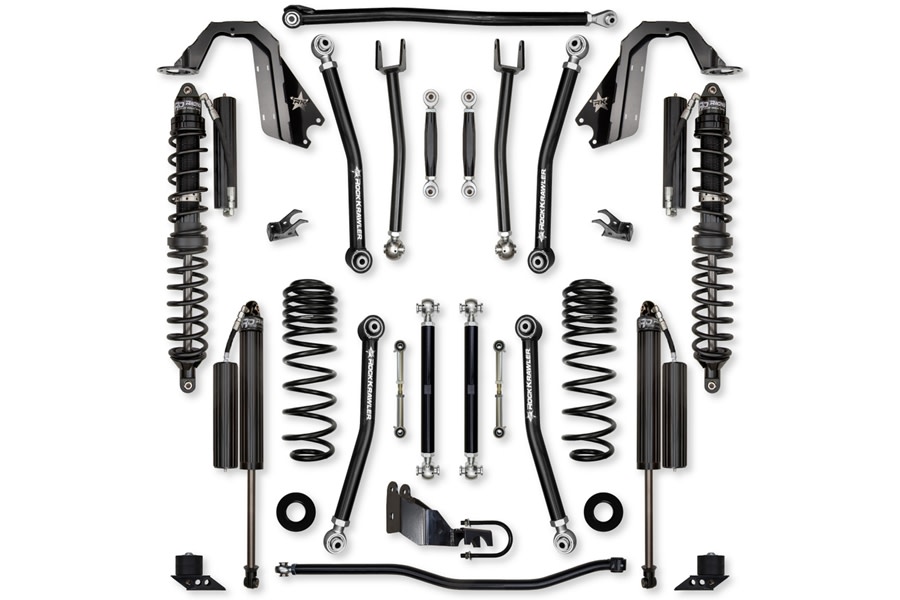

The Rock Krawler 3.5" X-Factor COILOVER Mid-Arm Diesel System is specifically designed for Sport and Sahara owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. The Term, "No-Limits" comes from the inclusion of the front sway bar links specifically designed for use with the factory electronic sway bar disconnect feature found standard in your Rubicon Wrangler! The sway bar links themselves come with factory sized hardware, a CNC machined billet aluminum center section, and Made in USA heim joints from FK bearing, once installed, just press the button and hit the rocks! This system proves its durability and off-road performance every time you hit the streets or trail! Rock Krawler's industry leading, X-Factor Series, adjustable upper and lower control arms, offer a total of 95 degrees of misalignment when paired with the Pro-X Krawler Joints and Adventure Series joints. The inherent bind in a factory JL control arm is greatly reduced. The maintenance free "Adventure Series" joints are found in your front and rear control arms at the frame connection, while the "PRO Krawler Joints" tie in your axle connections. With so much adjustability, it allows you to precision tune the JL's caster and pinion angle front and rear. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling. When Rock Krawler design a system, their goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail!

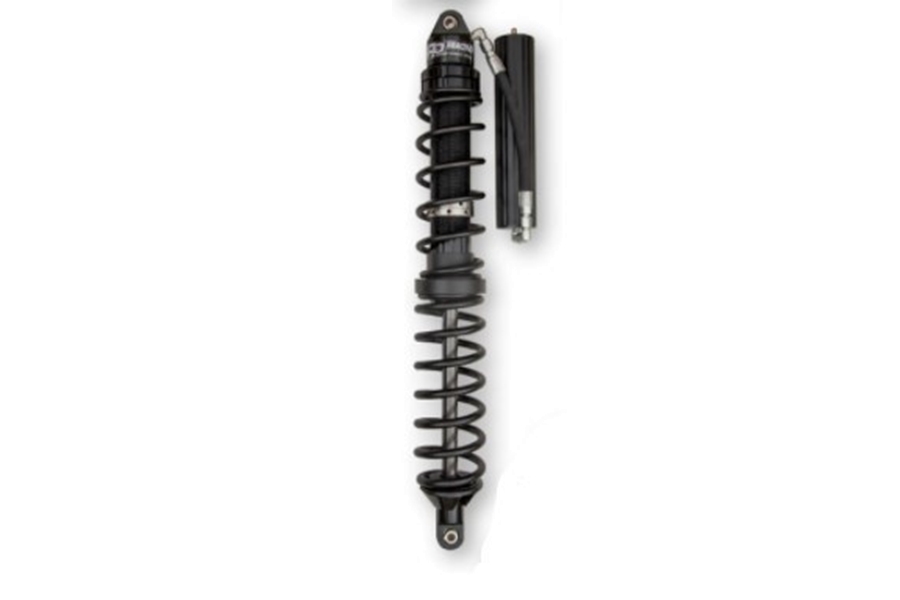

The Comp System (Front Coilovers w/ Rear Coil Combination) is ideal for those that want the adjustability and performance of coilover racing shocks up front but still want to use their Wrangler to carry small loads or tow small trailers. There are two options for the Comp Systems you can choose from. The standard or Stage 1 System features 2 5/8" RRD Racing Coilovers w/ Remote Reservoirs up front paired with matching 2 5/8" RRD Racing Shocks w/ Remote Reservoirs in the rear for a well-tuned package. Or you can opt for the Stage 2 Comp System which will include Fast CD (Compression Dampening) Adjusters on the coilovers and rear shocks for an even greater level of tuneability.
Like all of Rock Krawler's systems, amazingly tuned ride and handling is their number one priority! It is no different with their coilover systems. Coilovers add another level of tuneability for the vehicle owner to further enhance the ride, handling and off-road performance to their liking. Install exceptional value and be the foundation for every adventure whether it be on the Street or on the Trail with a Rock Krawler Coilover Suspension System! Thank you for considering Rock Krawler Suspension.
System Benefits:
COMP SYSTEM STAGE 1 (Coilover Front/Coil Spring Rear)
Tire Fitment:
Sport and Sahara with Full OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Sport and Sahara with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
37”/38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
40” Tall Tires (3” Bump Stop Height Recommended)
Wheel Fitment:
Sport and Sahara Wheel Fitment Recommendations
37”/38” Tall Tires - Recommend 3.5” of Back Spacing
Rubicon Fitment Recommendations
37” Tall Tires – Recommend 4.5” of Back Spacing
40” Tall Tires – Recommend 3.5” of Back Spacing
General Notes:
