Rock Krawler 3.5in X Factor X2 'No Limits' Long Arm Lift Kit - JL 392 Only

Rock Krawler 3.5in X Factor X2 'No Limits' Long Arm Lift Kit

JL 392 Only

Rock Krawler 3.5in X Factor X2 'No Limits' Long Arm Lift Kit - JL 392 Only
(Price as configured)

You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # JL35X2NL-392We price match! Call 866-601-5340!

Product Resources

Features & Product Details

The Rock Krawler JL 3.5 X Factor X2 No Limits System is the ultimate JL Long Arm system for hard core rock crawling AND is now specifically designed for the the 392 Platform. We achieve this by adding 392 specific Triple Rate Coil springs that achieve 3.5 inches of lift height over the FACTORY 1" lift height. What this means: The springs are a heavier rate to account for the massive 392 cubic inch, V8 engine and give you a ride height that achieves a balanced, functional lift system. The Rock Krawler No Limits systems feature our No limits front sway bar links that allow Rubicon owners to utilize the factory Rubicon sway bar disconnect feature and still achieve full articulation.

The X Factor systems feature Independent 3 link designs front & rear for maximum articulation and off-road performance. The rear suspension provides adjustable anti-squat with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The new high clearance axle mounts provide 4.5” of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of high clearance mounting and 3 link suspension geometry lets you dominate the trails.

System Benefits

  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Full High Clearance Design
  • Independent 3 Link Long Arm Front Suspension
  • Independent 3 Link Long Arm Rear Suspension
  • Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • 4.5” Rear Clearance Gain from the X2 Axle Bracket System
  • Adjustable Rear Anti-Squat Featuring X2 Geometry

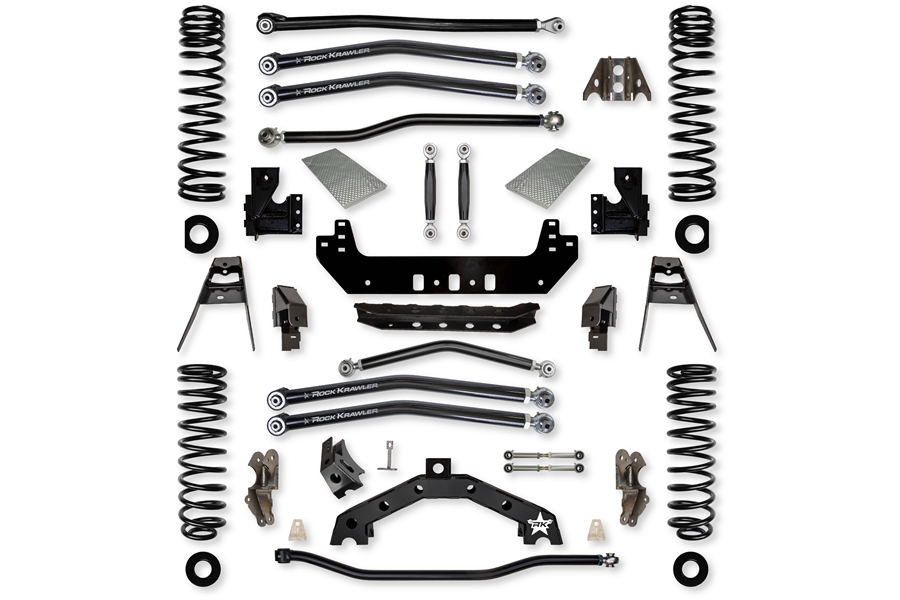

  • System Includes:

  • (1) Weld-on front long arm mounting system
  • (1) Heat Shield Products Sticky Shield Kit
  • (1) Front adjustable anti-wobble track bar
  • (2) High clearance adjustable front lower control arms
  • (1) Adjustable front upper control arms
  • (2) No Limits front sway bar links
  • (4) Triple rate coil springs
  • (4) JL coil spring correction seats
  • (2) Weld-on rear frame side long arm mounts
  • (2) High clearance adjustable Rear lower control arms
  • (1) Rear upper control arm
  • (1) Rear frame side upper control arm mount
  • (2) Rear extended sway bar links
  • (1) Rear adjustable anti-wobble track bar
  • (2) Weld-on rear upper shock mount
  • (2) Weld-on rear axle side control arm mount
  • (1) Weld-on rear track bar mount
  • (1) Weld-on rear axle truss
  • (2) Rear brake line relocation brackets
  • *hardware and detailed instructions

    Tire Fitment:
    Rubicon with Full OEM Fenders
    37/38” Tall Tires (3” Bump Stop Height Recommended)
    Rubicon with Trimmed or High Lined OEM Fenders
    40” Tall Tires (3” Bump Stop Height Recommended)

    Wheel Fitment:
    Rubicon Fitment Recommendations
    37” Tall Tires – Recommend 4.5” of Backspacing
    40” Tall Tires – Recommend 3.5” of Backspacing

    General Notes:

    *Requires the use of an Aftermarket Front Axle Housing with FAD Delete to Weld the Front Upper Arm Mount in place

    *All lift heights based on Rubicon 392 models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).

    *If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.

    *If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.

    *Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29"

    *Requires welding of the Front and Rear Long Arm Mounts

    *Requires removal of the OEM frame side lower front and rear control arm mounts

    *Requires removal of the OEM frame side front and rear upper control arm mounts

    *Requires removal of the OEM axle side rear lower control arm and track bar mounts

    *Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts

    *Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up


    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
