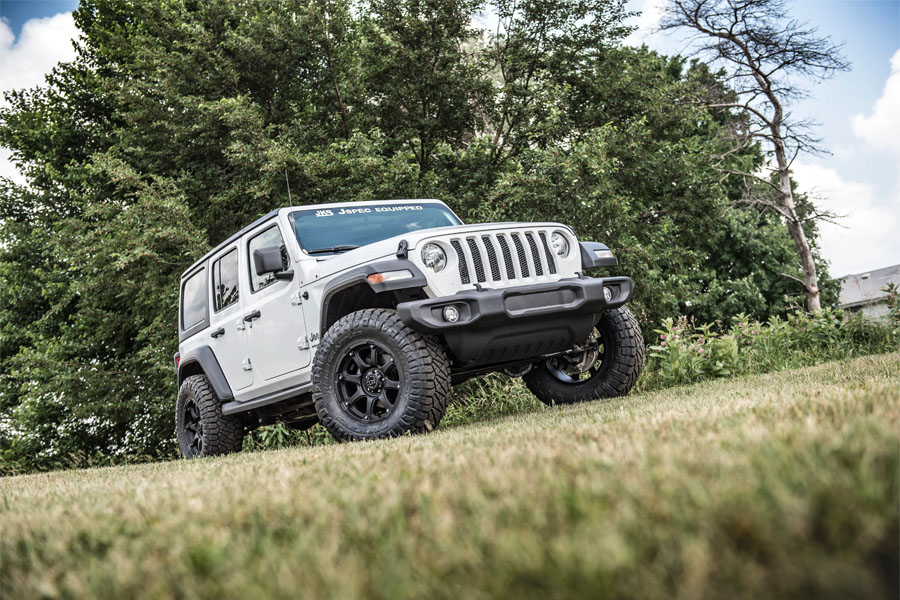

JKS 2.5in J-Krawl Lift Kit w/ Fox 2.0 Performance Shocks (Flex End)
JL Diesel
Product Resources
Features & Product Details

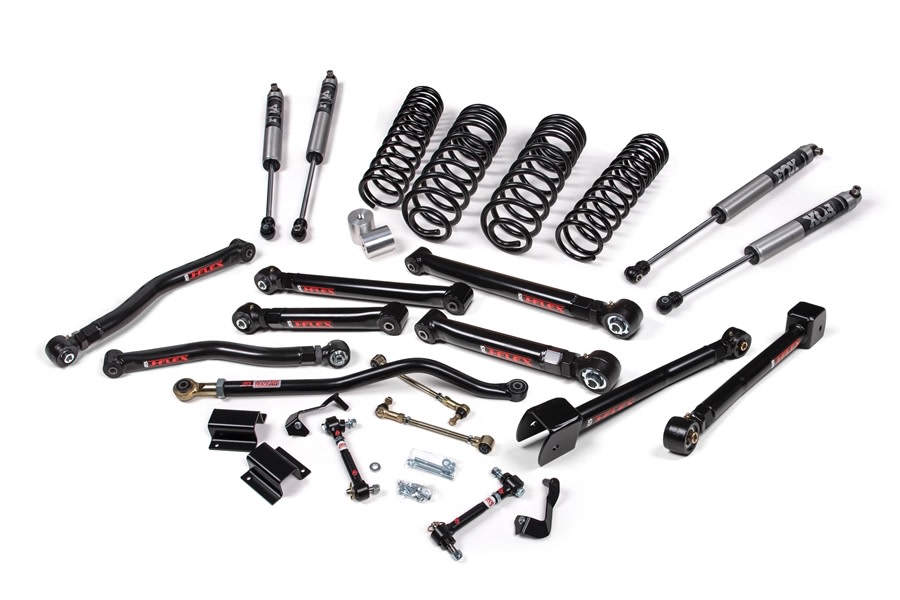

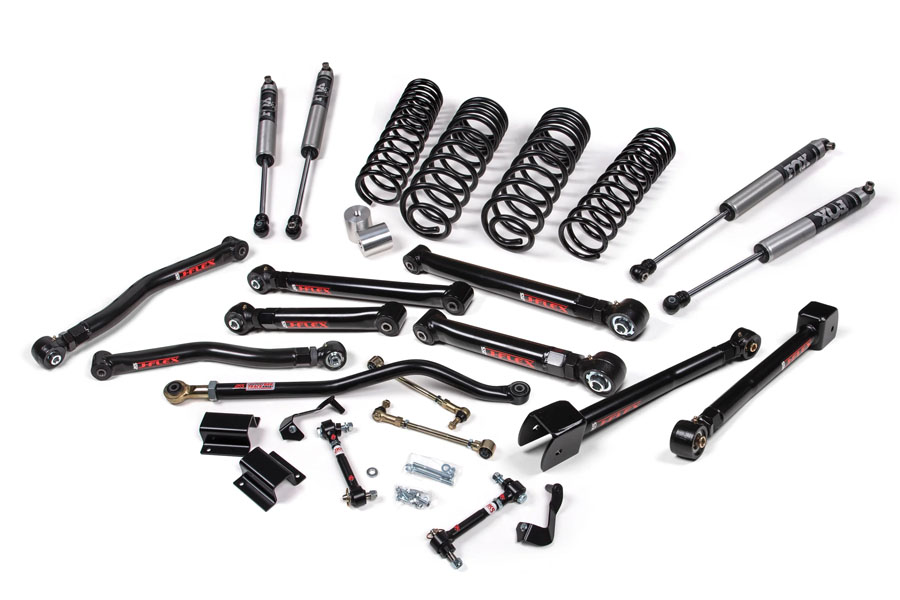

Build the ultimate rock crawling Diesel 4-Door Jeep Wrangler JL with a J-Krawl 2.5" lift kit suspension system. The complete system is designed for maximum articulation, strength and adjustability. Components include J-Flex or J-Link Upper and Lower Control Arms, JSPEC dual rate coil springs, custom-valved shocks, an adjustable front track bar, a rear track bar bracket, Quicker Disconnect front sway bar end links, and bump stop extensions. J-Krawl builds off Jeep’s factory suspension mounting points and upgrades everything front to rear.
Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.
Features & Benefits
Recommended Tires & Wheels
Rubicon Models
Non-Rubicon Models
(Trimming may be required)
Flex Ends:
Forged flex end and jam nut Flex end design allows for 30-degrees of misalignment (15 in either direction) for impressive articulation and are greaseable to ensure long bushing life. Completely rebuildable and serviceable on the trail with our JKS Flex Joint tools (link to tool).
Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front Aftermarket driveshaft is required due to additional travel capability
- Will not fit 4xe models
- Will not fit Rubicon 392 models
