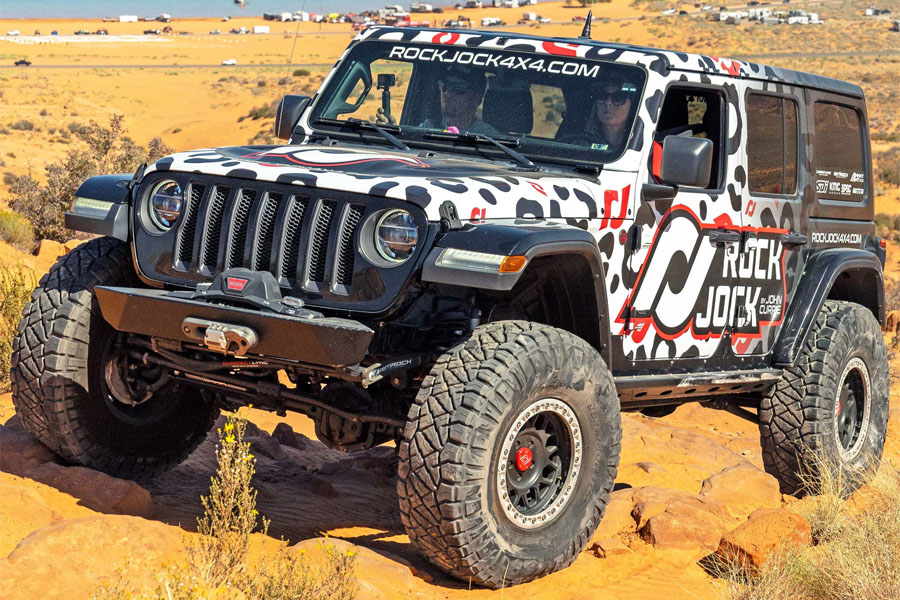

RockJock's Sport Edition Johnny Joint Suspension System for JL Wrangler Unlimited with the 392 Hemi engine provides 3 1/2 inches of lift and allows for efficient clearance of up to 37 in. tall tires (larger tires will require aftermarket fenders and minor trimming)!
Comprised of only the highest end components in the areas of strength, fit, finish, function, and the engineering to back them, this kit is more than sufficient for those who want to lift their vehicle, install big tires and hit some intermediate trails on the weekend!
For those who intend to do more serious 4 wheeling and rock crawling, you'll want to look at all the upgrade parts that RockJock has to offer that can be added to this kit to get your vehicle to its full potential at any level of off-roading!

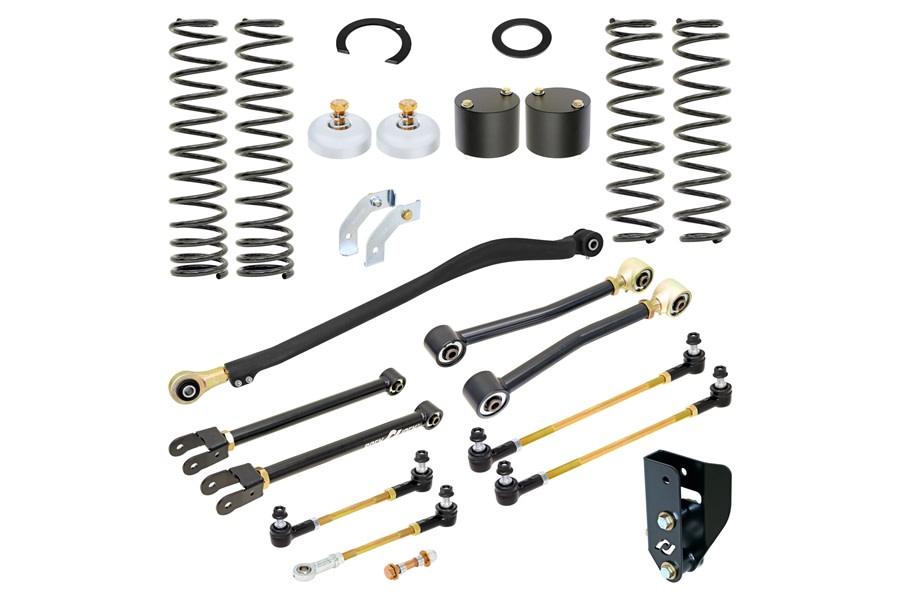

Kit Includes:
3.5 in. Lift Dual-Rate Front And Rear Springs
Front and Rear Coil Spring Shims (one of each)
Johnny Joint Adjustable Front Upper Control Arms
Johnny Joint Adjustable Rear Upper Control Arms
Johnny Joint Adjustable Front Trac Bar (forged, organically shaped)
Rear Trac Bar Geometry Correction Bracket
Front and Rear Bump Stop Kits
Front and Rear Adjustable Sway Bar Links w/ Sealed Ends
Front Brake Line Relocation Brackets
All Required Hardware
Kit Features:
RockJock Spec. Dual-Rate Springs - Feature a soft initial rate that absorbs small bumps and trail chop, to deliver a smooth, comfortable ride, while a firmer secondary rate helps soak up larger impacts and reduce bottoming. A key differentiator of RockJock spec. dual-rate springs is the positioning of the crossover point between the initial and secondary spring rates so that a portion of the softer initial rate is available and active at ride height before crossing over to the firmer secondary rate deeper into the travel.
Bump Stop Spacers - Proper bump stop extensions are a must and our heavy-duty kits stand up to hard use while keeping the tires off of the shiny new JL fenders! The front bump stops in this kit are unique to the 392 Hemi vehicles.
Johnny Joint Control Arms – Heavy duty adjustable upper control arms feature RockJock Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints are so trusted that they are used by multiple commercial suspension companies, for both street and off-road suspension systems.
Johnny Joint Trac Bar - Forged chromoly, organically shaped front trac bar combines a precise fit with incredible strength and rigidity that is only available via forging. The adjustability feature allows you to perfectly center front and rear axles under the vehicle. High-articulation Johnny Joint ends provide maximum durability and suspension flex.
Tire Fitment:
37 in. tires – no inner fender modification necessary
38 in. or larger tires – aftermarket high-clearance fenders suggested/required
Wheel Backspace:
4.5 in. wheel backspace is recommended for all tire sizes
