SPod Add-On Touchscreen for 8-Circuit Systems
SPod Add-On Touchscreen for 8-Circuit Systems
SPod Add-On Touchscreen for 8-Circuit Systems
SPod Add-On Touchscreen for 8-Circuit Systems
SPod Add-On Touchscreen for 8-Circuit Systems

SPod Add-On Touchscreen for 8-Circuit Systems

Write a Review | Q&A
Part # 8-700-TSB-C10
$350.00

Product will ship from manufacturer, average time to ship: 3-5 business days
Universal part

Product Resources

Features & Product Details

Time to add a Touchscreen to your 8 Circuit systems? This can be added to your existing 8 circuit systems or used as a second Touchscreen for your existing 8 circuit system. Is not compatible with Gen I or Gen II 6 circuit system.

The industry leader in power and control solutions. sPOD systems utilize automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.

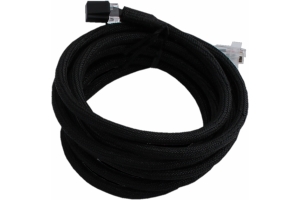

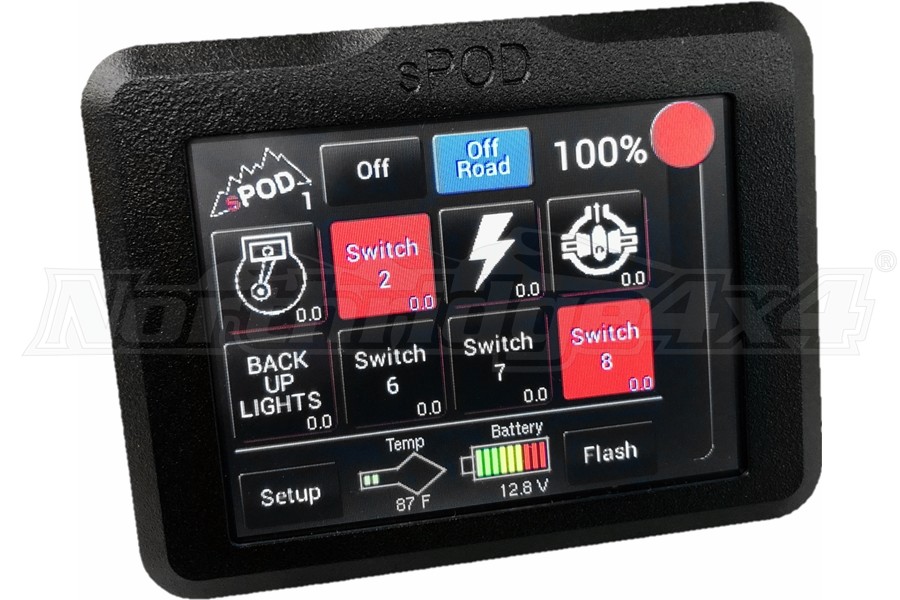

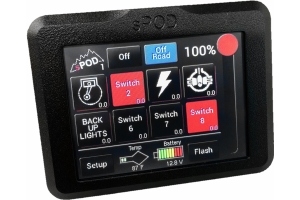

The touchscreen controller is small but packs a big punch! (3-3/4w X 2-7/8h X 5/8 thick) The control module is a 3.5-inch LED-backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case. Touchcreen comes with it's own with it's own universal mounting bracket. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.

!!! NOTE !!! The touchscreen is NOT weather resistant and should NOT be exposed to the elements. Water or any liquids will damage the touchscreen and void the warranty.


Benefits:

  • Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
  • Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
  • Reduced harness size offers an overall reduction in weight, improving the operational efficiency of the equipment.
  • Increase in switch lifecycle over traditional electromechanical switches.
  •

    Each switch is programmable for:

  • Dimming
  • Strobe
  • Flash
  • Momentary
  • Switch Linking
  • On Road and Off Road mode of operation
  •

    Touchscreen Control Module Features:

  • Voltage feedback (vehicles battery/alternator voltage)
  • SourceSE board temperature feedback (shown on screen)
  • Customization: legends (3 lines of text)
  • Automatic backlighting off after 30 minutes of being inactivity
  • Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
  • One touch off function
  • One second hold on off button shuts all circuits down
  • Automatic system shut down when the touchscreen is unplugged
  • Backlight dimming
  • Multiple Source select (One touchscreen can control up to 32 circuits)

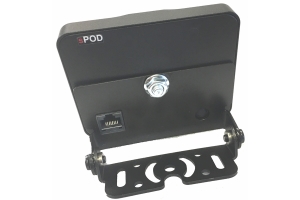

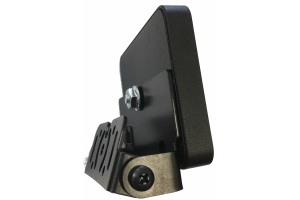

  • Come with it's own mounting bracket.
  • Product Video

    Specifications

    Brand: sPOD
    Color: Black
    QTY: 1
    Condition: New Product
    Return Policy:
    Not Specified
