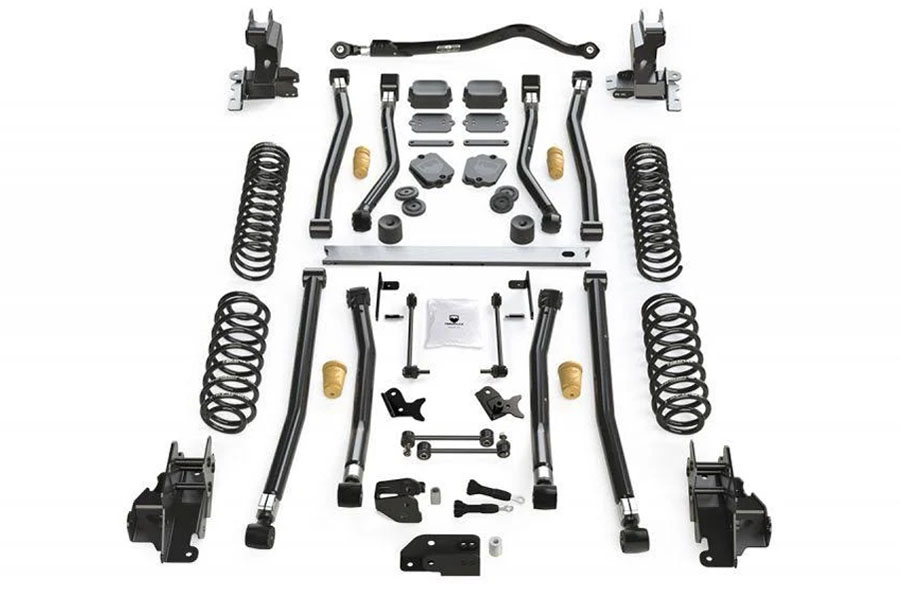

Name: Teraflex 3.5in Alpine CT3 Long Arm Suspension System - No Shocks
Brand: Teraflex
SKU: 1523320
Price: 3623.72 USD
Availability: OutOfStock

JL Diesel

INCLUDED IN PRICE

Lower Long Arms $898.99

1 x Teraflex Alpine Lower Adjustable Long Arms - 3in-6in Lift - JL
TER1316001

Only 2 left!
Upper Long Arms $724.78

1 x Teraflex Alpine Upper Long Arms - JL
TER1316002

Only 2 left!
Front Track Bar $269.59

1 x Teraflex HD Forged Adjustable Front Track Bar 0-6in Lift - JT/JL
TER1753420

In stock!
Front Quick Disconnect $139.19

1 x Teraflex Front Quick Disconnect w/ Swivel Stud Kit, Pair - 0-6in - JT/JL
TER1764000

In stock!
Front and Rear Bump Stop Kit $92.79

1 x Teraflex Front and Rear Falcon Progressive Bump Stop Kit - JL
TER1959200

In stock!
Spring Box Kit $608.79

1 x Teraflex 3.5in ST3/CT3 Coil Spring Box Kit - JL Diesel
TER1355020

Out of stockProduct will ship from manufacturer, average time to ship: 1-2 business days
Long Arm Bracket Kit $889.59

1 x Teraflex Long Arm Bracket Kit (3-6in Lift) - JL 4Dr
TER1958008

Only 2 left!

$3,623.72

Bundle Savings: $3,623.72

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

★★★★★

()
Write a Review | Q&A

Part # 1523320

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

A 3.5" suspension system opens up a new world of tire sizes and off-road possibilities. If you have that do it all" attitude, Teraflex's 3.5" Alpine CT3 Long Arm will make it happen. Features maximum tunability and performance.

FEATURES:

Rubicon Fenders: 35-37'' Tires CT Long Arm Suspension Systems:

Adjustable Alpine Long Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angles and tune anti-squat geometry for proper suspension alignment on 3-6'' lift kits

Alpine Long Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength

On higher lifts, bolt-on Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the Long Control Arms

Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits

Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance

Front Long Arm Suspension Crossmember provides additional strength

Cross-Trail:

Delivers true Cross-Trail (CT) performance

Dependable performance w/ zero worries

Positive, responsive handling w/ reduced NVH

High-quality, maintenance-free factory-style bushings provide excellent vibration damping and ride quality

Front HD Forged Adjustable Track Bar and Front Lower and/or Rear Lower Track Bar Bracket(s) improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling

Front and Rear microcellular Progressive Bump Stops provide progressive compression during high-speed suspension movement

Features Front Sway Bar Quick Disconnects

Full range of movement for off-road flex and articulation

Install and drive simple bolt-on installation - no welding required

SPECIFICATIONS:

Lift Height: 3.5''

Max Tire Diameter:

Sport/Sahara Fenders: 35'' (w/ 3'' front & 2.5'' rear bump stops strike pad extensions/shims)

Rubicon Fenders: 35'' (w/ 2'' front & 2'' rear bump stops strike pad extensions)

Rubicon Fenders: 37'' (w/ 2.5'' front & 3'' rear bump stops strike pad extensions/shims)

NOTE:

REQUIRES aftermarket wheels w/ 4.75'' backspacing or less or 1.75'' Wheel Offset Adapter Pair (# 1057000) for stock wheels - NOT INCLUDED may REQUIRE two pair.

Models with plastic bumpers REQUIRE removal of bumper-to-fender wind deflector/splash guards to fit 35'' or larger tires.

Sport/Sahara Fenders REQUIRE 3'' Front and 2.5'' Rear Bump Stop Strike Pad Extensions/Shims (INCLUDED) to fit 35'' tires.

Rubicon Fenders REQUIRE 2'' Front and 2'' Rear Bump Stop Strike Pad Extensions (INCLUDED) to fit 35'' tires.

Rubicon Fenders REQUIRE 2.5'' Front and 3'' Rear Bump Stop Strike Pad Extensions/Shims (INCLUDED) to fit 37'' tires.

REQUIRES cutting/removal of factory control arm bracketry to install Long Arm Brackets.

Alignment REQUIRED.

REQUIRES longer shocks (NOT INCLUDED). Falcon Performance Shocks recommended
