Rock Krawler 4.5in X Factor 'No Limits' Stage 1 Lift Kit  - JT

Rock Krawler 4.5in X Factor 'No Limits' Stage 1 Lift Kit

JT

Rock Krawler 4.5in X Factor 'No Limits' Stage 1 Lift Kit  - JT
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JT 4.5 X Factor "No Limits" Mid Arm System was specifically designed for Rubicon drivers who want a complete bolt-in installation, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The "No Limits" front sway bar links allow Rubicon owners to use the factory sway bar disconnect function and still achieve maximum articulation The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. Rock Krawler’s industry leading triple rate coils give you 4.5 inches of lift and improves the on-road ride over the factory linear rate springs. All Rock Krawler JT systems includes two rear spring seats, as well as the corresponding two front spring pads. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on-road handling.

System Benefits:

  • Complete Bolt in System
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Triple Rate Coil Springs
  • Front & Rear Spring Leveling Pads
  • Lifetime Warranty on All Hard Parts

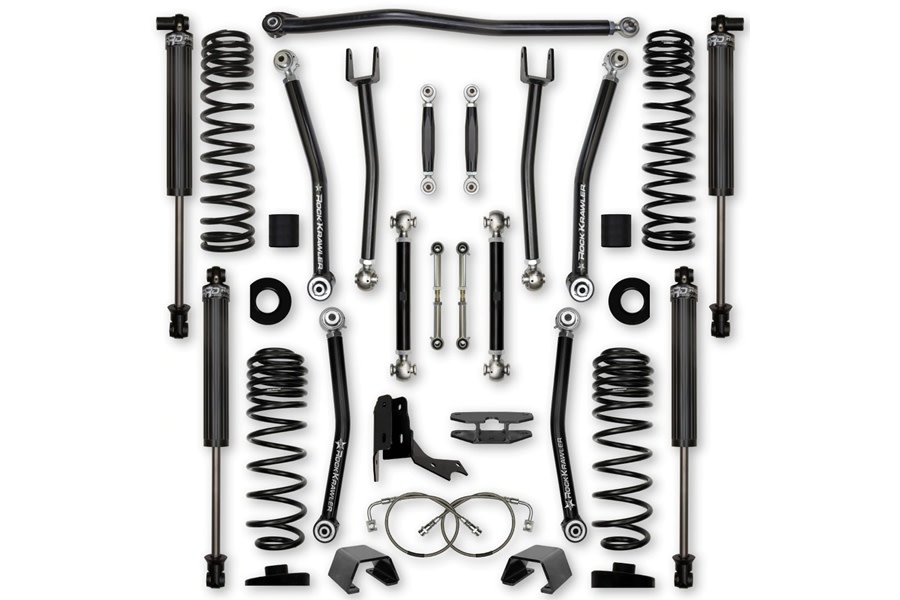

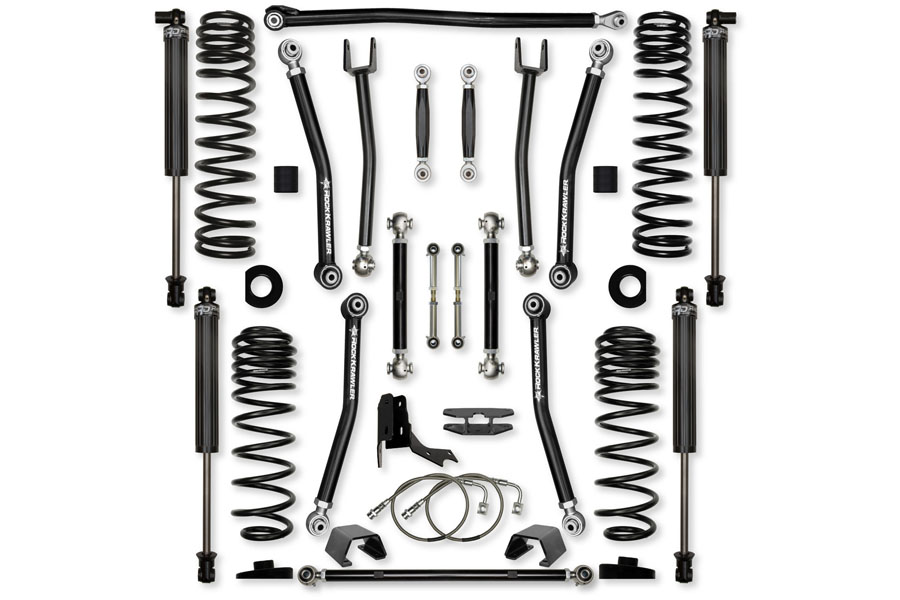

  • System Includes:

  • (4) Triple rate coil springs

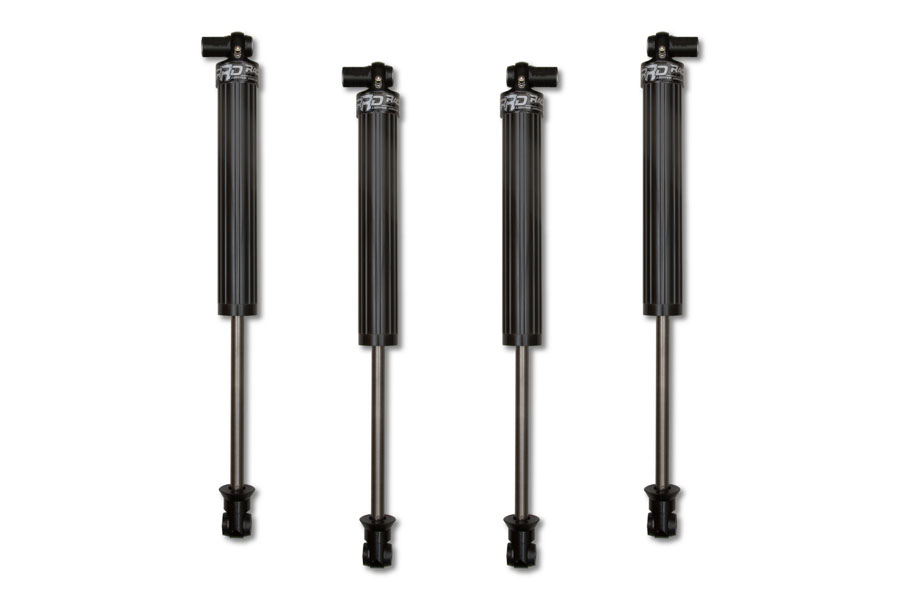

  • (2) 2.25 RRD Spec Front Shocks
  • (2) 2.25 RRD Spec Rear Shocks
  • (2) Front adjustable lower control arms
  • (2) Front adjustable upper control arms
  • (2) Front spring pads
  • (1) Adjustable front track bar
  • (2) No Limits sway bar links
  • (1) Carrier bearing drop bracket
  • (2) Rear adjustable lower control arms
  • (2) Rear adjustable upper control arms
  • (2) Rear spring seats
  • (2) Extended rear sway bar links
  • (1) Bolt-on rear track bar relocation bracket
  • Tire Fitment:

  • Sport and Overland with Full OEM Fenders
  • 37” Tall Tires (3” Bump Stop Height Recommended)

  • Sport and Overland with Trimmed or High Lined OEM Fenders
  • 38” Tall Tires (3” Bump Stop Height Recommended)

  • Rubicon with Full OEM Fenders
  • 37”/38” Tall Tires (3” Bump Stop Height Recommended)

  • Rubicon with Trimmed or High Lined OEM Fenders
  • 40” Tall Tires (3” Bump Stop Height Recommended)

    Wheel Fitment:

  • Sport and Overland Wheel Fitment Recommendations
  • 37”/38” Tall Tires - Recommend 3.5” of Backspacing
  • Rubicon or Sport with Wide Track Axles Fitment Recommendations
  • 37”/38" Tall Tires - Recommend 4.5” of Backspacing
  • 40” Tall Tires - Recommend 3.5” of Backspacing
  • Shock Notes:

  • Generic Front Shock Length – 17.5” Collapsed/ 29.5” Maximum Extended
  • Generic Rear Shock Length – 17” Collapsed/ 28” Maximum Extended
  • General Notes:

  • All lift heights based on Rubicon models
  • Designed to maintain 1/2" of rake on Rubicon Models
  • As shown valid for OEM axles only
  • If so, equipped will require removal of rear shutter shock
  • For tires larger than 37" or hard-core off-road use, welding of the rear cradle to the axle tubes is required.
  • Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
