Icon Vehicle Dynamics 2.5 VS IR Coilover Kit, Rear - Bronco 2021+
Icon Vehicle Dynamics 2.5 VS IR Coilover Kit, Rear - Bronco 2021+
Icon Vehicle Dynamics 2.5 VS IR Coilover Kit, Rear - Bronco 2021+

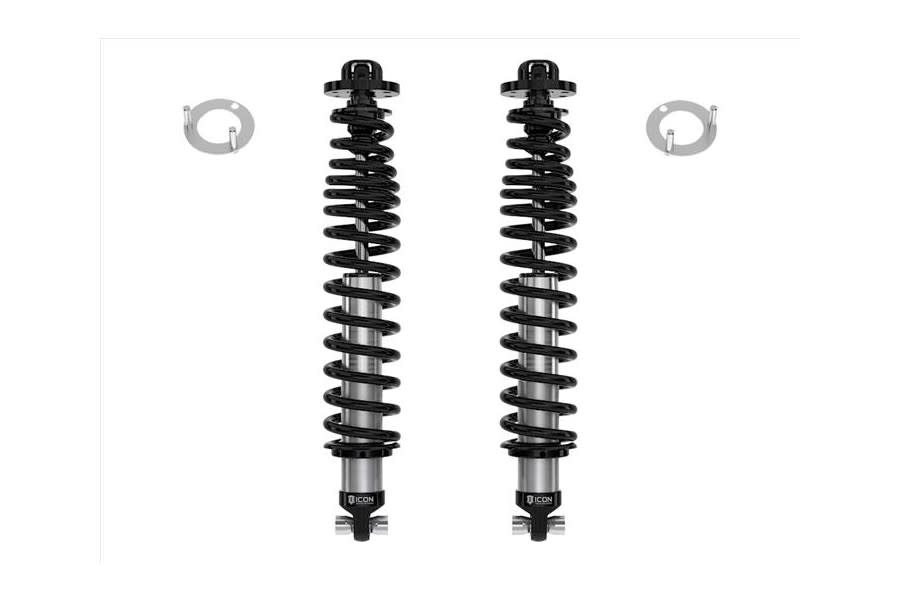

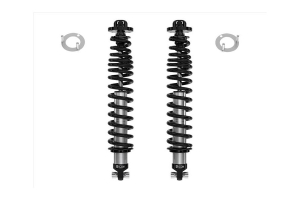

Icon Vehicle Dynamics 2.5 VS IR Coilover Kit, Rear

Bronco 2021+

Write a Review | Q&A
Part # 48610We price match! Call 866-601-5340!
We Price Match
$1,699.95
msrp: $1,784.95

Only 2 left!
Up To $100 Cash Back
click here for details
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

FEATURES & BENEFITS

  • Increased wheel travel (up to 14”) and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable up to 2-3" of rear lift height on non-Sasquatch or 2-3” of rear lift on Sasquatch Broncos
  • Unique ICON engineered triple rate coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
  • 100% Bolt-on - no drilling, cutting or welding necessary for installation
  • TECH INFO:

    OEM Wheels & Tires Fitment: Yes

    Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset

    Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset

    Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset

    Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset

    Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)

    Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)

    APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR

    TECH NOTE: Not compatible with Bronco Raptor trim

    Specifications

    Brand: Icon Vehicle Dynamics
    Color: Black
    Hardware Included: Yes
    Height Adjustable: Yes
    Install Method: Bolt On
    Location: Rear
    QTY: 1 Kit
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard
