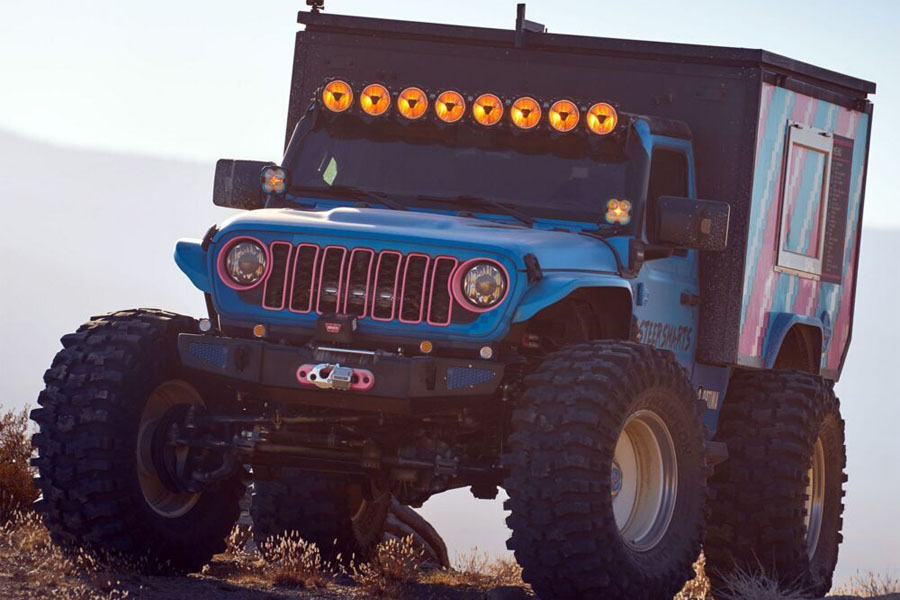

A complete overhead lighting solution designed specifically for the 2021-2025 Jeep Wrangler 4xe. This Gravity® Titan® light bar system delivers powerful forward-facing illumination using vehicle-specific brackets for enhanced trail visibility during off-road use. Designed to mount above the windshield, this setup provides long-distance lighting with a precise fit for the Wrangler 4xe platform.
At the center of the system is the Gravity® Titan® LED Light Bar, KC’s most advanced lighting platform. Powered by the Titan Core and 3-Source LED optics, Titan produces a larger illumination zone, increased peak intensity, and greater beam distance than previous Gravity platforms. Dual Power Modes allow you to switch between full High Power Mode for nighttime driving and an integrated Amber Dust Light that acts as a highly visible marker in dusty, snowy, or low-visibility conditions.
The system is completed with Jeep Wrangler 4xe overhead mounting brackets built from heavy-duty steel and finished in a black powder coat. Designed specifically for the 4xe’s factory mounting locations and hybrid-specific architecture, these brackets provide a secure mounting solution engineered to withstand the demands of off-road use.
FEATURES
Dual Power Modes:
Amber LED Dust Light: Highly visible marker for low-visibility conditions
High-Power Mode: Intense forward-facing illumination for nighttime trail use
Titan Core:
Patented Pass-Through Front Cooling: Superior thermal management
3-Source LED Optics: Delivers comprehensive mid- and long-range lighting coverage
Linkable and Curvable: Patented Infinity Ring® system offers expandable widths and the option to curve or straighten your setup
Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light
MoistureBlock® Technology: Integrated weather-sealed plug protects against water intrusion
WHAT’S INCLUDED
(1) Gravity® Titan® 50"" LED Light Bar - 8-Light Combo Beam (SKU 91418)
(8) Gravity 6"" Light Covers - Black with Yellow KC Logo
(1) Complete Wiring Kit with 3-Position Switch
(1) Cover Removal Tool
(1) Pair of Jeep Wrangler 4xe overhead mounting brackets (SKU 7331)
Fitment & Installation Notes
For Jeep 392 and Mojave, see SKU AK-91426
ForJeep JL/JT, see SKU AK-91424
Mounting Location: Overhead / windshield
Installation: Bolt-on installation using factory mounting locations
Specifications:
Light Technology: LED
Mount Location: Overhead
Beam Distance: 1,010 m
Beam Pattern: Combo
Color: Black
LED Color: Amber / White
Lens Color: Clear
Light Temp: 5000 K
Candela Per Light: 144,250cd (Spot) / 77,500cd (Wide 40)
Total Candela: 1,020,500 cd
Wattage Per Light: 11.2W (Amber) / 39.48W (White)
Total Wattage : 89.6W (Amber) /315.84W (White)
Amp Draw Per Light: 0.93 a (Amber) / 3.29 a (White)
Total Amp Draw: 7.47 a (Amber) / 26.32 a (White)
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 23,776 lm
Lux Per Light: 1,443lx (Spot) / 775lx (Wide 40)
Total Lux: 10,205 lx
