Zone Offroad 4in Coil Spring Lift Kit

JK 2012+ 4dr

Product Resources

Installation Instructions

Fitment Details

Features & Product Details

Want the perfect combination of looks, ground clearance and wheel travel? This 4" Suspension Lift lets you clear 35" tires and the confidence you want when you venture off road with your 4 door 4WD 2012 - 2018 Jeep Wrangler (JK).

Features:

Brake line relocation brackets increase wheel travel and allow use of factory brake lines.

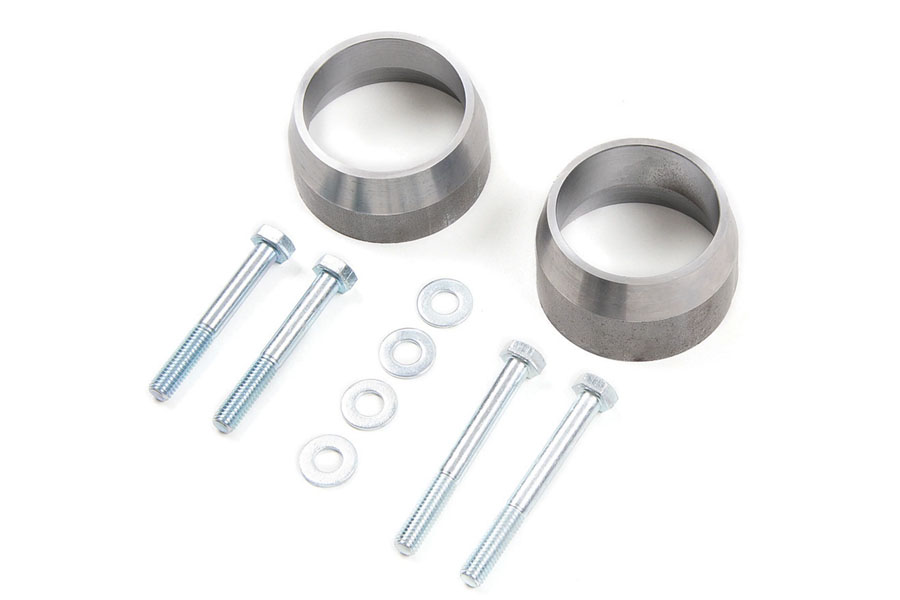

Bump stop extensions properly limit up-travel, protecting your vehicle.

Full length replacement coil springs add additional ride height while maintaining ride quality.

Heavy-duty, adjustable front track bar re-centers front axle and adds strength.

Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.

Lower cam washers correct axle caster for front end alignment.

Rear track bar bracket correctly positions rear axle under vehicle.

Specifications:

Front Lift Height 4"

Rear Lift Height 4"

Front Lift Method Coil Springs

Rear Lift Method Coil Springs

Lift Type Lift Kit

Wheel Size 16 x 8

Back Spacing 4.5"

Max Tire Size 35 x 12.5

Wheel Size 2 17 x 9

Back Spacing 2 4.5"

Max Tire Size 2 35 x 12.5

Wheel Size 3 18 x 9

Back Spacing 3 4.5"

Max Tire Size 3 35 x 12.5

Is Adjustable No

Cutting Required No

Accommodates Factory Wheels No

Welding Required No

Notes: Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.
