Rock Krawler 4.5in Adventure-X Long Arm Lift Kit

JT

This item is no longer available.

Set your vehicle to confirm fitment

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The Rock Krawler 4.5 Adventure-X Systems is the ultimate in compromise between daily driver/hard core off-roader. The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad a$$ off-road ability. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

System Benefits:

Excellent Highway Ride

Improved Off-Road Ability

Full High Clearance Design

High Clearance 4 Link Long Arm Front Suspension

High Clearance Independent 3 Link Long Arm Rear Suspension

Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM

Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame

Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability

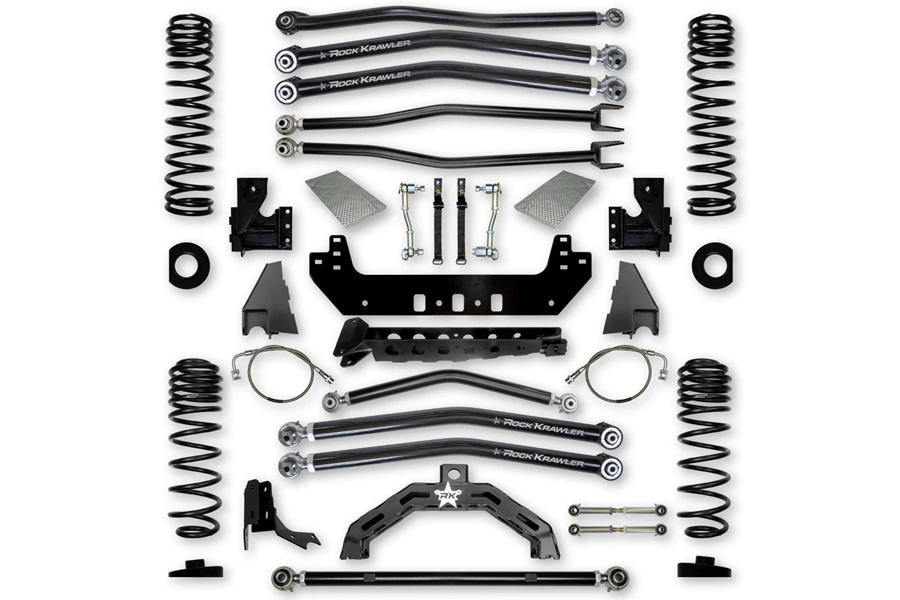

System Includes:

Weld-on front long arm mounting system

Heat Shield Products Sticky Shield Kit

Front adjustable anti-wobble track bar

High clearance adventure series front lower control arms

Adjustable front upper control arms

Front sway bar disconnect kit

Triple rate front coil springs

Coil spring correction seats

Weld-on rear frame side long arm mounts

High Clearance X Factor Rear lower control arms

Rear upper control arm

Rear frame side upper control arm mount

Rear extended sway bar links

Rear adjustable anti-wobble track bar

Quad rate rear coil springs

Weld-on rear axle side control arm mount

Weld-on rear track bar mount

Weld-on rear axle truss

*hardware and detailed instructions

Tire Fitment:
Sport and Sahara with Full OEM Fenders
38" Tall Tires (4" Bump Stop Height Recommended)
Sport and Sahara with Trimmed or High Lined OEM Fenders
40" Tall Tires (4" Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
39"/40" Tall Tires (4" Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
42" Tall Tires (4" Bump Stop Height Recommended)

Wheel Fitment:
Sport and Sahara Wheel Fitment Recommendations
38" Tall Tires - Recommend 3.5" of Backspacing
Rubicon Fitment Recommendations
39" Tall Tires - Recommend 4.0" of Backspacing
42" Tall Tires - Recommend 3.5" of Backspacing

General Notes:
*Requires the use of Steersmarts XD Yeti HD Bottom Mount Drag Link for Off-Road Use
*All lift heights based on Rubicon Models
*Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29"
*Requires welding of the Front and Rear Long Arm Mounts
*Requires removal of the OEM frame side lower front and rear control arm mounts
*Requires removal of the OEM frame side front and rear upper control arm mounts
*Requires removal of the OEM axle side rear lower control arm and track bar mounts
*Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up
