FabTech 2in Trail Lift Kit w/ Shock Extensions - JT Mojave Only

FabTech 2in Trail Lift Kit w/ Shock Extensions

JT Mojave Only

FabTech 2in Trail Lift Kit w/ Shock Extensions - JT Mojave Only
INCLUDED IN PRICE

Product Resources

Features & Product Details

This Gladiator Mojave lift kit provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. The Mojave lift kit has been tuned with proper dual rate coil springs to work in conjunction with the Fox 2.5 Internal bypass shocks for a superior ride quality.

The system is a complete short arm suspension that utilizes the factory lower control arm mounts for an easy installation. The Fabtech lower link arms are constructed of thick wall steel tubing that are guaranteed never to bend. They come with large polyurethane bushings on one end with internal threads on the other to accept the groundbreaking Fabtech 5 Ton Joint® for longevity and a quiet ride.

Fabtech’s dual rate coil springs are corner specific to the Gladiator. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds.

The heart of the factory Jeep Mojave suspension is the Fox 2.5 Internal Bypass shocks. This Fabtech lift kit retains those shocks with heavy duty extension brackets that are designed for rugged offroad use. The Fox hydraulic bump stops are also retained, and the bump stop pads are relocated to work in conjunction with the new ride height for proper suspension travel operation.

To address the steering geometry with the increased ride height, a Draglink Flip kit along with a heavy-duty Track Bar bracket is included. This relocates the Gladiator Mojave steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions.

The rear Gladiator suspension receives a heavy-duty Track Bar bracket to center the axle under the vehicle with the new ride height and help retain the factory roll center of the vehicle.

This quality short arm suspension for the Jeep Gladiator Mojave is an excellent choice for owners that want to utilize the factory Fox shocks but want to run a bigger tire for maximum offroad capabilities.

Each Fabtech component has been designed with specific features and benefits that create this quality suspension system.

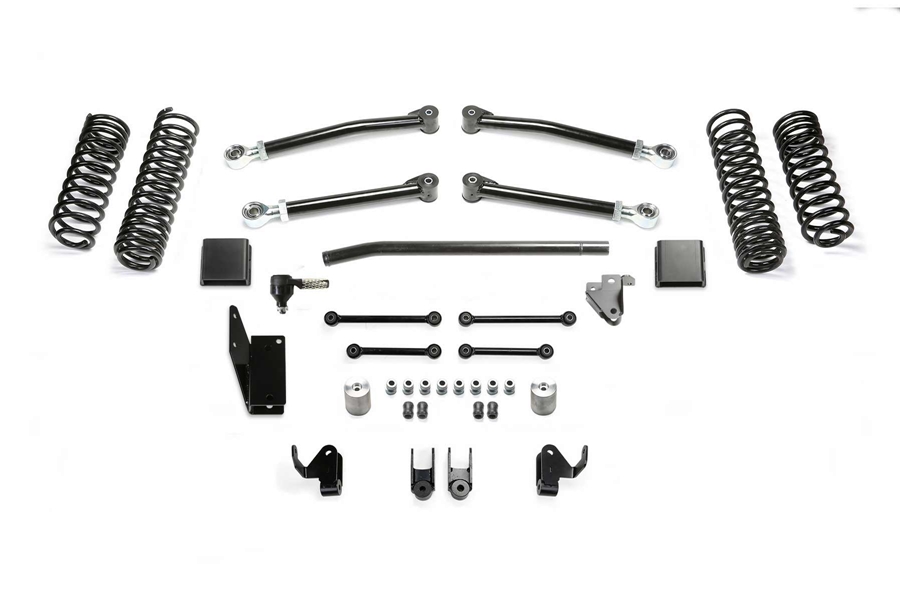

What’s in the system

  • Front 1.75" OD .250 wall Link Arms
  • Rear 2.0" OD .313 wall Link Arms
  • Front & Rear Dual Rate Coil Springs
  • Fox Shock Extension Mounts
  • Fox Hydraulic Bump Stop Mounts
  • Draglink Flip Kit
  • Front & Rear Track Bar Bracket
  • Front & Rear Sway Bar Links
  • Specifications

    Brand: Fabtech
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard
