Motobilt Dana 44 Front Axle Truss - Bare Steel

JK Rubicon

Product Resources

Fitment Details

Features & Product Details

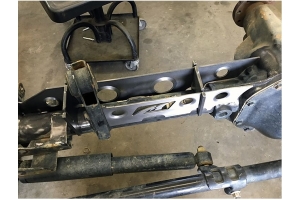

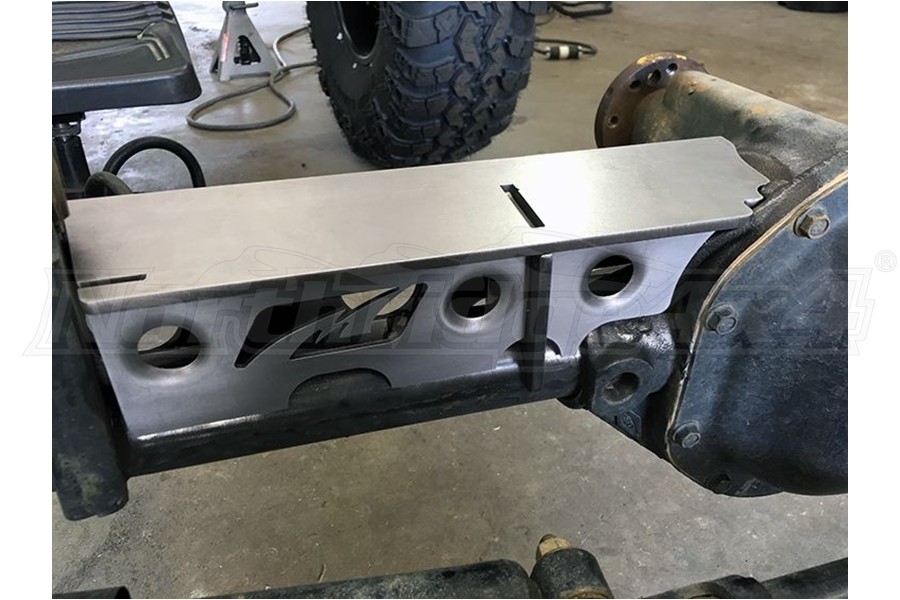

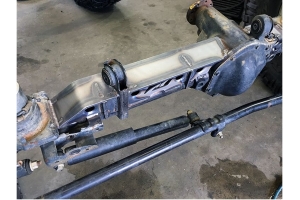

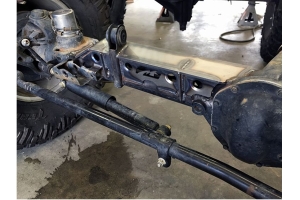

The Motobilt Dana 44 front axle truss is a great way to beef up the axle tubes on your Jeep. The Motobilt Dana 44 front axle truss system is a quick way to add strength and style to your Jeep. The Motobilt truss wraps around the stock upper passenger side link and extends out to both the driver and passenger side coil spring mounts for added strength throughout the length of the axle. You will see in some of the pictures that the truss fits very tight.

We have noticed some slight differences in the axles from Jeep. Some slight grinding may be required during the installation process. The top caps are CNC cut from 1/4-inch-high strength steel plate and is slotted to align the front and back vertical caps. The front and rear caps are CNC cut from 1/8-inch high steel plate.

The plates are dimpled to add strength and cross section width to the parts. Essentially, we can keep the axle a little lighter and make it look very cool with the dimple die holes. The kit includes a short and long side 1/4-inch top cap, two 1/4-inch vertical supports, and five 1/8 inch front and back dimpled plates. This kit requires an experienced welder to install on the vehicle.

Top caps are CNC cut from 1/4-inch-high strength steel plate

Front and rear caps are CNC cut from 1/8-inch-high steel plate

Includes short and long side 1/4-inch top cap and 2 1/4-inch vertical supports and 5 1/8 inch front and back dimpled plates

Sold as kit

Note:

This kit requires 3-inch bump stop extensions to keep the truss from contacting the oil pan. Bump stop extensions would be used to keep larger tires like 35 and up from contacting the fenders when articulated

This kit requires an experienced welder to install on the vehicle
