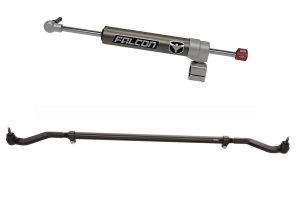

Steer Smarts Tie Rod and Teraflex Stabilizer Package

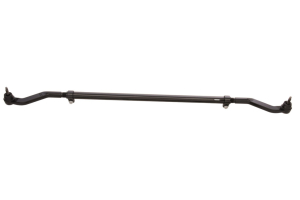

Jeep Steer Smarts Yeti XD Long Tie Rod Assembly Features:

High-quality YETI XD tie rod assembly

Enhances Steering for off-road applications

Heavy-duty chromoly 4130 steel adjuster tubing

Black powder-coat finish

JL-specific Ball Joints

Comes with premium seals

Features steel on steel bearings

Greaseable assembly

Will accommodate 17" wheels and larger

Straightforward installation

Sold individually

Made in the USA

Premium Steering Upgrade for Off-Roading If you're looking to further improve your off-road ready Jeep's performance, pick up the Steer Smarts Yeti XD Tie Rod Assembly today. Designed with proper clearance, this long tie rod assembly works in conjunction with your vehicle's upgraded chassis components for a perfect fit and consistent performance. Moreover, the included 30mm, 1 1/2 ton ball joints are the biggest and strongest available for the JK, so you won't have to worry about holding back on your favorite trails. Steer Smarts Reverse Pin technology prevents the linkage from flopping or rocking when you're testing the limits in your off-road warrior. This reverse pin was built right inside the socket, making for a superior design compared to weaker add-on supports seen on competitor's tie rods. Heavy-Duty Construction & Installation Info The Steer Smarts Yeti XD Tie Rod Assembly features impressive construction for superior strength and long-lasting functionality. The ball joints are crafted from cold-headed medium carbon alloy to provide incredible impact toughness for extreme duty usage. Steel on steel bearings provide ultimate fatigue strength, so they'll be able to handle the constant abuse of your Jeep's aggressive build. For even more strength, the rod ends at both the adjuster and draglink feature large 1-1/4" rolled threads which are much more durable than the OE threads. Additionally, the adjuster is made from 1/4" thick wall 4130 DOM steel tubing to ensure the tie rod assembly won't loosen. When it comes to installation, this entire assembly is completely bolt-on and should only take just a few minutes to complete.

Adjuster Tube Key Features:

Tie Rod adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

Designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle.

Internal threads and tube are also e-coated for long term serviceability.

Note: A minimum of 17” wheels is recommended.

STEER SMARTS™ is proud to present our most EXTREME steering linkage “The YETI XD™ Series” linkage for your Jeep JL Wrangler. We applied our 85 years of steering “lessons learned” to develop the strongest most durable linkage ever built for the Wrangler.

The YETI XD Tie Rod is a direct bolt-on for any JT Gladiator/JL Wrangler.  The YETI XD Installs just minutes and there is no need to modify or alter Jeep.

Features

YETI XD TIE ROD ASSEMBLY:

Easy bolt-on installation.

Engineered for proper clearance to other chassis components to eliminate interferences.

MADE IN THE USA

BALL JOINTS:

30mm 1 1/2 Ton ball joints

Cold headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.

Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability.

Steel on steel bearings provide exceptional ball joint wear resistance and robustness.

High quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.

Fully greaseable.

TIE ROD ENDS:

Powder coat over E-coat for a long-lasting appearance under harsh conditions.

External threads are e-coated for durability and long-term serviceability.

Forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength.

Forged from medium carbon high hardenability steel and heat treated for even greater buckling, impact, and fatigue strength.

Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.

Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

ADJUSTER TUBE:

Tie Rod adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.

Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.

Designed with right hand and left-hand threads for quick and easy adjustment when installed on the vehicle.

Internal threads and tube are also e-coated for long term serviceability.

Note: A minimum of 17” wheels is recommended.

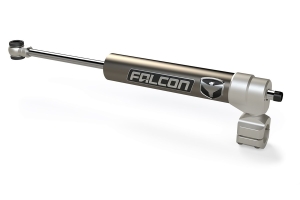

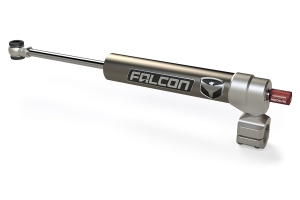

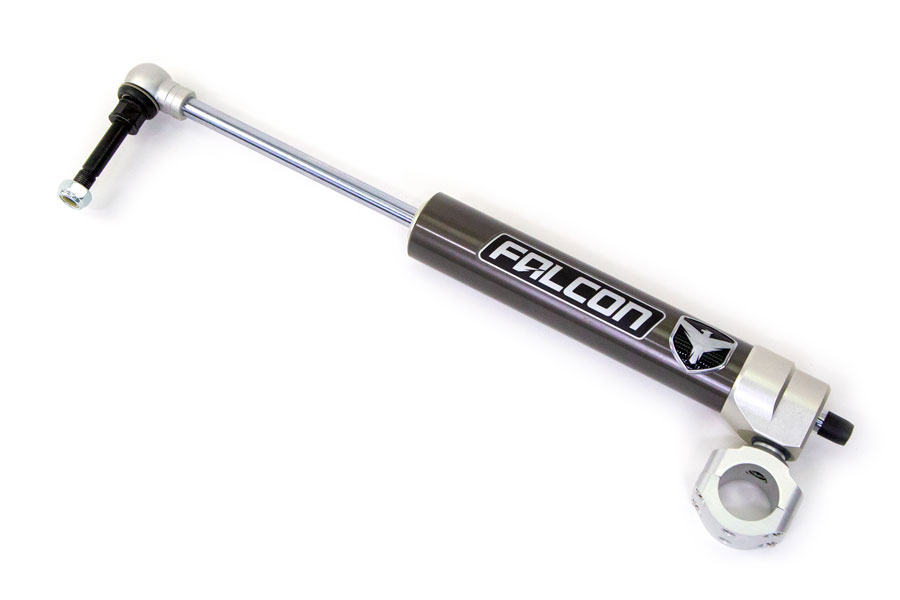

Teraflex JK Falcon Nexus EF 2.2 Adjustable Steering Stabilizer Features:

Premium Adjustable Steering Stabilizer

Three preset stiffness modes: Soft, Medium, and Firm

Maintains smooth movement under rapid turning conditions

Neutrally charged steering stabilization

Constructed using Aircraft-grade 6061-T6 aluminum alloy

5/8" Induction hardened chrome plated shaft

2.125" shock body

Internal hard anodized Billet piston

TeraFlex 3-Year Limited Warranty

Upgrade your Wrangler JK's balance and off-road control with the Falcon Nexus Adjustable Steering Stabilizer Improving your Jeep's ride and  eliminating steering wander is made easy with the high-performance Teraflex Falcon Nexus EF 2.2 Adjustable Steering Stabilizer. This steering stabilizer comes standard with 3 preset stiffness modes: Soft, Medium, and Firm. Each mode is optimized for either aggressive rock climbing, comfort for daily driving, or highway cruising while using a neutrally charged steering stabilization system. Moreover, these steering stabilizers are designed to meet the exact requirements of your JK Wrangler. This ensures proper weight and balancing for side-to-side steering response and an equal return to center dynamics. Engineered with a focus on fitment and function, these Falcon Steering Stabilizers deliver the best damping characteristics possible. Aircraft grade aluminum construction with corrosion-resistant coating will withstand the tests of time and rugged terrain Teraflex designed their Falcon nexus EF 2.2 Adjustable Steering Stabilizer using 6061-T6 aircraft grade aluminum to resist wear and protect the internal components of the shock. The 2.125" shock body and 5/8" induction hardened chrome plated shaft provides impressive heat dissipation even during extreme off-road applications. An internal hard anodized Billet piston provides even more strength and durability, making this a no-brainer aftermarket mod for any Jeep owner. When it comes to installation, a moderate level of mechanical skills is recommended. Expect this install to take up to 2 hours with a medium degree of difficulty. See the quick start guide for further details.

Notes:

NOT compatible w/ TeraFlex High Steer Systems (# 4391000 or # 4390975 or # 4390875).

The Falcon Nexus EF 2.2 Fast Adjust Steering Stabilizer is also available to fit the stock 1-3/8” tie rod (# 01-02-22-110-138).

A non-adjustable Falcon Nexus EF 2.1 Steering Stabilizer is available for the stock 1-3/8” tie rod (# 01-02-21-110-138) or a HD 1-5/8” (42mm) tie rod (# 01-02-21-110-158).

NEXUS EF FEATURES & BENEFITS:

• JK/JKU specific steering stabilizer
• Equal Force (EF) side-to-side resistance for consistent steering wheel response
• Allows for balanced return to center equilibrium
• Maintains smooth movement under extended & rapid turning maneuvers

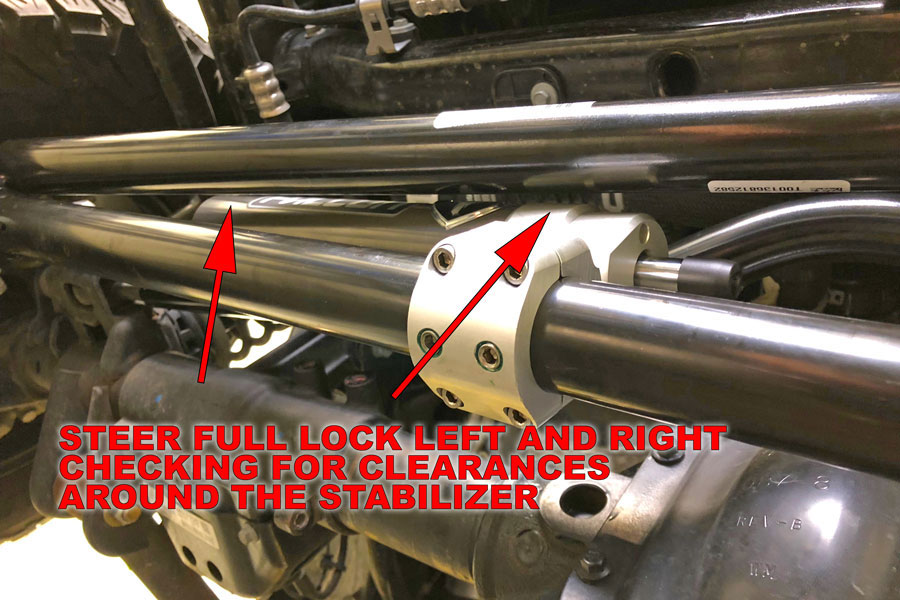

• Optimized fitment for clearance during full suspension travel & articulation

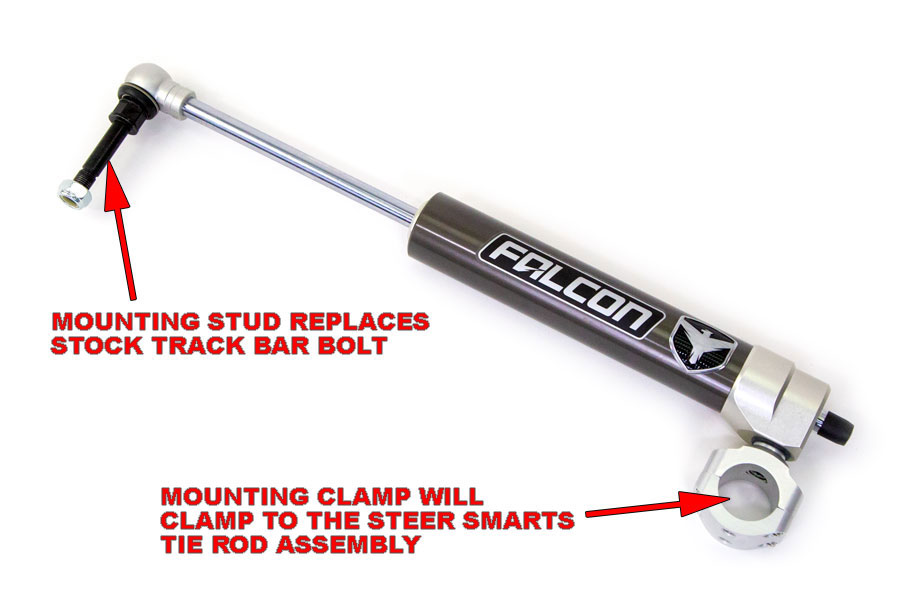

• OEM style sealed rod end joint mounting provides direct responsiveness

• 6061-T6 aluminum alloy shock body resists wear & protects internal components while providing superior heat dissipation
• Smooth honed internal shock body surface for long term performance
• 2.125” shock body provides optimal performance
• Low-profile body cap optimized for maximum clearance & unobstructed suspension travel

• 5/8” induction hardened chrome plated shaft resists rock damage & corrosion as well as prevents shaft buckling
• No shaft displacement issues (no external reservoir required)
• Maximum shaft diameter allows for more precise tuning
• Hard anodized billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring
• Digressive linear piston & base valve technology
• Inline OGS Oil/Gas Separator prevents cavitation

• Red Line full synthetic shock oil with high viscosity index of 519 for consistent performance across all temperatures & reduced shock fade
• Synthetic formula also contains special anti-wear & lubricity agents for excellent thermal stability
• 1,000-hour salt spray corrosion resistance test on all hardware

• Serviceable & rebuildable (factory serviced)
• Built in-house at the TeraFlex Falcon Shocks Division
• Patent pending design
• 3-year warranty

NOTES:

• NOT compatible w/ TeraFlex High Steer Systems (# 4391000 or # 4390975 or # 4390875).

• The Falcon Nexus EF 2.1 Steering Stabilizer is also available to fit the stock 1-3/8” tie rod (# 01-02-21-110-138).

• An adjustable Falcon Nexus EF 2.2 Fast Adjust Steering Stabilizer is also available for the stock 1-3/8” tie rod (# 01-02-22-110-138) or a HD 1-5/8” (42mm) tie rod (# 01-02-22-110-158).
