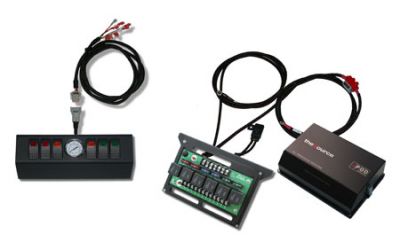

sPod 6 Switch and Source System with Air Gauge

97-02 TJ

This item is no longer available.

Does not fit your
1998 Jeep Cherokee XJ SE

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

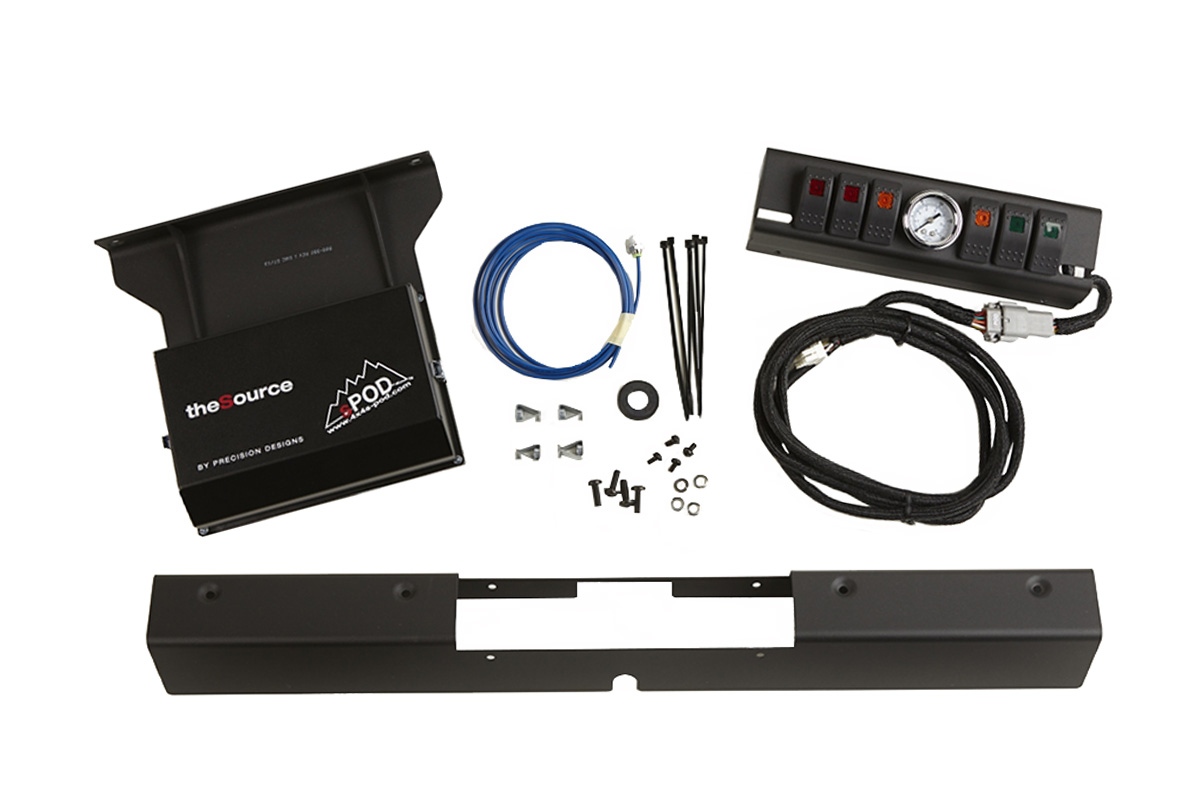

Each system includes the following:
All required mounting brackets and hardware. System will come pre-wired ready to install.

Included:
Switch panel, header, six Contura switches, 2 Red, 2 Amber and 2 Green actuators (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
Complete Air Gauge kit 0-200 psi Air Gauge w/Quick Release Camozzi fittings and 10' of high pressure connection line.

All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

The Source 6 Circuit power distribution system includes:

12 position terminal block for accessory attachment

6 Bosch style cube style relays (SPST 40amp) (plug-in style)

6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied

6 Diodes to protect sensitive accessories such as LED lights from "field collapse"

Inline 50amp manual resetting circuit breaker

8 gauge power leads with crimped and soldered terminal for connection to the battery

Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!

Fuse for LVCO which can be removed to bypass the LVCO

Mounting bracket for Jeep Wranglers
