sPOD 6 SWITCH 2-1/16IN DIA. EMPTY GAUGE HOLE WITH DUAL LIT LED SWITCHES BLUE (Part Number: )
sPOD 6 SWITCH 2-1/16IN DIA. EMPTY GAUGE HOLE WITH DUAL LIT LED SWITCHES BLUE
JK
sPOD 6 SWITCH 2-1/16IN DIA. EMPTY GAUGE HOLE WITH DUAL LIT LED SWITCHES BLUE (Part Number:620-07LT-LEDB)
Write a Review | Q&A
Part # 620-07LT-LEDB
$520.00

Product will ship from manufacturer, average time to ship: 1 business days

Product Resources

Features & Product Details

Each system includes the following:
All required mounting brackets and hardware.
System will come pre-wired ready to install.

Included:

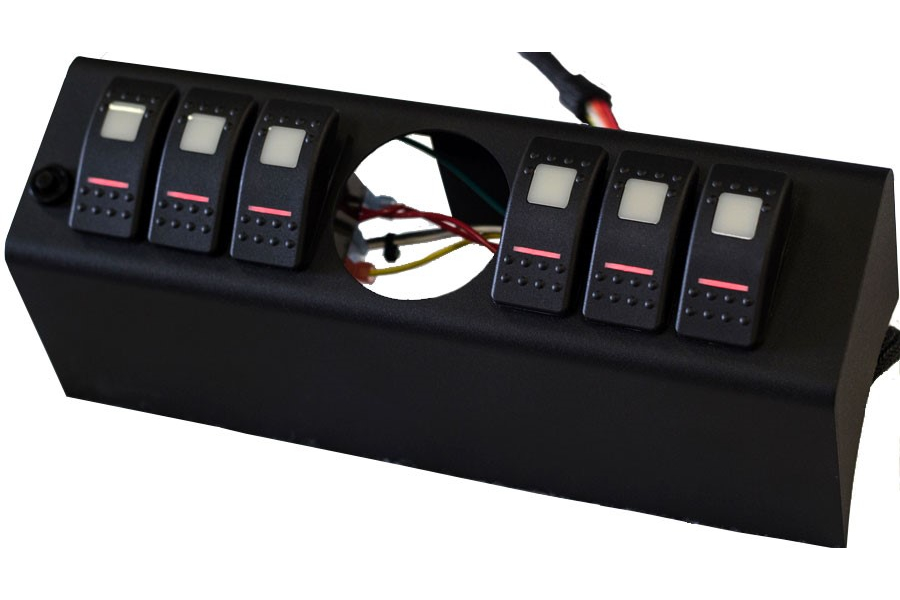

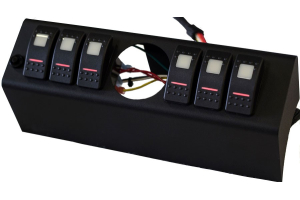

Switch panel, six Double light LED Contura switches (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.

All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

The Source 6 Circuit power distribution system includes:

  • 12 position terminal block for accessory attachment
  • 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
  • 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
  • 6 Diodes to protect sensitive accessories such as LED lights from "field collapse"
  • Inline 50amp manual resetting circuit breaker
  • 8 gauge power leads with crimped and soldered terminal for connection to the battery
  • Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!
  • Fuse for LVCO which can be removed to bypass the LVCO
  • Mounting bracket for Jeep Wranglers
  • Highlights of the dual LED option:

  • Gives the operator a choice of having a night lighted switch.
  • The lower lighted portion of the switch is fully controlled by the operator.
  • Prevents from tapping into the OEM electrics.
  • Choices of switch LED colors Red, Green, Blue and Amber.
  • No extra wiring required by the installer or customer.
  • The upper light still lights up only when the switch is in the on position.
  • LED's are much dimmer and less distracting
  • LED's draw much less current
  • LED's have a much longer life span than incandescent lights.
  • Specifications

    Brand: sPOD
    Capacity: 6 Switches
    Color: Blue
    Hardware Included: Yes
    Includes Gauges: No
    Includes Genesis Adapter: No
    Includes Switches: Yes
    Location: Above Rear View Mirror
    Switch Illumination: LED
    Wiring Included: Yes
    Plug N Play: Yes
    QTY: 6
    Shape: Rectangular
    Mfgr. Warranty: 1 Year Limited
    Condition: New Product
