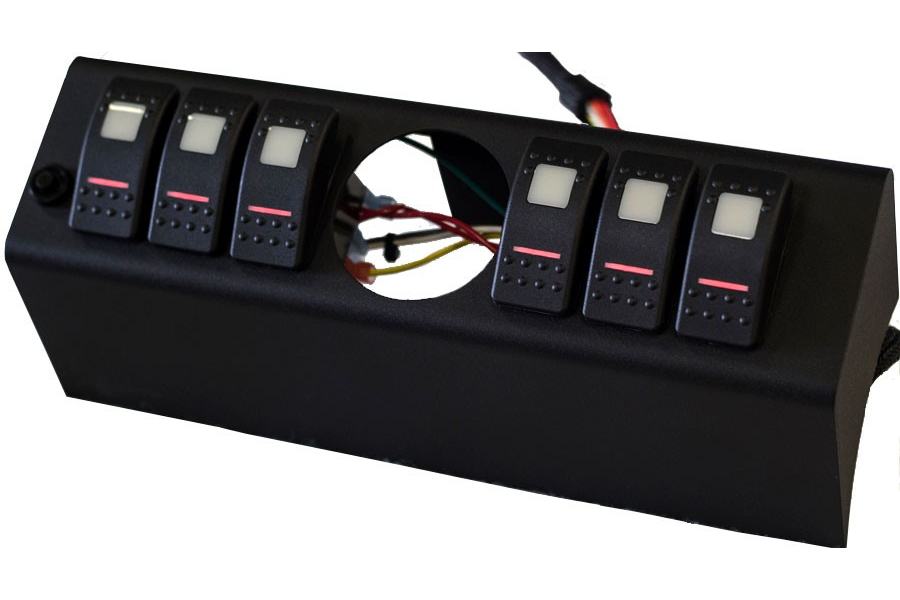

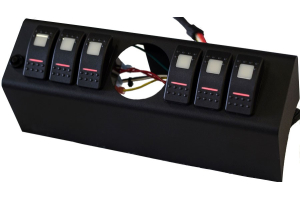

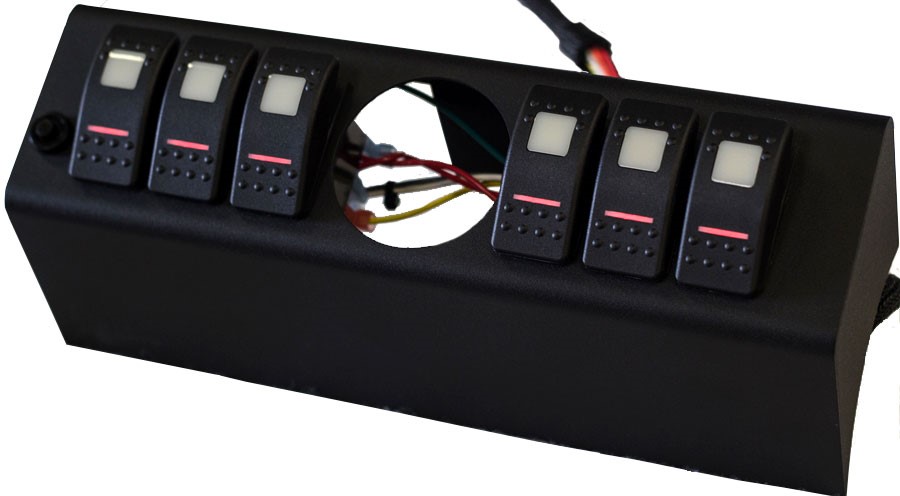

When adding electronic devices or accessories to your off-road vehicle, you can have control of them in an organized, and clean manner without having a rats nest of wiring everywhere. This is the S-POD Switch and Source System with a 2-1/16" gauge hole that comes pre-assembled with 6 Contura switches that are already pre-wired and ready to install. These switches will come in a green finish, and they will come pre-wired employing 18-gauge wires. The ends of these wires will come with a Deutch automotive connector. The panel will come with a 2-1/16" gauge hole that will give the user the option to mount another gauge to their liking for further monitoring. Additionally, the wires are wrapped in a high-temperature abrasion resistant nylon braided sleeving. Users will be provided with all the necessary hardware and brackets to make for a ready installation.
The Source 6 Circuit power distribution system includes:
12 position terminal block for accessory attachment
6 Bosch style cube style relays (SPST 40amp) (plug-in style)
6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
6 Diodes to protect sensitive accessories such as LED lights from "field collapse"
Inline 50amp manual resetting circuit breaker
8 gauge power leads with crimped and soldered terminal for connection to the battery
Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!
Fuse for LVCO which can be removed to bypass the LVCO
Mounting Bracket
Highlights of the dual LED option:
Gives the operator a choice of having a night lighted switch.
The lower lighted portion of the switch is fully controlled by the operator.
Prevents from tapping into the OEM electrics.
Choices of switch LED colors Red, Green, Blue and Amber.
No extra wiring required by the installer or customer.
The upper light still lights up only when the switch is in the on position.
LED's are much dimmer and less distracting
LED's draw much less current
LED's have a much longer life span than incandescent lights.
