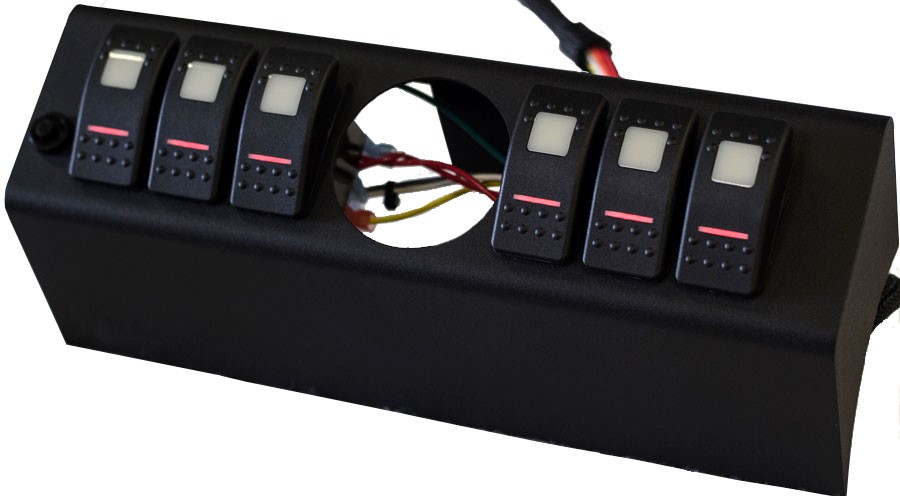

sPOD 6 SWITCH 2-1/16IN DIA. EMPTY GAUGE HOLE WITH DUAL LIT LED SWITCHES RED (Part Number: )
sPOD 6 SWITCH 2-1/16IN DIA. EMPTY GAUGE HOLE WITH DUAL LIT LED SWITCHES RED
JK
sPOD 6 SWITCH 2-1/16IN DIA. EMPTY GAUGE HOLE WITH DUAL LIT LED SWITCHES RED (Part Number:620-07LT-LEDR)
Write a Review | Q&A
Part # 620-07LT-LEDR
$520.00

Product will ship from manufacturer, average time to ship: 1 business days

Product Resources

Features & Product Details

When adding electronic devices or accessories to your off-road vehicle, you can have control of them in an organized, and clean manner without having a rats nest of wiring everywhere. This is the S-POD Switch and Source System with a 2-1/16" gauge hole that comes pre-assembled with 6 Contura switches that are already pre-wired and ready to install. These switches will come in a red finish, and they will come pre-wired employing 18-gauge wires. The ends of these wires will come with a Deutch automotive connector. The panel will come with a 2-1/16" gauge hole that will give the user the option to mount another gauge to their liking for further monitoring.  Additionally, the wires are wrapped in a high-temperature abrasion resistant nylon braided sleeving. Users will be provided with all the necessary hardware and brackets to make for a ready installation.

The Source 6 Circuit power distribution system includes:

  • 12 position terminal block for accessory attachment
  • 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
  • 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
  • 6 Diodes to protect sensitive accessories such as LED lights from "field collapse"
  • Inline 50amp manual resetting circuit breaker
  • 8 gauge power leads with crimped and soldered terminal for connection to the battery
  • Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!
  • Fuse for LVCO which can be removed to bypass the LVCO
  • Mounting Bracket
  • Highlights of the dual LED option:

  • Gives the operator a choice of having a night lighted switch.
  • The lower lighted portion of the switch is fully controlled by the operator.
  • Prevents from tapping into the OEM electrics.
  • Choices of switch LED colors Red, Green, Blue and Amber.
  • No extra wiring required by the installer or customer.
  • The upper light still lights up only when the switch is in the on position.
  • LED's are much dimmer and less distracting
  • LED's draw much less current
  • LED's have a much longer life span than incandescent lights.
  • Specifications

    Brand: sPOD
    Capacity: 6 Switches
    Color: Red
    Hardware Included: Yes
    Includes Gauges: No
    Includes Genesis Adapter: No
    Includes Switches: Yes
    Location: Above Rear View Mirror
    Switch Illumination: LED
    Wiring Included: Yes
    Mfgr. Warranty: 1 Year Limited
    Condition: New Product
    Return Policy:
    Standard
