sPod 6 Switch Panel and Source System w/ Genesis Adapter (Part Number: )

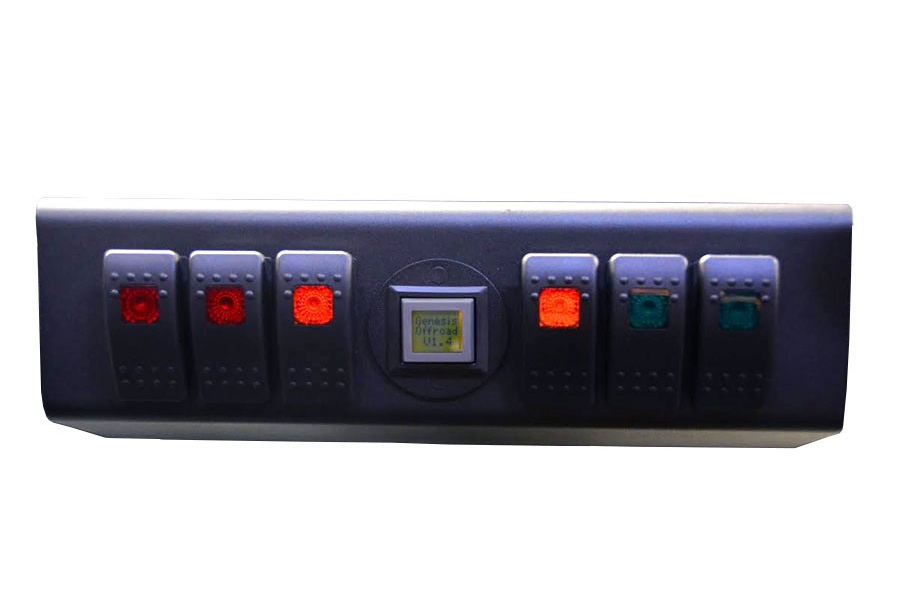

sPod 6 Switch Panel and Source System w/ Genesis Adapter
JK
sPod 6 Switch Panel and Source System w/ Genesis Adapter (Part Number:630-07)
Write a Review | Q&A
Part # 630-07
$455.00

Product will ship from manufacturer, average time to ship: 1 business days

Product Resources

Features & Product Details

When adding electronic devices or accessories to your off-road vehicle, you can have control of them in an organized, and clean manner without having a rats nest of wiring everywhere. This is the S-POD Switch and Source System that comes pre-assembled with 6 Contura switches that are already pre-wired and ready to install. These switches will come with 2 amber, 2 red, and 2 green switches and they will employ 18-gauge wires implemented in a 2-piece wiring harness with 8 multi-colored leads.  The ends of these wires will come with a Deutch automotive connector. Additionally, the wires are wrapped in a high-temperature abrasion resistant nylon braided sleeving. Additionally, there will be a 2-1/16" gauge provision to allow the user to install the gauge type of their preference. Also, this panel will include the Genesis adapter for those who want to run the Genesis Screen.



The Source 6 Circuit power distribution system includes:

  • 12 position terminal block for accessory attachment
  • 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
  • 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
  • 6 Diodes to protect sensitive accessories such as LED lights from "field collapse"
  • Inline 50amp manual resetting circuit breaker
  • 8 gauge power leads with crimped and soldered terminal for connection to the battery
  • Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!
  • Fuse for LVCO which can be removed to bypass the LVCO
  • Mounting bracket
  •



    Specifications

    Brand: sPOD
    Capacity: 6 Switches
    Color: Multi Options
    Hardware Included: Yes
    Includes Gauges: No
    Includes Genesis Adapter: Yes
    Includes Switches: Yes
    Location: Above Rear View Mirror
    Switch Illumination: LED
    Wiring Included: Yes
    Mfgr. Warranty: 1 Year Limited
    Condition: New Product
