SPOD 6 SWITCH W/GENESIS ADAPTER AND DOUBLE LED SWITCHES SPOD & SOURCE SYSTEM Green

JK

This item is no longer available.

Set your vehicle to confirm fitment

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

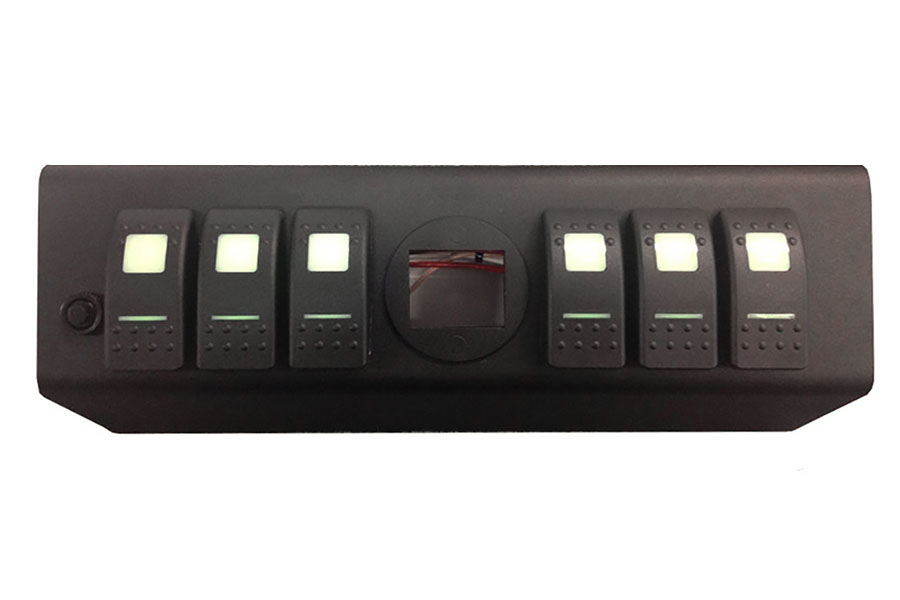

When adding electronic devices or accessories to your off-road vehicle, you can have control of them in an organized, and clean manner without having a rats nest of wiring everywhere. This is the S-POD Switch and Source System that comes pre-assembled with 6 Dual Green LED switches that are already pre-wired and ready to install. These switches will employ 18-gauge wires implemented in a 2-piece wiring harness with 8 multi-colored leads. The ends of these wires will come with a Deutch automotive connector. Additionally, the wires are wrapped in a high-temperature abrasion resistant nylon braided sleeving. Additionally, there will be a 2-1/16" gauge provision to allow the user to install the gauge type of their preference. Also, this panel will include the Genesis adapter for those who want to run the Genesis Screen.

The Source 6 Circuit power distribution system includes:

12 position terminal block for accessory attachment

6 Bosch style cube style relays (SPST 40amp) (plug-in style)

6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied

6 Diodes to protect sensitive accessories such as LED lights from "field collapse"

Inline 50amp manual resetting circuit breaker

8 gauge power leads with crimped and soldered terminal for connection to the battery

Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!

Fuse for LVCO which can be removed to bypass the LVCO

Mounting bracket

Highlights of the dual LED option:

Gives the operator a choice of having a night lighted switch.

The lower lighted portion of the switch is fully controlled by the operator.

Prevents from tapping into the OEM electrics.

Choices of switch LED colors Red, Green, Blue and Amber.

No extra wiring required by the installer or customer.

The upper light still lights up only when the switch is in the on position.

LED's are much dimmer and less distracting

LED's draw much less current

LED's have a much longer life span than incandescent lights.
