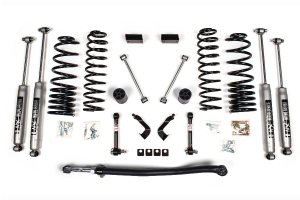

Designed to not only lift, but enhance the new Wrangler JL's all around performance, these new 3" systems come complete and ready to perform right out of the box. At each corner replacement ProRide coil springs, 3" in front and 1.25" in rear to level the stance. These springs provide additional ride height, along with allowing for increased suspension travel. The rear springs are dual rate to improve load capacity. They are paired to your choice of specially tuned NX2-series gas or FOX 2.0 performance series IFP gas shocks to offer a smooth ride and better damping in rough terrain. Along with the new coil springs and gas shocks, these 3" kits include front and rear bump stop extensions to properly limit suspension up travel. A heavy duty, pinch-bolt style adjustable front track bar is utilized to recenter the front axle and eliminate any unwarrented side-to-side movement. Front caster correct is provided by a set of lower cam lock washers or upgrade to the available HD adjustable control arms for more strength and adjustability. JKS quicker disconnects are supplied with the kit to unlock the front suspension's potential to flex while maintaining quiet on road operation with a heavy duty adjustable design and spherical bushings. Along with the sway bar disconnects bolt-on mounting posts are supplied for each side to easily store the sway bar up out of the way when hitting the trail. In the rear extended length sway bar links are supplied to keep the sway bar at the optimal operating angle and allow more droop travel when paired with matching rear NX2-series or FOX 2.0 performance series shocks.
As with all BDS Suspension products these are backed by Factory Protection Plus offering safety and security with a limited lifetime warranty and ESC system compatibility along with 5-year, 100,000-mile extended drivetrain warranty. Go with confidence and get more out of your new Jeep Gladiator JT with BDS Suspension.
Tire & Wheel Combinations
33x12.50 w/17x8 and Stock back spacing
35x12.50 w/17x8 and 4.5-5" back spacing
37x12.50 w/17x8 and Stock back spacing
*Trimming may be required*
Important Kit Notes
Does NOT work on diesel models.
Does NOT work with Mojave models.
Non-Rubicon comes from factory at lower ride height, will net slightly more lift final stance the same for all models
Improve the driving experience of your Gladiator JT with Fox 2.0 Performance Series IFP shock absorbers. Made in the USA, Fox 2.0 Performance Series shocks feature lightweight aluminum bodies and mono-tube valving. The IFP feature stands for Internal Floating Piston. IFP completely isolates the gas charge from the shock fluid to eliminate the possibility of aerating the fluid. This is a common problem with cheap twin-tube shocks where the gas charge is stored in a plastic bag that can quickly deteriorate. Not a problem with Fox Performance Series. In addition to separating the gas charge from the shock oil, IFP adds a measure of ride quality since the floating piston adds "cushion" during compression. The lightweight aluminum body also dissipates heat better than steel shocks. On or off-road, you'll be thrilled with the quality, performance, and ride of your Wrangler or Gladiator with Fox shocks.

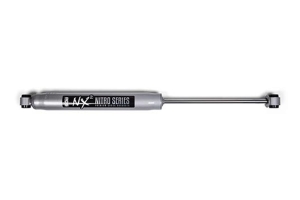

These NX² shocks give high-end performance at an affordable price. They use a pressurized nitrogen charged twin-tube design with 10-stage velocity sensitive valving for lightning fast dampening adaptive to whatever terrain you find yourself traversing on or off-road. The 2" bodied shocks use a large 1-3/8" fluon banded piston, self-lubricating seals and a 14mm hardened chrome shaft to help resist rock chips and corrosion. The ends are dual welded for increased strength. Polyurethane bushings and metal sleeves are included to make swapping over your shocks a breeze. These shocks are offered in various stem and eyelet bushing configurations for custom applications and available to work with all current BDS lift kits. The exterior of the shocks are finishes in a durable metallic silver paint with NX² branded decals.
Features
Durable metallic silver finish
Vehicle specific valving for better control
High-end performance at an affordable price
Pressurized nitrogen charged twin-tube design
Lightning fast dampening adaptive to terrain
Large fluon banded piston with self-lubricating seals
26.2 (extended) x 15.67 (collapsed) x 2 3/8 (body dia.)
Fox and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. The basic shocks design is based on Fox Racing Shox race products, but re-designed to turn your BDS equipped truck or Jeep into an off-road machine. Maximize handling control and shock performance with BDS dual shock kits. By doubling the available shock damping, these dual shock kits will not only give your truck an aggressive look, but will be able to throw down both on the street and off-road. Dual rear shock applications are available to improve towing performance. BDS dual shocks hoops can be used with BDS 5500 or Fox 2.0 series shocks.
These NX² shocks give high-end performance at an affordable price. They use a pressurized nitrogen charged twin-tube design with 10-stage velocity sensitive valving for lightning fast dampening adaptive to whatever terrain you find yourself traversing on or off-road. The 2" bodied shocks use a large 1-3/8" fluon banded piston, self-lubricating seals and a 14mm hardened chrome shaft to help resist rock chips and corrosion.
The ends are dual welded for increased strength. Polyurethane bushings and metal sleeves are included to make swapping over your shocks a breeze. These shocks are offered in various stem and eyelet bushing configurations for custom applications and available to work with all current BDS lift kits. The exterior of the shocks are finishes in a durable metallic silver paint with NX² branded decals.
Durable metallic silver finish
Vehicle specific valving for better control
High-end performance at an affordable price
Pressurized nitrogen charged twin-tube design
Lightning fast dampening adaptive to terrain
Large fluon banded piston with self-lubricating seals
