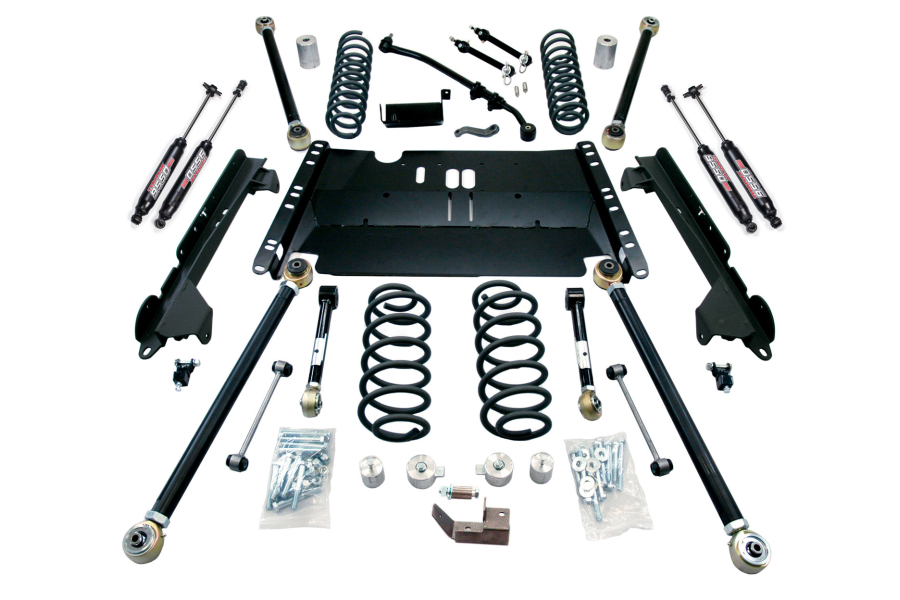

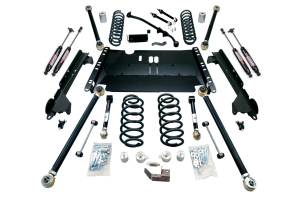

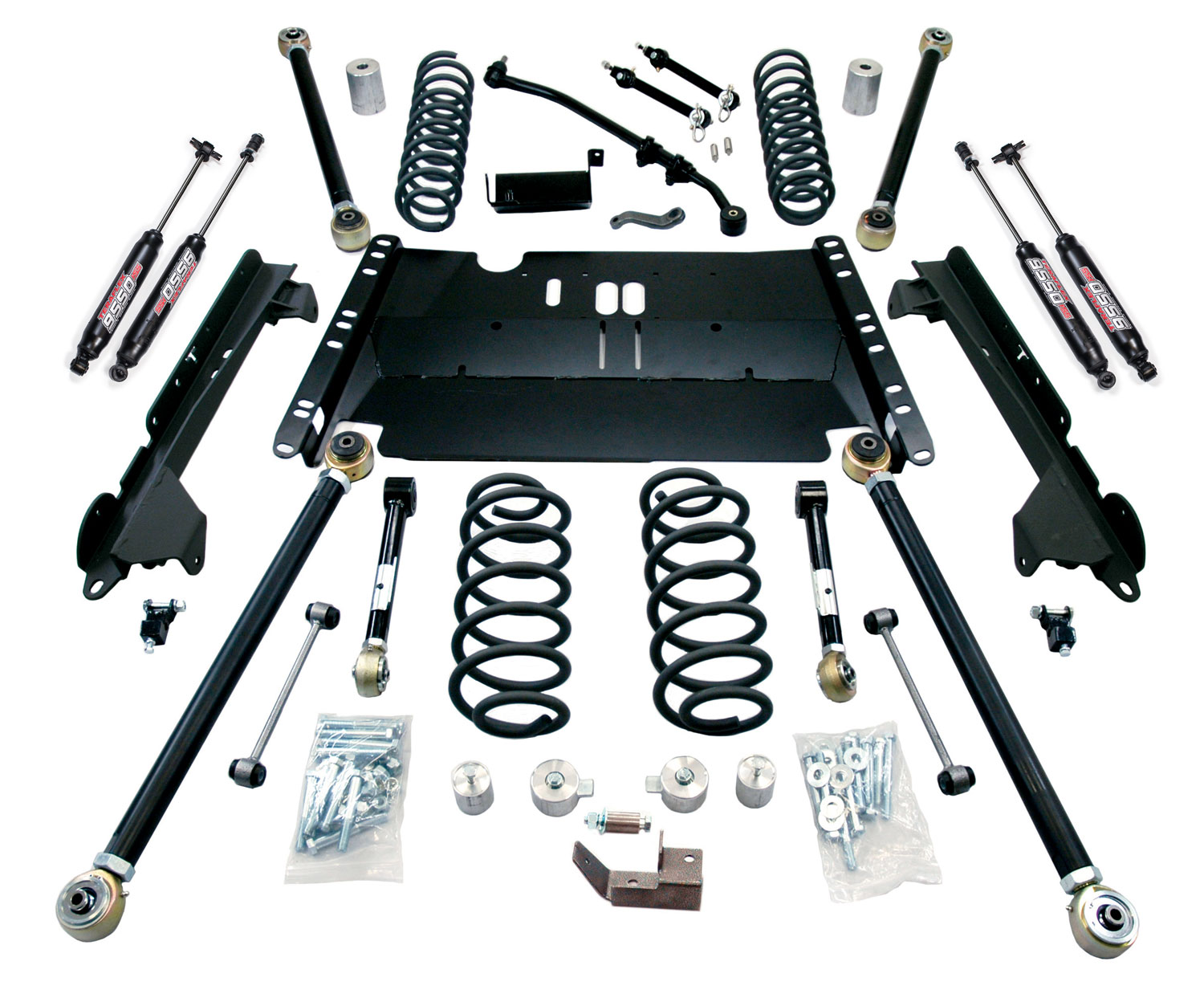

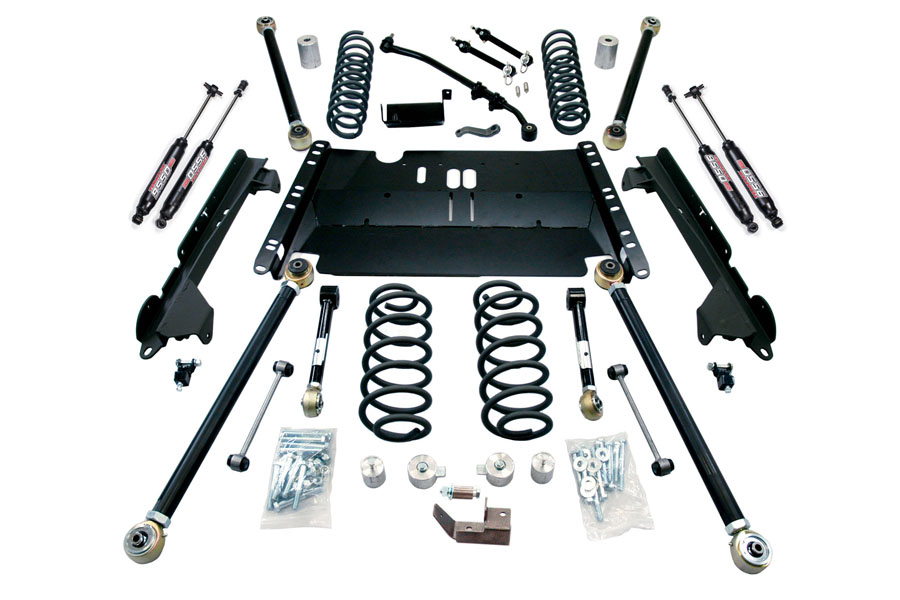

TeraFlex LCG (Low Center-of-Gravity) Long Arm Suspension Systems are engineered for hardcore Jeepers who don-t want to give up on-road comfort and control in their TJ Wrangler/Unlimited. These complete systems include all necessary components including LCG Long Arm Brackets. TeraFlex Enduro LCG Long Arm Suspension Systems are designed for the off-road enthusiast who wants to increase both trail and on-road performance with moderate modifications to the vehicle frame.
The Enduro LCG uses the same lower adjustable LCG Long Control Arms & Brackets as the Pro LCG while the adjustable Rear Upper Short Control Arms bolt to the factory upper control arm mounting points. The Enduro LCG provides more suspension and steering adjustability than a standard short arm kit.
Transform the handling of your Jeep both on and off-road!
The long and short adjustable Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angles anti-squat geometry and tire position. On 3-5" lifts LCG Long Arm Brackets and/or 4-Link Rear Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles. This reduces bushing stress during extreme droop as well as shock load transferred through the LCG Long Control Arms. The HD Adjustable Front Track Bar Drop Pitman Arm (4"+) and Rear Track Bar Bracket improve steering response center the axles to optimize vehicle roll center and reduce body roll to for unsurpassed handling. This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain.
These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat. TeraFlex suspension systems provide reduced noise vibration and harshness (NVH). TeraFlex Enduro LCG Long Arm Suspension Systems can be installed on Friday wheeled on Saturday and driven to church on Sunday!
Features:
4" Lift = 35" Tire
Optimized for trail use while increasing on-road comfort and stability
Adjustable Rear Upper Short Control Arms and Lower LCG Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 0-4" and 3-5" lift kits, respectively
Rear Upper Short Control Arms bolt to the factory control arm mounting brackets
On higher lifts, Lower LCG Long Arm Brackets reposition the frame-end control arm mounting points to relax suspension link angles. This reduces bushing stress during extreme droop as well as shock load transferred through the LCG Long Control Arms
LCG Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits
HD Adjustable Front Track Bar, Drop Pitman Arm (4"+), and Rear Track Bar Bracket improve steering response, center the axles to optimize vehicle roll center, and reduce body roll to for unsurpassed handling LCG Long Control Arm Suspension Systems:
Maximum ground clearance w/ a Low Center-of-Gravity (LCG)
Dependable performance w/ zero worries
Positive, responsive handling w/ reduced NVH
Easy-to-install Lower LCG Long Arm Brackets don-t hinder transfer case access
Full range of movement for off-road flex and articulation
Fits all OEM axles including Dana 30, 35, 44, and Rubicon 44 (call for other axles)
Notes:
REQUIRES aftermarket wheels w/ 4.5'' backspacing or less or Offset Wheel Adapters (# 1005200) for stock wheels NOT INCLUDED.
4''+ lifts require CV-style driveshaft and Extreme Short Shaft Slip Yoke Eliminator Kit (# 4444400) or Short Shaft Slip Yoke Eliminator Kit (# 4444401). Highly recommended for 3'' lift. NOT compatible w/ TJ Wrangler/Unlimited Rubicon models
REQUIRES cutting/removal of factory control arm bracketry to install LCG Long Arm Brackets.
REQUIRES cutting and welding. Alignment REQUIRED.
2003-2006 TJ Wrangler/Unlimited Rubicon models REQUIRE BellyUp Compressor Mount Bracket Kit (# 4847400).
Adjustable Front Upper Short Control Arm Kit (# 1613800) available separately.
Pro LCG High Steer System (# 1849000) available separately. Recommended for 4''+ lifts.
REQUIRES longer shocks (NOT INCLUDED in base kit)
Falcon Series 3.0 Piggyback Shock Kit (# 04-01-30-400-304) or TeraFlex 9550 VSS Twin-Tube Shock Kit (# 1545270) recommended
