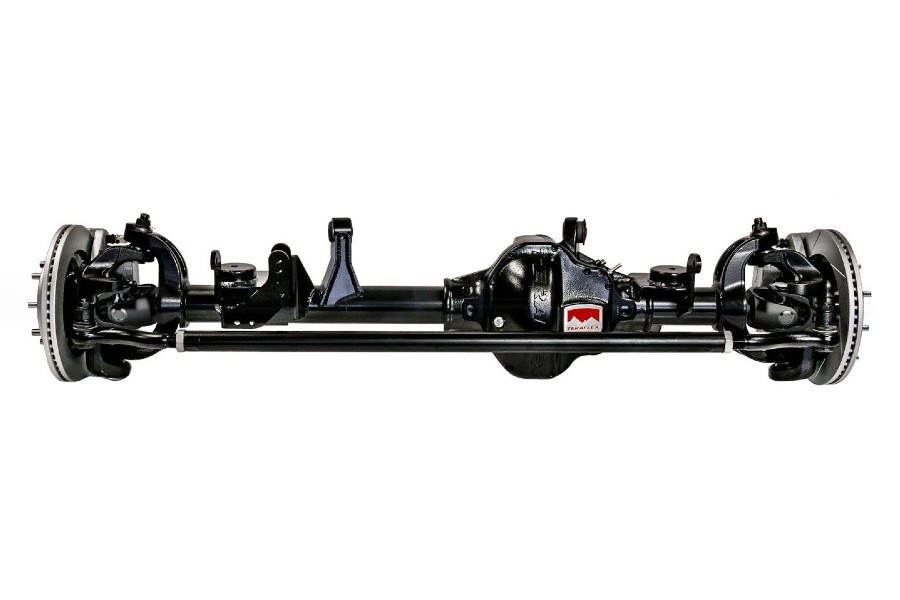

The unloaded Tera60 HD Front Axle Assembly w/ Unit Bearing includes unit bearings Super 60 bearings inner and outer axle shafts knuckle assembly ball joints brakes and sensors. Add your choice of ring and pinion gear ratio locker and carrier. TeraFlex HD Front Axle Housings are perfect for replacing bent broken or damaged axles in TJ Wrangler/Unlimited vehicles including Rubicon models.
Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles– weak areas. Tera60 HD Front Axle Housings are the ultimate upgrade for TJ models requiring maximum suspension up travel and compression. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength. Our heavy-duty axle housings feature smooth profile surfaces axle tubes all necessary mount brackets control arm bushings forged inner knuckles and more!
Features and Benefits
Sealed unit bearing assembly for long-term maintenance-free dependability
3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
63.5" WMS-WMS and 5x5.5" wheel bolt pattern
Includes Front Big Brake Kit w/ 13.3" Vented Rotors
Fixed spindle mount hub assembly
Tera60 specific high-pinion front axle housing design
Includes 1350 series pinion yoke
35-spline inner and outer axle shafts
Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
Oversized outer pinion bearing handles increased torque and high-load conditions
High-capacity housing holds maximum amount of oil
Asymmetric housing design for extra-long tube side strength
Pre-installed inner axle seals
HD forged inner knuckles w/ greater upper and lower section strength
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover
Smooth radius bottom design to glide over rocks and obstacles
Integrated lower control arm skid plates
High-flow oil passages
Reinforced front track bar mount (ties into spring pad) for greater strength
UV protected triple-stage powder coat for corrosion resistance
1/4"-thick CNC laser cut axle brackets for extreme strength
Integrating the front upper control arm mounts into the housing increases up travel an additional 2" compared to other aftermarket Dana 60 axles
Pre-installed upper control arm bushings
Proper pinion angle for lifted TJ applications
3-6" Lift features a raised pinion angle and raised track bar bracket
Pre-tapped hole on spring perch for bump stop extensions
Pre-drilled holes for limit straps and lower spring retainers
Retains all TJ ESP, ABS, and speedometer sensor capability
100% engineered, designed, and built in the USA w/ new components
1-Year/Unlimited Mileage Warranty
Note
REQUIRES driveshaft modifications.
