Spring Box $979.99

1 x Teraflex 4in Spring Box Kit - JK 4Dr
TER1404000

In stock!
Suspension System $70.99

1 x Teraflex 4in Front and Rear Bump Stop Extension Kit - JK
TER1954625

In stock!
Flex Arms $1,410.99

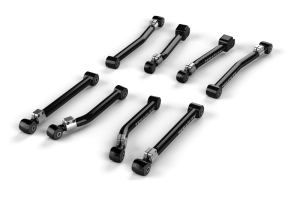

1 x Teraflex Alpine Short Control Arm Kit – 8-Arms (2-4in Lift) - JK
TER1415610

In stock!
Track Bar $322.99

1 x Teraflex Forged Adjustable Trackbar - Front - JK
TER1753418

In stock!

BUNDLE ASSEMBLY OPTIONS

Choose Shocks

$2,784.96

8352 entries5568 entries - 2025 Northridge4x4 Jeep Giveaway

Qualifies for
free shipping!

Set your vehicle to confirm fitment

2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # 1156401

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The TeraFlex JKU 4” Lift Suspension System w/ Eight (8) Adjustable Alpine Flexarms & Track Bar delivers the necessary components to lift your JKU to conquer the most extreme trails and conditions.

Every TeraFlex suspension system is engineered with drivability and performance in mind. Properly developed suspension geometry, roll center, load tuning ensure that all factory stability controls remain functional and within the parameters that Jeep originally engineered into the vehicle.

Not only do TeraFlex kits drive straight, but they will crawl over anything to get you there and back!

FITS:

• JKU Wrangler Unlimited (4-door)

SPECS:

• LIFT HEIGHT: 4”
• MAX TIRE DIAMETER: 37”

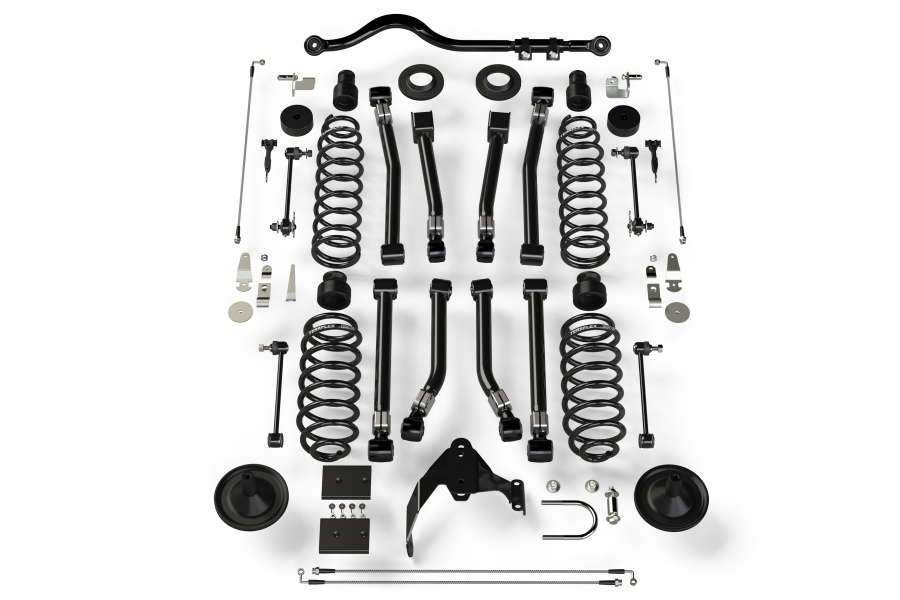

INCLUDES:

• 4” lift coil springs
• Fully adjustable Alpine flexarms – set of 8
• HD forged adjustable front track bar
• Bump stops
• Front & rear brake lines
• Front brake line anchor kit
• Front sway bar disconnects
• Rear track bar bracket
• Rear sway bar links
• All necessary hardware
• And more

NOTE:

• Requires aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels.

• 2012-2018 JK/JKU models require Exhaust Spacers (# 2610000) or other exhaust modification for proper driveshaft clearance.

• Driveshaft modifications are highly recommended with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (# 1744014).

INSTALL TIME: 8 Hours

Falcon SP2 2.1 Monotube Shocks deliver increased stability, improved ride quality, and comfort for daily driven Jeeps in a compact and affordable package. SP2 2.1 Shocks have been optimized for on- and off-road driving. “High-Value Performance” is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs.

SP2 Mode Adjust:

• Choose between Soft and Performance modes during install

• Tunes both compression and rebound

• Soft mode allows a partial bypass of the main piston for a softer ride

• During aggressive driving, Soft mode retains performance tuning for optimal handling

• Soft mode recommended for rough terrain/surfaces and cold weather

• Performance mode recommended for max on- and off-road handling, stability, and control

Falcon Jeep Shocks (all):

• Vehicle-specific shock absorbers

• Race-inspired performance for increased vehicle stability

• Improved dynamic roll control and low-speed damping

• Dramatic improvement in on-road comfort and off-road performance

• Optimized fitment for unobstructed suspension travel and articulation

• 2.3” shock body provides optimal performance (Series 2 and Series 3 Shocks)

• 2.125” shock body for high value performance (1.1 Monotube Shocks

• 6061-T6 aluminum alloy shock body resists Impact to protect internal components

• Smooth honed internal shock body surface for long-term performance

• 3/4” (Series 2 and Series 3 Shocks) or 1/2” (1.1 Monotube Shock) induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling

• Large shaft diameter provides a wide range of adjustment on adjustable shocks

• 1-piece energized Teflon bronze piston wear band

• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume

• VOD reduces shock bottoming at full compression or over uneven terrain

• OGS (Oil/Gas Separator) prevents cavitation

• Red Line oil for consistent performance across all temperatures

• Synthetic formula also contains special anti-wear and lubricity agents

• 1,000-hour salt spray corrosion resistance test on all hardware

• Serviceable and rebuildable (factory serviced)

• Designed, engineered, CNC machined, and assembled in-house from domestic and globally sourced components

• Patented design

• 3-year warranty

Falcon SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy to use 3-Position Fast Adjust Knob. Settings include Soft, Custom, and Firm. The Custom setting incorporates an 8-Position Micro Adjust Dial for more precise tuning between Soft and Firm. “High-Value Performance” is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs. Falcon Performance Shocks by TeraFlex. SP2 3.3 Fast Adjust: • SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics • 3-Position Fast Adjust Knob for large damping adjustments • Settings: Soft, Custom, Firm • Custom setting includes an 8-Position Micro Adjust Dial for finer damping adjustments • Ideal for daily driven Jeeps as well as the serious enthusiast wanting to adjust damping for all driving conditions JK: • JK corner-specific shock absorber w/ race-inspired performance • Front upper offset stud design provides maximum shock body to frame clearance during articulation • Outboard mounting increases clearance for lifted vehicles w/ raised track bar brackets • Rear shock body (all) and reservoir (piggyback) positioned on bottom eliminates shaft damage from rocks kicked up by the tires • Rear Shock Skid Plates available separately Piggyback: • Piggyback design increases oil and gas capacity for reduced heat • Moving gas charge to piggyback reservoir allows maximum amount of travel • Flows 6x more oil than restrictive reservoir hose designs • Eliminates common leakage issues found in banjo and swivel fittings • Front shock’s unique horizontal piggyback reservoir increases tire clearance • Cartridge Upgrade Kits are available separately

Features:

SP2 Mode Adjust:

Choose between Soft and Performance modes during install

Tunes both compression and rebound

Soft mode allows a partial bypass of the main piston for a softer ride

During aggressive driving, Soft mode retains performance tuning for optimal handling

Soft mode recommended for rough terrain/surfaces and cold weather

Performance mode recommended for max on- and off-road handling, stability, and control

Falcon Jeep Shocks (all):

Vehicle-specific shock absorbers

Race-inspired performance for increased vehicle stability

Improved dynamic roll control and low-speed damping

Dramatic improvement in on-road comfort and off-road performance

Optimized fitment for unobstructed suspension travel and articulation

2.3” shock body provides optimal performance (Series 2 and Series 3 Shocks)

2.125” shock body for high value performance (1.1 Monotube Shocks

6061-T6 aluminum alloy shock body resists Impact to protect internal components

Smooth honed internal shock body surface for long-term performance

3/4” (Series 2 and Series 3 Shocks) or 1/2” (1.1 Monotube Shock) induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling

Large shaft diameter provides a wide range of adjustment on adjustable shocks

1-piece energized Teflon bronze piston wear band

VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume

VOD reduces shock bottoming at full compression or over uneven terrain

OGS (Oil/Gas Separator) prevents cavitation

Red Line oil for consistent performance across all temperatures

Synthetic formula also contains special anti-wear and lubricity agents

1,000-hour salt spray corrosion resistance test on all hardware

Serviceable and rebuildable (factory serviced)

Designed, engineered, CNC machined, and assembled in-house from domestic and globally sourced components

Patented design

Notes(s):

Upgradeable to 3.5 aDAPT or 3.5 e-Adjust via Cartridge Upgrade Kits for quick compression adjustments. Sold separately

Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders – See instructions for proper configuration for your application.
