Teraflex Dana 44 Rear Axke 8-Lug Full-Float Conversion & Solid Big Rotors - 30-Spline
JK
Product Resources
Features & Product Details

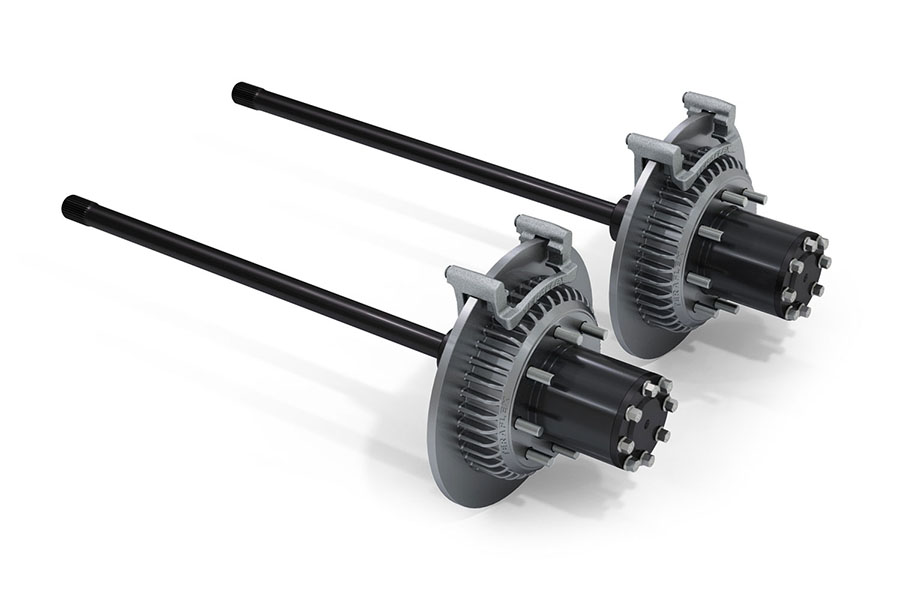

The factory rear JK axle and wheel bearing assembly naturally lends itself to bent axle shafts. Heavy wheels and oversize tires, high speed impacts, low range twisting and binding take their toll on factory style axle shafts. Even an upgraded 35 spline conversion shaft is subject to these same design limitations. The solution is the TeraFlex JK rear full float conversion. By utilizing a two wheel bearing design, vehicle weight is spread evenly across the forged 4140 chromoly spindles. Readily available industry standard bearings are oil bathed and require zero maintenance. Because the axle shaft no longer supports any vehicle weight, the case hardened 4340 chromoly shafts simply transfer the torque without the load stresses associated with impact and vehicle weight. All factory sensors are maintained and protected, and the OE park brakes as well as the calipers and pads are retained. TeraFlex 13.5” performance rotor and anchor bracket are included for increased and balanced braking.
Eliminate the weak link in your rear axle with this TeraFlex JK: Rear Axle 8-Lug Full-Float Conversion Kit. Oversized and heavier wheel/tire combos highspeed impacts and low range twisting and binding take a toll on JK Wrangler/Unlimited rear axle shafts and wheel bearing assemblies - even with upgraded 35-spline axle shaft conversions. All this stress can cause axle shafts to bend. The twin-bearing full-float design spreads vehicle weight evenly across the forged 4140 chromoly spindles removing vehicle weight from the axle shaft. The case-hardened 4340 chromoly shafts transfer torque to the wheels without the added stress of carrying the vehicle weight.
FEATURES:
NOTE:
