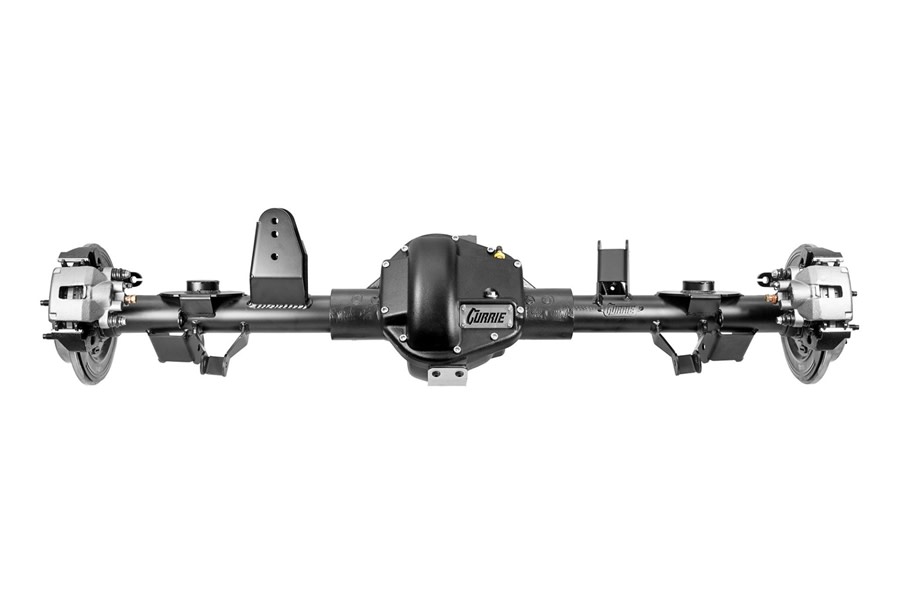

Currie Enterprises High 60 Pinion Rear Axle w/ Disc Brakes, 4.88 Gears and E-Lockers

The Currie® 60 complete bolt-in rear performance axle assembly for the 1997-2006 Jeep® TJ and LJ is built to the legendary Currie Standard, with exclusive features and a broad set of options that make the ideal choice for upgrading the off-road capabilities for your vehicle

Details:

Exclusive 60 Features:

High-Clearance Center Section with Rotated Cover Improves Obstacle Slide-Over

High-Pinion Design Raises the Driveshaft By 2-Inches for Additional Clearance

High Volume Flow-Thru Pinion Oiling System Keeps Bearings Bathed in Cool Oil

Rock Slider Low-Friction Skid Plate Sides Over Trail Obstacles with Ease

The Currie® 60 high-pinion performance axle for the Jeep Wrangler TJ, is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicle's factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint.

The Currie high-pinion, high-clearance center section with rotated cover delivers unmatched ground clearance, and improved obstacle slide-over by presenting a smooth curve, rather than the sharp edge found on other 60 housings

RockJock Skid Plate - Rock Slider - Integrated AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates

Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

Large 3 in. diameter x .5 in. wall axle tubes (left) are more than 2.5 times stronger than the stock Dana® 30 tubes (right)

Explorer 11.250-inch disk brakes with internal parking brake provide increased stopping power over the stock TJ drum brakes

Heavy-duty 3/16 inch brackets feature multiple mounting options for adjusting suspension geometry to accommodate a range of vehicle lifts

Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 60 looking its best

Specifications:

Notes:

Sway Bar - The factory TJ/LJ rear sway bar must be flipped side to side (installed upside down) to be used with a high pinion Currie 60. However, due to its design, the factory sway bar will interfere/limit the housings downward travel at full droop.
