Steinjager Crossover Steering Kit, Bare

NOTE: THESE ARE BARE METAL (i.e., NOT powder coated). If you want a powder-coated part, please refer to one of our many powder-coated parts.

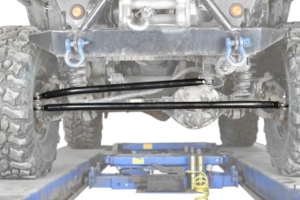

The Steinjager Crossover Steering Kit is a drastic upgrade from the factory steering. It is manufactured from 1.50" x 0.25" wall DOM tubing and is paired with 3/4" Chrome Moly Rod Ends. This kit will work with or without the factory sway bar. Grade 8 hardware is included.

The installation will require the spindles and pitman arm to be drilled out to 5/8". The adjustable length for this part is 35.6" to 36.6". If the dimensions from your pitman arm bolt hole to the passenger spindle bolt hole is out of this range, you will need a different pitman arm or our "Extended" Crossover Steering Kit (J0053712 through J0053729).

It would be best to have 4.00" or less of backspacing or a minimum 16" rim. Factory 15" rims may rub the Heim joints.

Made in the USA
