Rock Krawler 3in Pro-X 'No Limits' Coilover System
JT Rubicon 3.6L
Product Resources
Features & Product Details
The Rock Krawler JT 3.0 Pro-X Coil Over ”No Limits” System was specifically designed for Rubicon owners who want to retain their factory electronic sway bar disconnect feature. The No Limits kits also offer maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The "No Limits" front sway bar links allow Rubicon owners to use the factory sway bar disconnect function and still achieve maximum articulation.

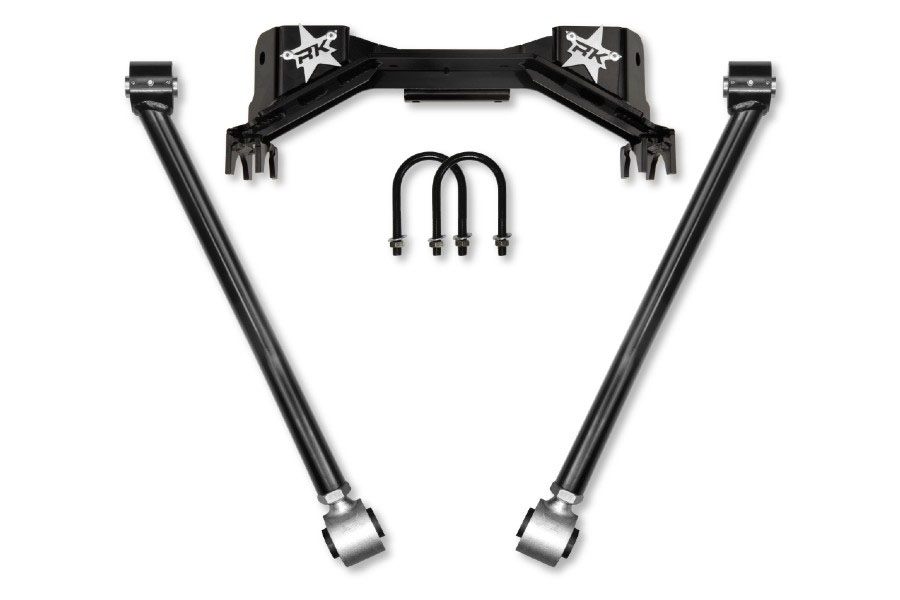

The triangulated 4 link rear assembly maintains the rear axle perfectly centered; allows for removal of the rear track bar, eliminates rear suspension bind, and the cross talk of the front and rear track bar arrangement greatly smoothing the highway ride. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. The Triple Rate front coils paired with our quad rate rears coils provide unmatched ride quality and off-road performance, while maintaining standard JT rear load capacities.
System Benefits:
Tire Fitment:
Sport and Overland with Full OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Sport and Overland with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
37”/38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
40” Tall Tires (3” Bump Stop Height Recommended)
Wheel Fitment:
Sport and Overland Wheel Fitment Recommendations
37”/38” Tall Tires - Recommend 3.5” of Backspacing
Rubicon or Sport with Wide Track Axles Fitment Recommendations
37”/38” Tall Tires - Recommend 4.5” of Backspacing
40” Tall Tires - Recommend 3.5” of Backspacing
General Notes:
*All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch).
*If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
*Designed to maintain 1/2" of rake on Rubicon Models
*As shown valid for OEM axles only
*If so equipped will require removal of rear shutter shock
*For tires larger than 37" or hard core off-road use, welding of the rear cradle to the axle tubes is required.
