Motobilt Fuel Pump Clamping Ring Kit

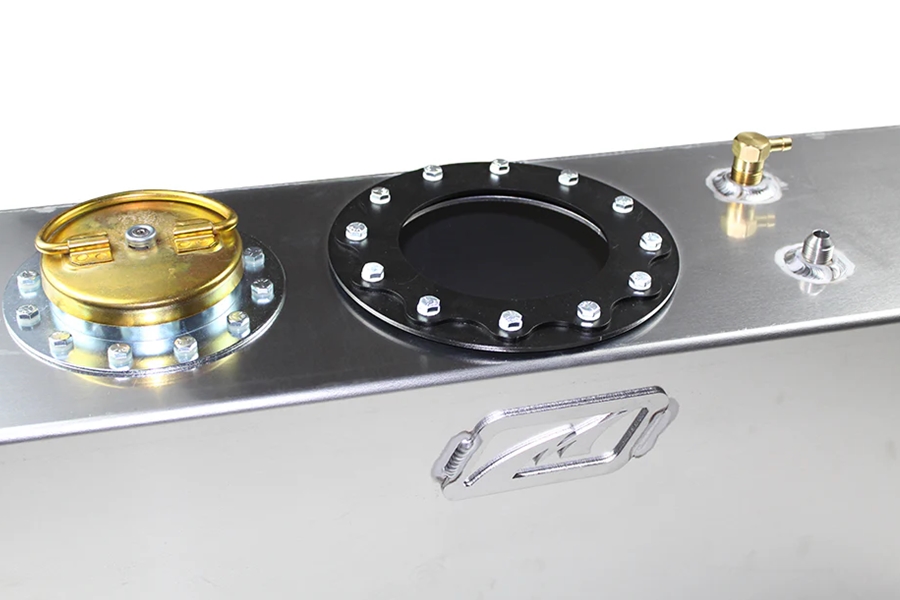

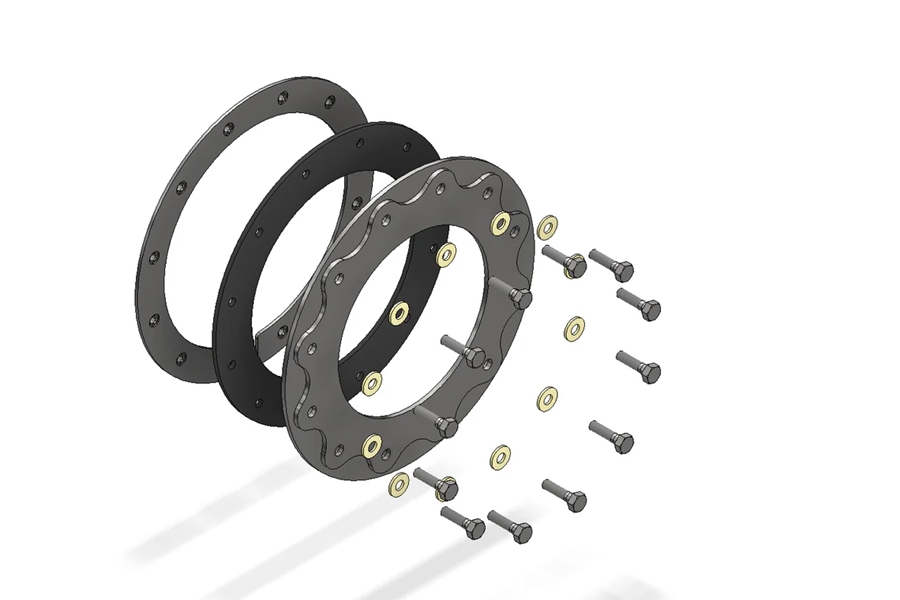

The Motobilt Jeep TJ Fuel Pump/Sending Unit Clamping ring is a quick and easy solution to install the factory fuel pump to an aftermarket fuel tank or fuel cell. The Motobilt Jeep TJ Fuel Pump/Sending Unit Clamping Ring is designed to be used with fuel cells like the RCI 2161a. Installing the ring is simple. You can use the adapter ring as a template to drill holes in your fuel tank. The kit is shipped with the upper clamp ring assembly, which is welded together on the bottom side. We have included pem serts on the inner ring to make installation even easier.

The bottom ring that goes inside the tank has a split in the ring so you can get it into the tank. This ring allows the top and the ring to bolt down without deforming the fuel tank or fuel cell. The upper ring assembly is CNC cut from 1/8-inch-thick steel and the inner split ring is CNC cut from 14 GA steel. The top ring is powder coated black and the bottom rings are shipped out bare metal. The kit also includes bolts and nylon washers.


Specifications

Note:
