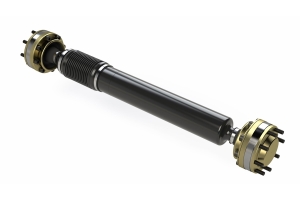

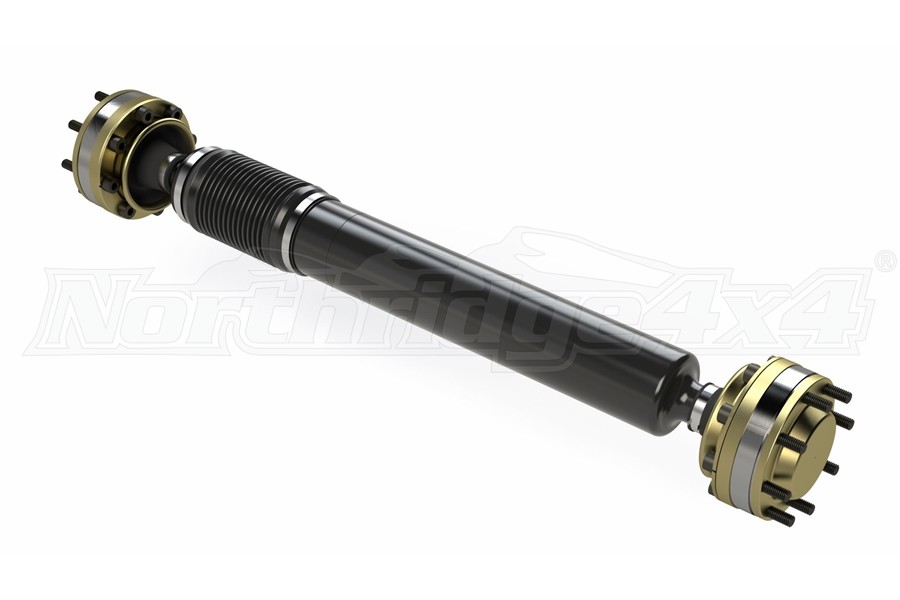

Teraflex Rzeppa High-Angle CV Driveshaft Rear - JK 2dr 2007-11
Teraflex Rzeppa High-Angle CV Driveshaft Rear - JK 2dr 2007-11

Teraflex Rzeppa High-Angle CV Driveshaft Rear

JK 2dr 2007-11

Write a Review | 1 Q&As
Part # 4607302We price match! Call 866-601-5340!
$949.99

Out of Stock. Average time to ship: 1-2 business days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Features & Product Details

TeraFlex High-Angle Rzeppa CV Driveshafts combine the smooth torque transfer of a CV joint with the high-angle misalignment of a traditional U-joint. This unique Rzeppa CV Joint and high-angle boot are designed for the extreme angles associated with larger lift heights.

Laser welded 2-3/8” carbon steel tubing results in superior strength and longevity. Precision construction reduces harmonic vibration for smoother high RPM dynamics. These driveshafts are zeroed out during final assembly for a true centric assembly without the need for balance weights.

Unlike a U-joint style driveshaft, the Rzeppa CV joint does not experience a significant loss in strength due to high angles. Our innovative features address all the shortcomings found in the factory style driveshaft without sacrificing the benefits. This is especially important on JK Wrangler/Unlimited models with 3”+ lift.

Fits:

• 3-6 lift

Product Notes

  • CV Driveshafts require TeraFlex JK: High-Angle Rzeppa CV Yokes – listed below.
  • Features & Benefits:

    • Rzeppa style joint allows for smooth torque transfer regardless of joint angle
    • High-angle CV housing design supports larger lift heights and maximum articulation w/out joint damage
    • Laser welded 2-3/8” carbon steel tubing for superior strength and longevity
    • Precision construction reduces harmonic vibration for smoother high RPM dynamics
    • Computer-controlled dynamic balanced as an assembly w/ yokes to eliminate vibration
    • Torque and fatigue tests are 3x higher than OE and aftermarket steel driveshafts
    • Rzeppa and sealed boot slip spline section provides years of maintenance-free operation
    • Black Trivalent Zinc Chromate Coating for improved corrosion resistance
    • Double hobbed CNC spline surfaces meet OEM strict tolerance specs
    • Blue PA11 anti-friction coating applied to splines ensuring 360-degree coating thickness for long life and low maintenance
    • Red Line full synthetic high-temperature resistant CV grease resists liquifying for consistent performance across all temperatures

    High-Angle Rzeppa CV Yokes:

  • Transfer Case Yoke – Front or Rear (# 1959110)
  • Axle Pinion Yoke – Front – 24-Spline (# 1959210)
  • Axle Pinion Yoke – Rear – 24-Spline (# 1959310)
  • Dana 60 Pinion Yoke – Front or Rear – 29-Spline (# 1959400)
  • Product Video

    Specifications

    Brand: Teraflex
    Mounting Type: Yoke
    Mfgr. Warranty: 2 Year Limited Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    • Q: Work with small lift ?  WDT312 months ago

      Will this rear driveshaft work on a 2008 JK Rubicon with an OME 2" lift? The up travel is same as stock, the down travel is an extra 1".
      • 0 of 0 people found the following answer helpful

        A:  Per the mfg, this will work on 3 to 6 inches of lift, so this will not work for you. I'd look at the Adams 1310.

        Northridge Chris @ Northridge4x4 12 months ago

        Was this answer helpful?
