sPod 8 Switch Panel and SE System w/TouchScreen
TJ
Product Resources
Features & Product Details

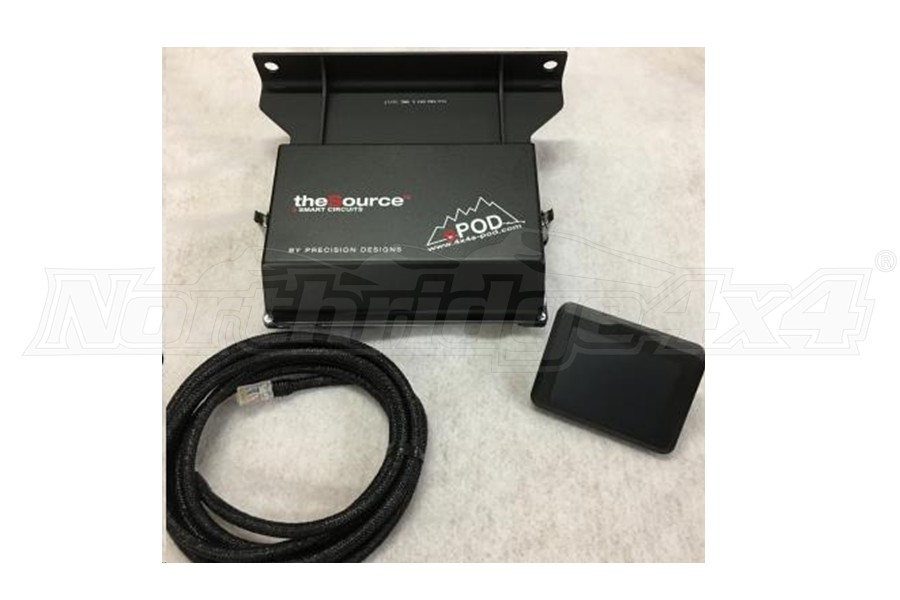

Jeep TJ 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ. sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100% manufactured in the United States since 2006.
sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.

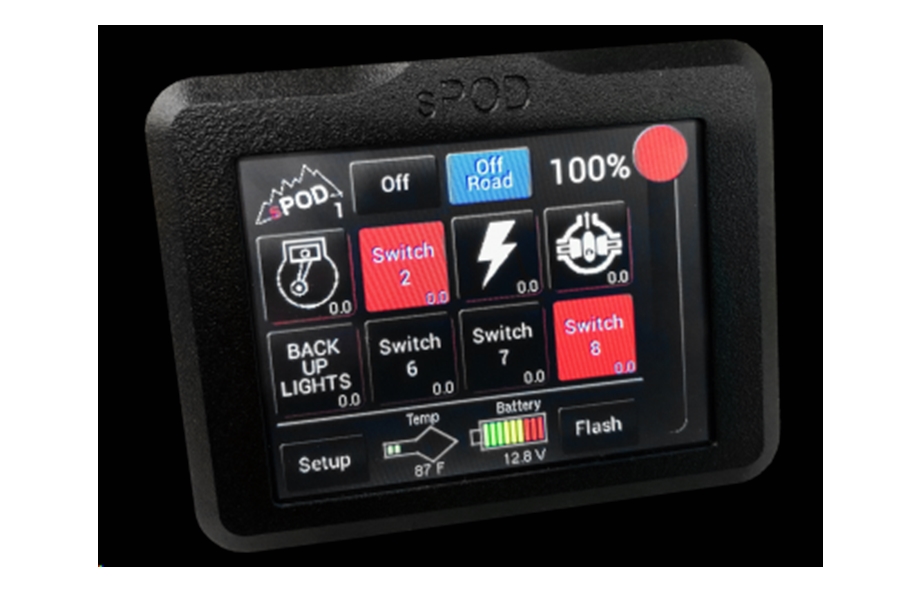

The touchscreen controller is small but packs a BIG punch! (3-3/4w X 2-7/8h X 5/8 thk) The control module is a 3.5-inch LED backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case with a 1 RAM mount installed on back panel. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.
Note: If you have a 4 cylinder motor, please email us and let us know!
!!! NOTE !!! The touchscreen is NOT weather resistant and should NOT be exposed to the elements. Water or any liquids will damage the touchscreen and void the warranty.
Benefits:
Each switch is programmable for:
Touchscreen Control Module Features:
Options / parts required:
RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-PSA A-Pillar Mount with 1 inch rubber coated Ram Ball. (For fixed surface mounting and interconnect between double socket arm)
RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-BT Add-on Bluetooth module to enable the system to be controlled by an iPhone, iPad or iPad Mini (Optional)
Note: Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.
The primary reason for the Bluetooth integrated into the Touchscreen is for programming purposes, and not for remote control due to the limited range.
Touchscreen housings are precision machined billet aluminum which contribute to the distance limitations.
Ranges may vary from 5 feet up to 15 feet depending on location of the Touchscreen, the surroundings, phone type, phone cover and many other variables.
