SPOD SE 8 Circuit System HD panel TJ Source Bracket (Part Number: )
SPOD SE 8 Circuit System HD panel TJ Source Bracket (Part Number: )
SPOD SE 8 Circuit System HD panel TJ Source Bracket (Part Number: )
SPOD SE 8 Circuit System HD panel TJ Source Bracket
TJ
Write a Review | Q&A
Part # 8-800-HD-TJ
$750.00

Product will ship from manufacturer, average time to ship: 1 business days

Product Resources

Features & Product Details

The system utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100% manufactured in the United States.



What's Included?


  • SourceSE w/ mounting bracket and necessary hardware
  • HD Switch Panel w/ mounting bracket (see picture) and necessary hardware (other universal mounting options are available)
  • Legends (sheet of 72 standard switch labels)
  • Installation Instructions

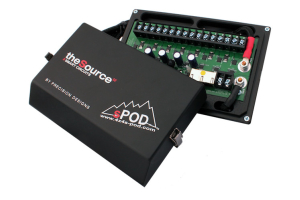

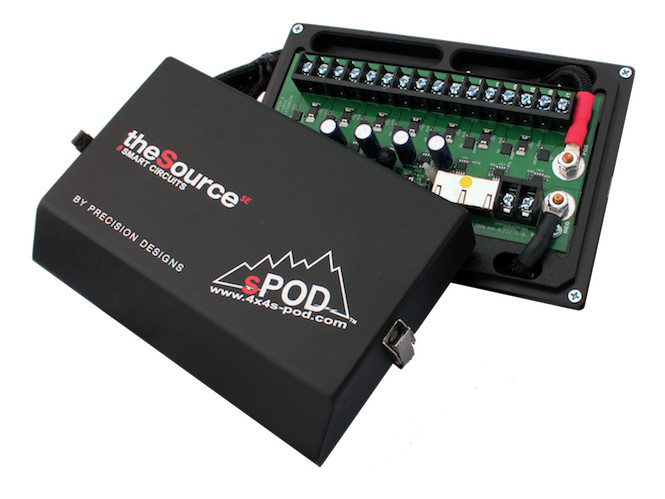

  • SourceSE Features:


  • Fully programmable Digital controlled system.
  • Eight circuits rated @30amps @12.5vdc per circuit that are “End-User” friendly terminal block for attaching accessories.
  • Expandable (Daisy Chained selectable) to up to 32 circuits with simple plug-n-play features!
  • Low voltage cutoff (LVCO) battery protection circuit has spec voltage cutoff at 11.2 VDC with a two-minute delay before shutting down the SourceSE. This is useful when you have accessories turned on while the vehicle is not running. When the vehicle starts, the accessories can then be used again. The low voltage battery protection circuit can be turned off with the DIP switches.
  • No more worrying about what rated fuse to install! The system will protect from 1.5 amps to 30 amps automatically. The SourceSE incorporates a failsafe self-healing fault protection system. Fuses have been eliminated (for all accessory outputs) and replaced with current-sensing MOSFETs controlled by a microprocessor. This is a great feature for low maintenance and troubleshooting
  • Shield receptacle for the optional Bluetooth module for a plug-n-play end-user upgrade. This creates a scalable platform for future optional enhancements.
  • One single ATM mini-style fuse for LVCO protection and reset.

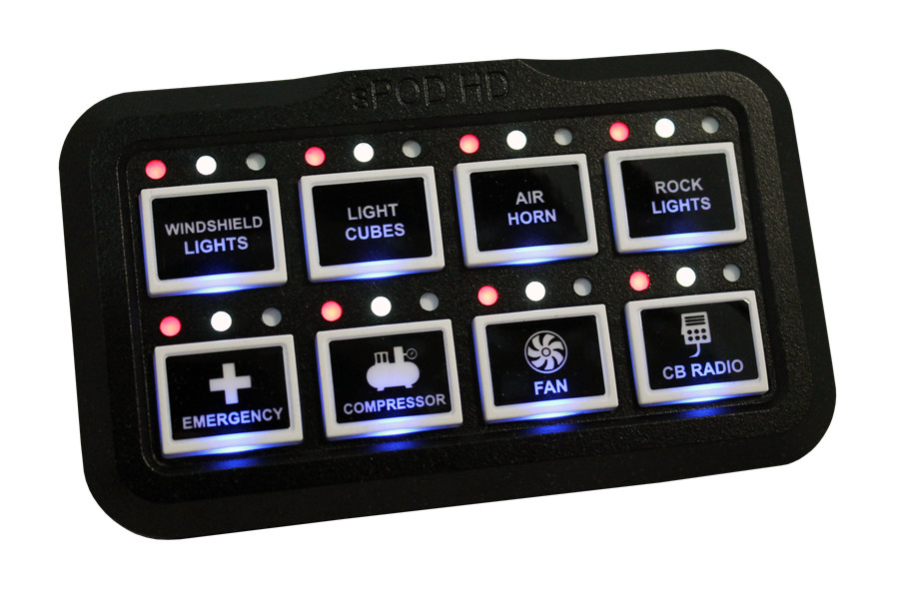

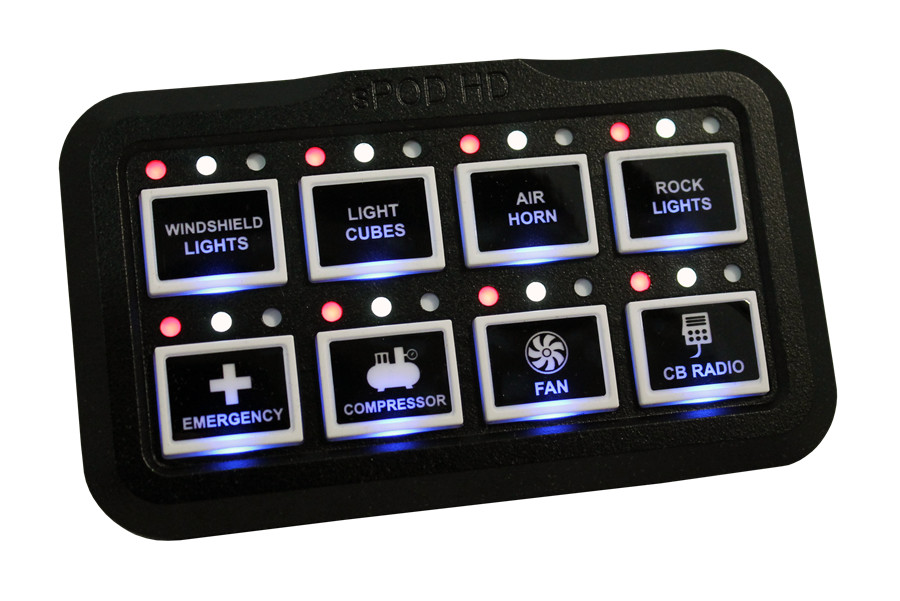

  • HD Switch Panel Features:


  • Encased in an aluminum billet machined housing, powdercoated black, utilizing tactile switches encapsulated in silicone.
  • Silicone Buttons with positive touch feedback.
  • Panel is designed to withstand the harshest environments with all weather conditions taken into account.
  • Compact in size: 2-7/8”W x 4-7/8”L x 1/2” Thick (smaller than an iPhone).

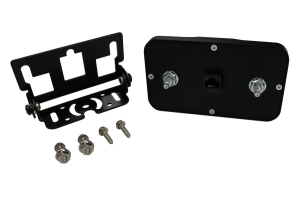

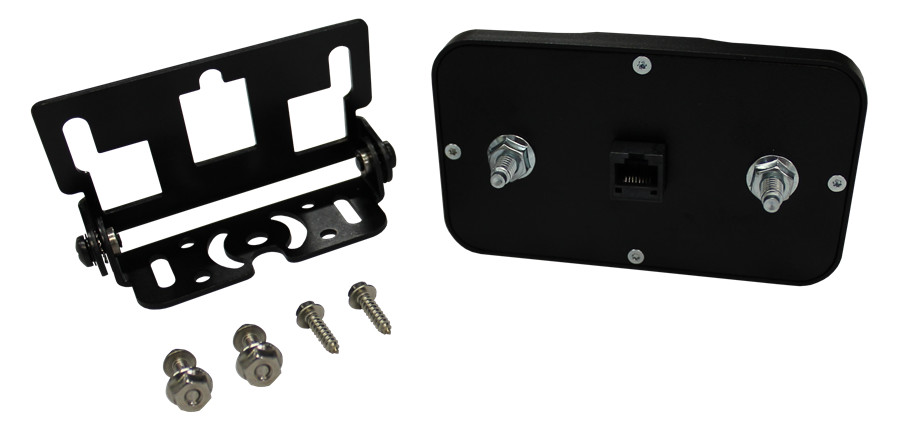

  • Universal back with two pressed-in 1/4-20 studs x 5/8” inches long for flat mounting.
  • Standard universal articulating mount for a multitude of mounting options.
  • One standard RJ45 jack on back for communication cable between HD panel and the Source.
  • HD can be located up to 100 feet from the Source using standard CAT-6 Ethernet cable.
  • Built in Bluetooth LE allows you to program and control our system with iPhones, iPad, iPad Mini, Android running Kit Kat or older OS (not compatible with Android 7.0 or newer as of yet) sPOD HD app. (free download)
  • Each switch programmable for dimming, flash, momentary, strobe, and switch linking (program any switch to be a master to control other switches).
  • All 8 switches are backlit.
  • Adjustable timer to turn backlight off and a simple touch on any switch to reactivate.
  • Quickly turn backlight off by holding 2 designated buttons.
  • Backlight color & intensity can be changed to any color to match vehicle interior dash lighting.
  • Legends can be applied (comes standard with one sheet of 72 legends).
  • Each switch has 3 status lights: Red (left) = On, White (center) = Flash/Strobe active, Blue (right) = Active visual feedback when button is pushed.
  • Status lights can be dimmed.
  • Additional HD smart controller can be added for different locations.
  • One HD smart controller can be programmed to control up to 32 circuits
  • HD can run in conjunction with our SE Touchscreen, Bluetooth and SE 8 Switch panel.


  •

    !!!!NOTE!!!!!
    Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.

    Specifications

    Brand: sPOD
    Capacity: 8 Switches
    Color: Multi Options
    Hardware Included: Yes
    Includes Switches: Yes
    Location: Dash
    Wiring Included: Yes
    Mfgr. Warranty: 1 year Limited
    Condition: New Product
