- 3-3.5in Lifts >BDS Suspension 3in Suspension Lift Kit - JK 4DR 2012+

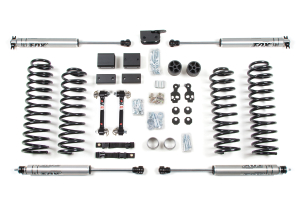

BDS Suspension 3in Suspension Lift Kit
JK 4DR 2012+
Features & Product Details
The BDS Suspension 3in Suspension Lift Kit has been put together to improve the off-road dynamic of your vehicle. This is a 3" lift to allow for better clearance, and once installed users will be able to run a 35 X 12.50" tire on a 16X10" wheel with a 4-1/2" backspacing. Note that a larger wheel up to a 20X9 can be used as long as it has a 4-1/2" backspacing.
Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. In the rear, sway bar drop brackets are included instead of longer sway bar links to allow the use of a factory wheel and larger tire. To correct the rear axle shift from the lift, a rear frame mounted track bar relocation bracket is included. The kit comes standard with NX² series custom valved shock absorbers for a smooth ride.
Estimated installation is going to be around 6 hours. However, once installed you will be able to take your vehicle further into off-road which will allow for more clearance for travel and articulation. This is a kit pieced together and ready to rock without having the hassle to piece together everything you need to use your vehicle like it has been intended to.
