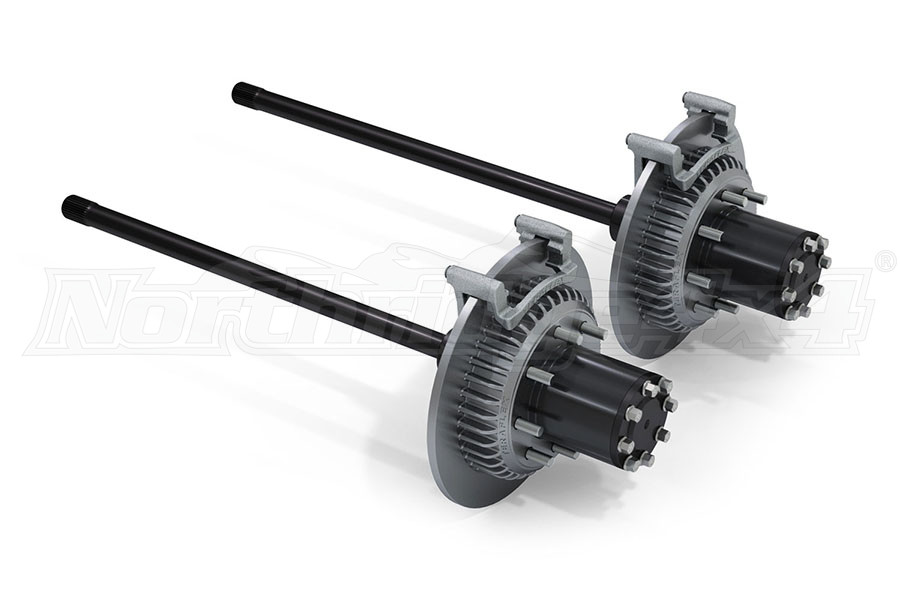

Teraflex JK Rear 8-Lug Full Float Conversion Kit - Big Rotors
JK
Product Resources
Features & Product Details
The factory rear JK axle and wheel bearing assembly naturally lends itself to bent axle shafts. Heavy wheels and oversize tires, high speed impacts, low range twisting and binding take their toll on factory style axle shafts. Even an upgraded 35 spline conversion shaft is subject to these same design limitations. The solution is the TeraFlex JK rear full float conversion. By utilizing a two wheel bearing design, vehicle weight is spread evenly across the forged 4140 chromoly spindles. Readily available industry standard bearings are oil bathed and require zero maintenance. Because the axle shaft no longer supports any vehicle weight, the case hardened 4340 chromoly shafts simply transfer the torque without the load stresses associated with impact and vehicle weight. All factory sensors are maintained and protected, and the OE park brakes as well as the calipers and pads are retained. TeraFlex 13.5” performance rotor and anchor bracket are included for increased and balanced braking.
This kit includes the TeraFlex performance big rotor kit
Fits all JK Wrangler & Unlimited rear non-Rubicon Dana 44 axles with 30 spline axle shafts.
CLICK HERE FOR INSTALL INSTRUCTIONS
