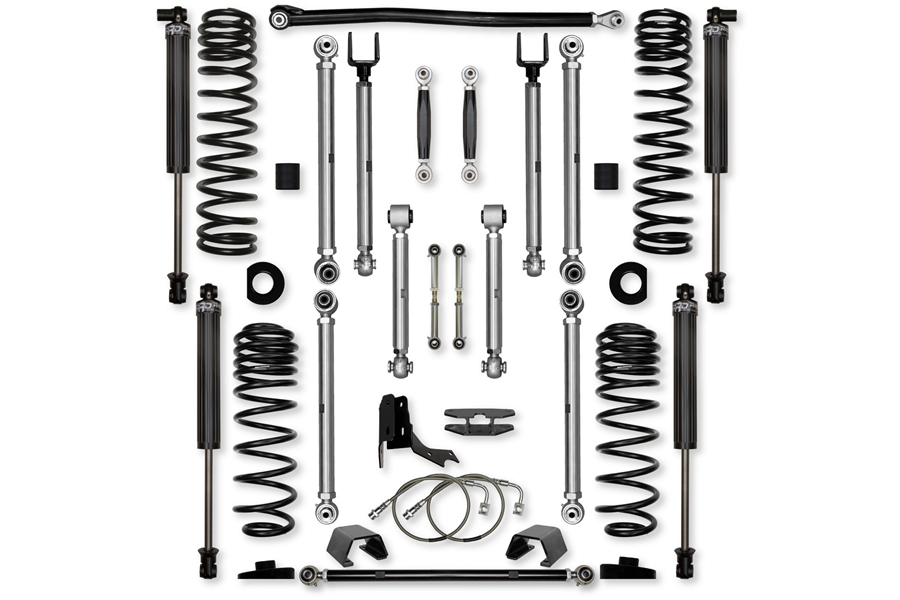

Rock Krawler 4.5in X Factor Pro 'No Limits'  Aluminum Stage 1 Lift Kit w/ RRD Shocks - JT

Rock Krawler 4.5in X Factor Pro 'No Limits' Aluminum Stage 1 Lift Kit w/ RRD Shocks

JT

Rock Krawler 4.5in X Factor Pro 'No Limits'  Aluminum Stage 1 Lift Kit w/ RRD Shocks - JT
INCLUDED IN PRICE
$3,857.72
20%
Off
(Price as configured)

You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # JT45PNL-S1We price match! Call 866-601-5340!
We Price Match
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler Suspension JT 4.5 inch X-Factor PRO "No-Limits" Mid-Arm System is specifically designed for Rubicon owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. ALL 8 CONTROL ARMS ARE MADE FROM SOLID 7075 ALUMINUM, AND COME STANDARD WITH ALL BENEFITS OF X-FACTOR BUILT RIGHT IN. Our system proves its durability and off-road performance every time you hit the streets or trail! "No-Limits" comes from the inclusion of our front sway bar links specifically designed for use with the factory electronic sway bar disconnect feature found standard in your Rubicon Gladiator! The sway bar links themselves come with factory sized hardware, a CNC machined billet aluminum center section, and Made in USA heim joints from FK bearing, once installed, just press the button and hit the rocks! Our industry leading, X-Factor Series, adjustable upper and lower control arms offer a total of 95 degrees of misalignment when paired with our Pro-X Krawler Joints and Adventure Series joints.

The inherent bind in a factory JL/JT control arm is greatly reduced. Our maintenance free "Adventure Series" joints are found in your front and rear control arms at the frame connection, while our "PRO Krawler Joints" tie in your axle connections. With so much adjustability, it allows you to precision tune the JT's caster and pinion angle front and rear. Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE RATE front coils/QUAD RATE rear coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

System Benefits:

  • Complete bolt in system
  • Excellent highway ride and handling
  • The best off-road ability of all Mid Arm Systems
  • Improved rear roll center
  • Tuned Triple Rate Coils
  • Spring Correction Seats
  • Vehicle lean correction
  • Upgradable to RK Longarm System
  • Best Technical support in the industry
  • Jeep remains level on all 4 corners
  • Lifetime Warranty Coverage
  •

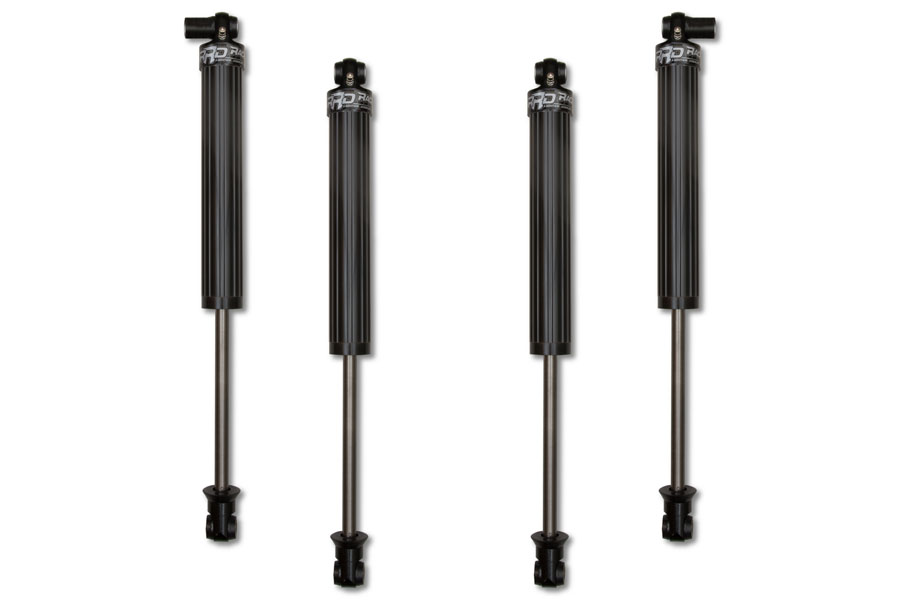

    RRD Spec'd 2.25" Shocks: IN-HOUSE Designed and built - 2.25" Fluted aluminum construction, hard coat military grade black anodizing, 7/8" shaft, IFP (Internal floating piston), better bushings to achieve better misalignment, fully serviceable and rebuildable



    Wheel Fitment:

    Sport and Overland Wheel Fitment Recommendations

    37”/38” Tall Tires - Recommend 3.5” of Back Spacing

    Rubicon Fitment Recommendations

    37” Tall Tires – Recommend 4.5” of Back Spacing

    40” Tall Tires – Recommend 3.5” of Back Spacing



    Tire Fitment:

    Sport and Overland with Full OEM Fenders

    37” Tall Tires (3” Bump Stop Height Recommended)

    Sport and Overland with Trimmed or High Lined OEM Fenders

    38” Tall Tires (3” Bump Stop Height Recommended)

    Rubicon with Full OEM Fenders

    37”/38” Tall Tires (3” Bump Stop Height Recommended)

    Rubicon with Trimmed or High Lined OEM Fenders

    40” Tall Tires (3” Bump Stop Height Recommended)



    General Notes:

  • All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
  • If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
  • If building an "overland style" or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
  • We recommend a new front driveshaft if you plan to off-road routinely. (Adam's Driveshaft, Tom Woods, J.E. Reel)
  • Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard
