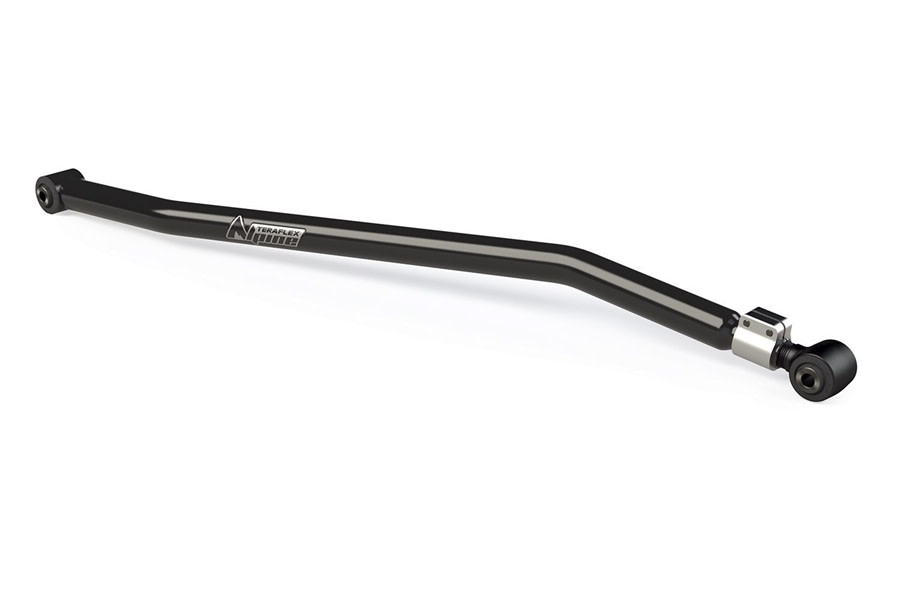

TeraFlex JT: Alpine Long Arms and Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 3–6” lifts. High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality. MUST be used with Long Arm Bracket Kit — NOT INCLUDED. Can be added to any existing suspension lift.
Features and Benefits
Alpine Control Arms (Short / Long):
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality
JL / JT: Long Control Arms (Alpine/IR) and Long Arm Brackets:
Adjustable Long Control Arms and Long Arm Brackets (NOT INCLUDED) balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6” lift kits
Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
On higher lifts, bolt-on Long Arm Brackets (NOT INCLUDED) reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms
Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance
Front Long Arm Suspension Crossmember (NOT INCLUDED) provides additional strength
Install and drive simple bolt-on installation — no welding required
Adjustable Control Arms (all):
Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
Full range of movement will not restrict articulation or flex off-road
Zero maintenance forged threaded joints for smooth quiet flex
Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
TeraFlex Lifetime Warranty against defects
Specs:
Lift Height: 3–6”
Control Arm Specs:
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 23-3/4”
Min. Length: 47-3/4"
Max. Length: 49"
Bolt – Both: 16mm
Notes:
• Adjustable Long Control Arms MUST be used w/ Long Arm Bracket Kit (NOT INCLUDED.)
• REQUIRES cutting/removal of factory control arm bracketry to install Long Arm Brackets.
• JT: Long Arm Brackets are NOT COMPATIBLE w/ all rock sliders. Some rock sliders may require disassembly for install.
• Alignment REQUIRED.
• Available RockGuard Transmission Skid Plate & Long Arm Crossmember Reinforcement protects your transmission and reinforces your Front Long Arm Suspension Crossmember. RECOMMENDED.
